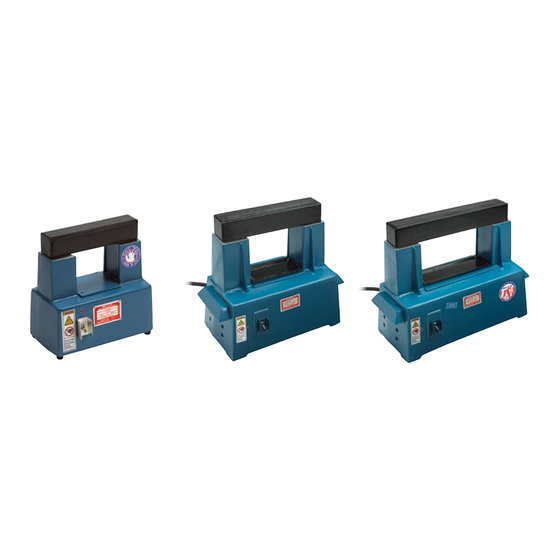

- Page 1 Induction Bearing Heaters User Manual SC110D, SC110V, BC and BCS models READ THE MANUAL AND SAFETY INSTRUCTIONS Check all parts for possible transport damage. If any damage is apparent, inform carrier immediately. besseytools.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions ........................2. Application ............................SC110V, BC and BCS Models SC110D Model Bearing heater operating conditions Principle of Operation 3. Installation ............................4. Cleaning and Maintenance ....................5. Pyrometer ............................1. Safety Instructions These indicate potential risk of serious personal injury WARNING! These indicate danger of damaging the heater or workpiece CAUTION! -
Page 3: Application
Safety precautions The user should have an appreciation of the contents of this manual, and be familiar ■ with safe workshop practices. Ensure that the machine operates at the correct supply voltage. If the heater has been ■ supplied without a plug the connection to the power supply should only be made by a suitably qualified person. - Page 4 It is important to define what the temperature differential shall be for mounting a specific bearing safely. This will usually depend on the diameter of the bearing. Use a pyrometer (such as the Model HH11 provided by BESSEY , which includes a good ®...
-
Page 5: Bearing Heater Operating Conditions
2.2 Application (SC110D) The SC110D is a similar version to the SC110V, but has a temperature control mechanism integrated into the unit. Operating the SC110D Place crossbar/yoke through bore of ■ bearing (using the largest bar that fits). Place crossbar/yoke on top of bearing heater posts - making sure the crossbar/yoke is ■... -
Page 6: Installation
To understand the process in greater detail: Induction heating works when an alternating electrical current is applied to the primary of a transformer creating an alternating magnetic field. According to Faraday’s Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced. -
Page 7: Cleaning And Maintenance
5. Pyrometer HH11 handheld thermometers are a quick & easy method of verifying bearing temperatures when using bearing heaters supplied by BESSEY Tools. ® The unit is designed to use an external “Type K” thermocouple as temperature sensor and features a front panel offset adjustment, maximum reading and display hold functions and is °C/°F switchable. - Page 8 BESSEY ® Join us on... facebook.com/BesseyToolsNorthAmerica twitter.com/BesseyTools youtube.com/user/BesseyTools besseytools.com Sign up to receive our e-newsletter at info@besseytools.com BESSEY Tools North America ® 1-800-828-1004 · Fax (519) 621-3442 REV.04.2018...
