Summary of Contents for Analogue Super Nt

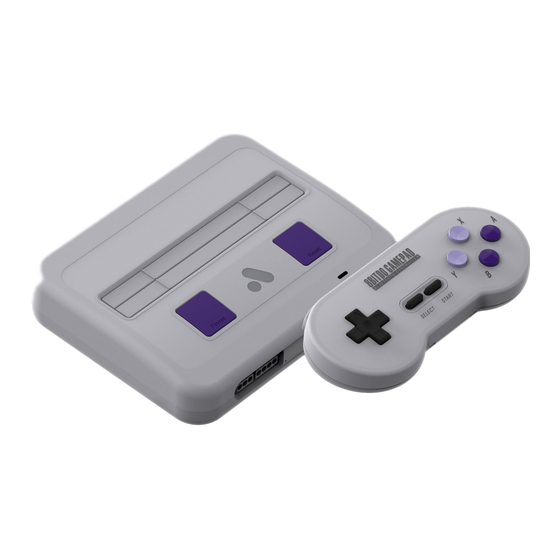

- Page 1 Analogue Super Nt Reference Manual analogue.co analogue.co V4.7 March 2019...
- Page 2 Analogue Celebrate & explore the history of video games with the respect it deserves. analogue.co V4.7 March 2019 2 / 18...
- Page 3 Engineered with an FPGA. No emulation. 1080p. Zero lag. Total accuracy. — Analogue Super Nt The Super Nt is not a plug n’ play toy. It is the definitive way to explore Nintendo’s 16-bit era. — Super Turrican Director’s Cut (digital) Compatible with the 2,200+ SNES and Super Famicom game cartridge library.
- Page 4 To start using your Super Nt, insert the AC adapter into the power input and plug in a HDMI cable into the respective input on your TV, monitor or projector. Press the power button on your Super Nt with or without a game cartridge inserted.
- Page 5 Press pairing button on Retro Receiver to pair new controller Wait until both LEDs are solid blue Your controller is now paired D-Pad Button Pad DOWN + SELECT START (access menu) (hold to power on/off controller) Pairing Button analogue.co V4.7 March 2019 5 / 18...
- Page 6 Plug one end of your HDMI cable root directory. Insert your SD card into the SD card into your Super Nt slot on your Super Nt and turn the power on. The firmware update process will start Plug the other end of your HDMI...
- Page 7 Allows you to adjust the video, audio or system controller as a standard controller) options, save settings and view the credits. Tools Allows you to enter Game Genie-style cheat codes. analogue.co V4.7 March 2019 7 / 18...
- Page 8 Buffer Mode (not shown unless iii X Advanced Mode is enabled) iv Y Fully Buffered Cancel/Back Key Zero Delay Single Buffer iii X iv Y Color (not shown unless Advanced Mode is enabled) Disable Hotkeys analogue.co V4.7 March 2019 8 / 18...
- Page 9 50 resolutions anyway. Almost all European displays support 60p. The Super Nt will start up with the highest resolution and frame rate your monitor supports unless you select a lower resolution setting and save the settings.
- Page 10 512 (2x), 720 (1:1), 768 (3x), 822 (8:7), 877 (4:3 for 16:9), 975 (4:3 for 16:10), 1024 (4x), 1280 (5x) Minimum/Maximum Height (Vertical Pixels) : 480/720 Vertical Presets : 480 (2x), 600 (2.5x), 720 (3x) Horizontal Position : 0-128 Vertical Position : 0-64 analogue.co V4.7 March 2019 10 / 18...
- Page 11 Video Settings Recommended Scaling Settings Cropping If you are outputting your Super Nt to a 1080p or You can use the sliders to crop each edge of the 4K native display, you should use the 5x vertical screen by up to 32 pixels.
- Page 12 It can also eliminate shimmer in scrolling backgrounds on LCD displays. If you are using an The 64 Sprite Tiles option allows the Super Nt to integer horizontal or vertical scale, you should not display 64 sprites per line instead of the 32 that the need to use these options.
- Page 13 This is mode avoids tearing at the cost of latency. in limited RGB versus full RGB because limited RGB The Super Nt must render at least 1 frame ahead tries to cover the same color space as full RGB but of the game’s internal rendering to stay ahead.
- Page 14 (0db). Try this option if you are not hearing any sound or hearing clipping from the Super Nt. Cartridge Audio Enable – Use this option to enable expansion audio from the Super Game Boy, Super Game Boy 2 or sd2snes with games supporting MSU-1 audio.
- Page 15 Highlight Style – Used to indicate the current menu Super Nt to get the menu working again. This is option useful if you are trying for a speedrun and do not want to activate a menu or a reset by accident.
- Page 16 Launch System Timing – The Game Genie and LED changes colors, slider settings range from 0-31. SNES PowerPak require this option to be enabled when those devices are plugged into the Super Nt’s Pattern Position – Determines the currently cartridge slot.
- Page 17 Save/Clear Settings Save Settings – Saves menu settings to the Super Nt’s internal flash memory Restore Factory Defaults – Restores Factory Defaults, so take notes of your settings prior to updating. + special thanks to great hierophant analogue.co V4.7 March 2019...
- Page 18 Now you’re playing with Analogue. analogue.co analogue.co V4.7 March 2019 18 / 18...
