Summary of Contents for Olitech EASY MATE+ OLT2914
-

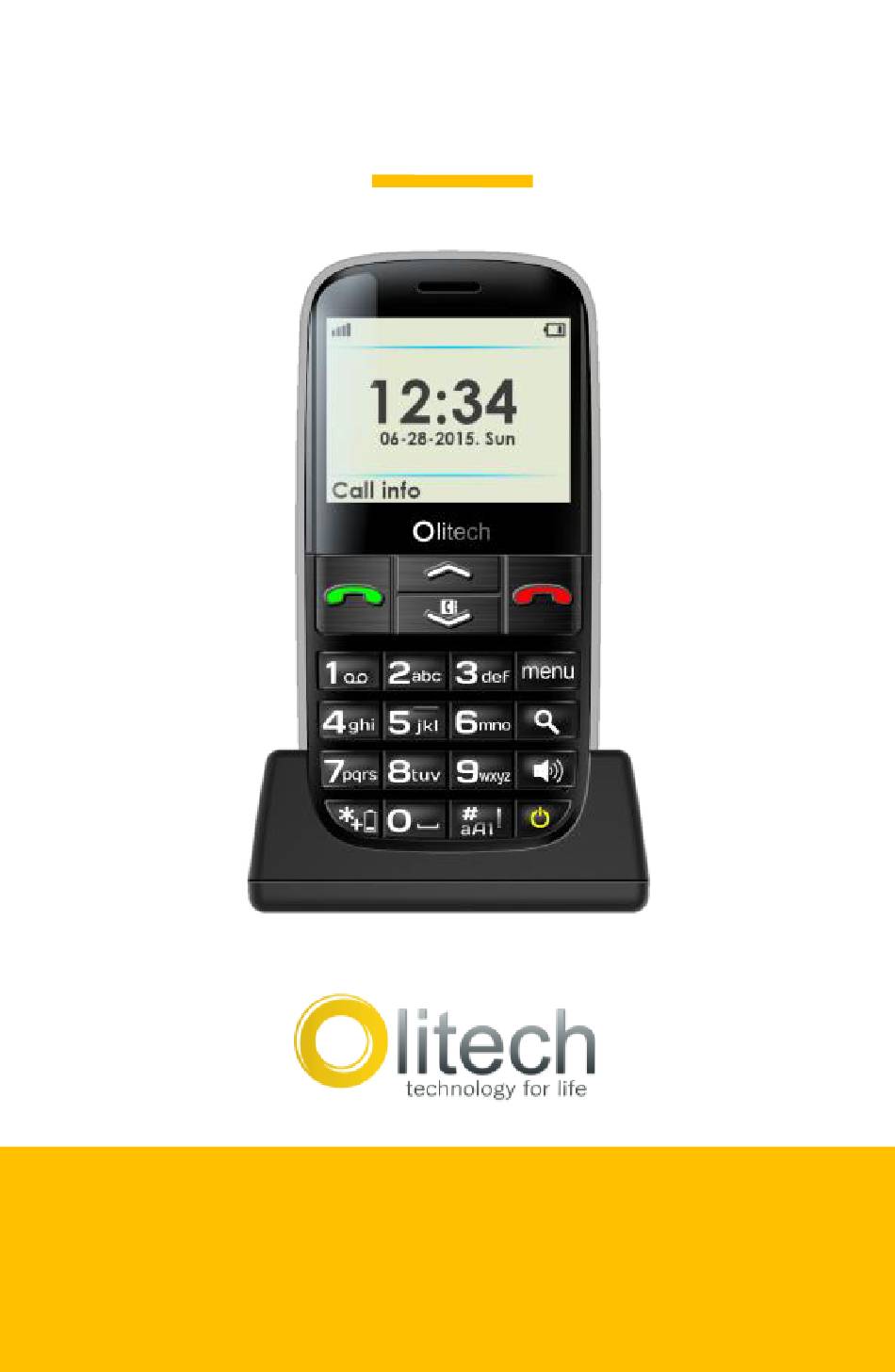

Page 1: User Manual

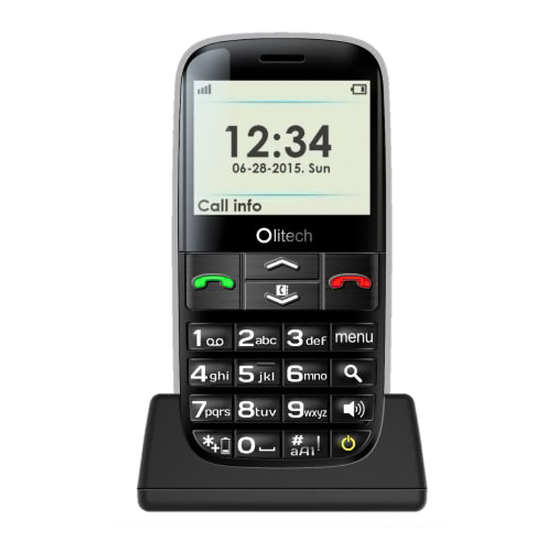

EASY MATE User Manual Model number: OLT2914... -
Page 3: Table Of Contents
Olitech Easy Mate+ User Manual Table of contents Key descriptions……………………. .. 4 Display icon descriptions……...……6 Specifications ........8 Setting up the phone ......9 Calls……………………………………18 Messages…………………..…………20 Phonebook/Contacts…………...…..24 Emergency/SOS button…………….27 Additional features………………….32 Settings………………………...……..36 USB Data Cable ......43 Troubleshooting ......44 Safety information ...... -
Page 4: Key Descriptions
Key descriptions Keys Explanation Green Button: Used to answer or confirm call Allows user to select options/ proceed through Menu Red Button: Used to end call Selects “Back” when in Menu Arrows: Used to navigate Menu When on home screen: Down arrow provides shortcut to Contacts Up arrow provides... - Page 5 Volume Buttons: Used to change volume Power Key: Press and hold for 3 seconds to power on / off Hash (#) Key: Used to change input methods (capital/lower case when typing). When on the home screen, press and hold hash key for 3 seconds to activate the silent mode.
-
Page 6: Display Icon Descriptions
Hands Free/Loud Speaker: Press to activate the loud speaker function during call. Number Keys: When pressed momentarily, each number key types their designated number or letter as displayed on the key. When “1” is pressed for 3 seconds it links to voicemail. When 2-9 are pressed for 3 seconds they dial their allocated speed dial number. - Page 7 (no ringtone or vibration for incoming calls/text messages) Phone will vibrate then ring for incoming calls/text messages Phone will vibrate and ring for incoming calls/text messages Headphones are plugged in Phone is playing music You have an unread multimedia massage (MMS) You have an unread text message (SMS) Alarm is on...
-
Page 8: Specifications
Specifications Dimensions: 120 mm (height) X 59 mm (width) X 13.3 mm (depth) Battery capacity: 1000mAh Standby duration: 225 hours When in service only. Ongoing searching for network/service significantly reduces standby time. Call duration: 3.8 hours Call duration (battery life) can differ depending on network and location. -
Page 9: Setting Up The Phone
Setting up the phone Insert SIM card Step 1 - Remove the battery cover on the back of the phone. To do so, find the small recess in the top left corner of the phones back cover. There is a small raised marking on the back cover above the camera lens to assist locating the small recess (top left of... - Page 10 Step 3 - Insert the SIM card (standard size) with the gold chip facing down, oblique edge to the bottom right. The SIM card should be positioned under the large horizontal silver guard and not be inserted further then the black barrier on the upper edge of the SIM slot.
- Page 11 maximum capacity MicroSD card/memory card that should be used with this phone is 16Gb. Inserting the MicroSD card: When the back cover and battery are removed, the location for the MicroSD card can be seen in the top right corner of the exposed phone interior.
- Page 12 Precautions when inserting SIM card and MicroSD card: 1. Keep the SIM card and MicroSD card out of reach of children. 2. Do not touch the gold chip on the SIM card/MicroSD card. 3. Keep the SIM card/MicroSD card away from magnets. 4.
-
Page 13: Insert The Battery
Insert the battery Warning：Do not remove battery when the phone is powered on or when the phone is connected to the charger. Failure to comply may result in damage to the phone and attached accessories. Step 1 - Remove protective tape from conductors on top right edge of battery. - Page 14 are located on the bottom border of phone cover, insert these into the two holes at the bottom of the back opening). Once the bottom of the cover is in place, press the top of the cover into place. Ensure all four corners of cover are in place prior to use.
-
Page 15: Charging The Battery
Charging the Battery Only use the Olitech battery and charger with the phone. Failure to comply with this may result in damage to the phone and loss of warranty. Do not attempt to insert the charging cable into the headphone socket. This could damage the phone/cable. - Page 16 Charge with the cradle charger Connect the cradle charger to the wall charging plug using the USB charging cable. Connect the wall charging plug to the power point and turn power point on. Place/sit the phone into the cradle charger (see image on front cover of manual).
- Page 17 the screen and the star key [*] will flash. If the phone’s battery is fully exhausted prior to charging it may take several minutes for these indicators to be displayed. If the phone is powered on, the battery charge level is seen on the LCD screen via the battery icon and the star key (*) flashes.
-
Page 18: How To Make A Call
Calls How to make a call 1. Enter telephone number with the numeric keys. 2. Press green button to connect the call. The call recipients name or phone number will be displayed on the screen for the duration of the call. -
Page 19: Missed Call
3. To reject the call, press the red button. Hands Free/Loud Speaker 1. If you wish to use the hands free/loud speaker function, once the call is active, press the hands free/loud speaker button on the main keypad. 2. To return to handset mode press the hands free/loud speaker button again. -
Page 20: Writing Messages
Messages With your phone, you can write and send text messages (SMS) Multimedia Messages (MMS). The messaging feature of this phone is accessed through pressing the Menu key then selecting Messaging. Writing messages 1. To write a text message or multimedia message, press the Menu key ... - Page 21 3. If you chose to send a Multimedia message (MMS), in the options, you can add pictures, audio or video files to the text. Please note: The attachable/receivable file size for MMS is very limited. Any high definition picture, sound or video files may not be successfully sent/ received if they are too large.
- Page 22 Receive and view messages When you receive a new message your phone will notify you with a sound/ ringtone and/or vibration (pending your “1 settings). message message” is also displayed on the screen. Press the green button to view the new message. Once a message is read, unless deleted, it can be viewed in the Inbox ...
-
Page 23: Sent Messages
Sent messages Sent messages folder Messaging contains all successfully sent text messages and multimedia messages. Message storage capacity The phone is capable of storing up to approximately 250 messages. This includes messages across all folders (Inbox, Draft, Outbox, Sent messages). If the message folders are full, it blocks new/incoming messages... -
Page 24: Edit Contact
Phonebook/Contacts Saving new contacts to the Phonebook 1. Press the Menu key Phonebook Add new contact Select To phone. 2. Use the keypad to enter the contact’s name, phone number and email address (optional). To save the contact, select “Options” then select “Save”. -
Page 25: Speed Dial
select Edit. Edit as desired. Search for a saved contact Contacts in the Phonebook are sorted alphabetically. To search for a saved contact: 1. Press the Menu key Phonebook 2. Start typing the name of the contact. Only the contacts starting with the typed letters appear in the displayed list (eg: if “Da”... - Page 26 settings Speed dial Set numbers. 2. Select which number key you wish to allocate to a contact. The Contacts list will then open. Scroll through and select the desired contact. Once selected, contact is then allocated to your chosen speed dial key.
-
Page 27: Emergency/Sos Button
Emergency/SOS button This phone is fitted with an Emergency/SOS button. Once, activated and programmed, you can quickly call for assistance by pressing and holding the Emergency/ SOS button for 3 seconds. If you wish to use this feature, please carefully read all related information prior to use. - Page 28 2. Programming phone numbers to the Emergency/SOS button: To input numbers to be called when the Emergency/SOS button is activated, in the SOS setting menu, select SOS List. In the list there are four numbers to be programmed. phone number programmed against “1”...
- Page 29 desired message. What will happen when the Emergency/SOS button triggered? Once triggered, the following will occur: 1. Alarm signal: An alarm sounds immediately to alert people nearby. It will also sound between calling the emergency contacts on the SOS List. 2.
-
Page 30: Important Information
2. If the Emergency/SOS button is activated (SOS Key – On) and triggered (pressed and held for 3 seconds) but no phone numbers are programmed to the SOS List, it will automatically call 000. 3. Olitech accepts no liability for possible costs related to involuntary... - Page 31 Emergency/SOS button does not function correctly. 4. Olitech accepts no liability if the Emergency/SOS button is activated and triggered but does not connect to the phone numbers on the SOS List due to insufficient credit, no mobile service/reception or being on a foreign network.
-
Page 32: Additional Features
Additional features Multimedia To activate and use the Camera, Video Recorder or Voice Recorder, press the Menu key Multimedia Camera OR Video recorder OR Sound recorder. Camera To take a photo, when the Camera is open press “5” to capture the photo. To view photos taken on the phone, press the Menu key ... - Page 33 Sound recorder When the Sound recorder is open, press the star key (*) to start and pause recording. To stop recording, press the red button. To play recorded sound files, open the Sound recorder, press the green button to open Options, select “List”...
- Page 34 key (#) to turn it off. 2. For clearer sound quality, head- phones can be used. 3. The volume of the FM radio can be altered using the volume control on the left side of the phone. Alarm The Alarm can be accessed by pressing the Menu key ...
- Page 35 Bluetooth To enable Bluetooth, press the Menu key Settings Connectivity Bluetooth Power On. To pair a Bluetooth enabled device: 1. When in the Bluetooth menu, select My device OK (green button) to search for new device. Ensure your phone...
-
Page 36: Settings
Settings Profiles Profiles allows the user to modify what audio output/vibration is emitted upon a new notification/incoming phone call or when pressing the keypad (exception: talking keypad feature). To access Profiles, press the Menu key Settings Profiles, then select your option. -
Page 37: Phone Settings
Once a profile is selected, it can be activated, customised or reset. Phone Settings To access Phone settings, press the Menu key Settings Phone settings. The following settings can be selected and edited in Phone settings: Time and date Settings that can be set/edited include home city, time/date, format in which time/date are displayed and update with... - Page 38 Chinese and Hindi. Please note this only changes the written text on the LCD screen, not the voice output language. Preferred input method The input method can be changed in either the Phone settings or by pressing the hash (#) key when typing text. Input options include upper and lower case letters (all offered languages) and predictive text (English only;...
- Page 39 displayed on the screen, LCD backlight (general) and LCD backlight during calls. Themes The phone has two themes to choose from; white background with black text OR black background with white text. Flight mode Users can choose to what degree the phone connects to the mobile network.
-
Page 40: Call Settings
Query when power on: allows emergency calls only Call settings Within Call Settings the following can be modified: Call waiting, Call divert, Call barring and Advanced settings. Advanced settings include Auto redial, Call time reminder and Answer mode. Voice setting The phone offers various voice output options (English only). -
Page 41: Network Settings
repeated back. 2. Incoming number voice: phone number incoming caller sounded prior to user answering the incoming call. This replaces the ringtone. If Incoming number voice is “On” it will override the ringtone. Network Settings Within Network settings, the following details can be viewed/edited: Network selection, Service selection, Network information, GPRS connection, GPRS... -
Page 42: Restore Factory Settings
editing. Phone security: Phone lock on/off and editing. Auto keypad lock: the phone can be set to automatically lock the keypad after a specified time left dormant. Restore factory settings This feature restores default settings and erases all stored information including contacts. -
Page 43: Usb Data Cable
USB Data Cable The phone is supplied with a USB data cable. In addition to the cables use for charging purposes, it can also be used to link your phone and computer to view/transfer multimedia files between your phone and computer. To use this feature: 1. -
Page 44: Troubleshooting
Troubleshooting If you are experiencing difficulties with your phone, please consult following information prior to accessing after-sales support. The mobile phone will not power on Ensure the protective tape over the battery conductors has been removed prior to inserting the battery (see page 13 of manual). - Page 45 An error message is displayed when the mobile phone is powered on If the automatic lock function is enabled, you must enter the phone password before you use the mobile phone (default password 0000). If the PIN function is enabled, you must enter the PIN code every time you turn the mobile phone on (default PIN code 0000).
- Page 46 installed in accordance with the instructions provided this manual. Failure to connect to the network network signal weak/out of range. Try changing locations to see if the signal improves. The SIM card/network may be invalid/inactive. Please contact your network service provider. Failure to make an outgoing call ...
- Page 47 Poor call quality Please ensure the volume control is adjusted to your requirements. Please check the network signal strength. The other party cannot call you Check whether your mobile phone is switched on and connected to the network. ...
- Page 48 Short standby duration If you are in a low signal area or are moving in and out of signal areas and your phone is required search signal more frequently the battery life will decrease. phone active/LCD backlight is left on, the battery life will be reduced.
- Page 49 0 degrees or higher than 45 degrees Celsius charging may be negatively affected. The battery or charging unit may be damaged. If you have attempted these troubleshooting tips and are still experiencing difficulties please contact Olitech on 03 9755 8885 or email support@olitech.com.au.
-
Page 50: Safety Information
Safety Information Battery Do not use a damaged charger or battery. Only Olitech approved accessories/batteries with phone. Failure to do so will void your warranty. Do not place the battery under high temperatures or in a fire/flame. -
Page 51: Traffic Safety
continuously connected active charger it may damage the battery and shorten the battery life. charging capacity negatively affected in extreme temperatures. Traffic Safety Obey local traffic laws in relation to mobile phone use when driving. Keep the mobile phone out of reach of children The phone, including all parts and accessories should be kept out of reach... -
Page 52: Electronic Devices
phone usage regulations when in all environments. The optimal temperature range to use and store the mobile phone is 0 – 45 degrees Celsius. The phone is not designed to be used in environments below -10 degrees Celsius or above 50 degrees Celsius. - Page 53 The phone must only be serviced by authorised organisations. Failure to comply with this will result in loss of product warranty. Important note: If a part is missing or you believe the phone may be defective, please contact Olitech on 03 9755 8885 or email support@olitech.com.au.
-
Page 54: Warranty
Warranty The Olitech Easy Mate+ is guaranteed by a 12 month warranty (6 month warranty for the battery). The warranty period commences on the date of retail sale. Please retain your purchase receipt/ invoice as proof of purchase for warranty claim purposes. - Page 55 Olitech accepts no liability for loss of data due to a damaged/faulty phone. If you believe you have a valid warranty claim please contact your place of purchase to discuss your concerns. Please have your purchase receipt/invoice available at the time of contact to assist in the assessment of you claim.
