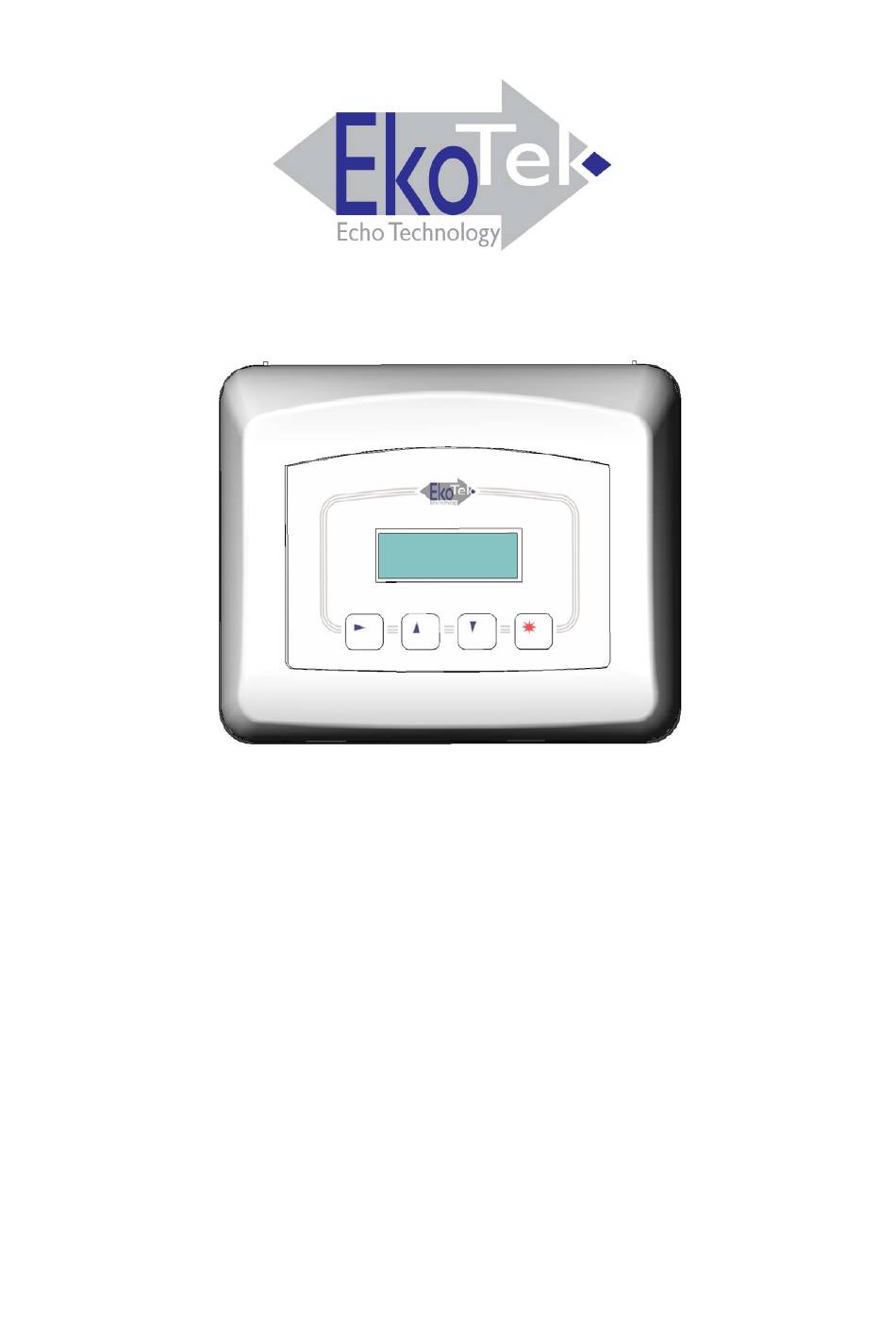

- Page 1 EkoTek Hub USER GUIDE EkoTek Hub 9261- 8276 (Issue 2.0)
- Page 2 EkoTek Hub...
-
Page 3: Table Of Contents
EkoTek Hub CONTENTS Introduction Compliance General User Information EkoTek System Schematic Powering Up the EkoTek Hub Status and Warning Messages Using the Emergency / Assist Button Dead Man Alert Receiving a Message Reading a Message Viewing a Message Again Accepting, Rejecting & Deleting Two-Way Messages... - Page 4 EkoTek Hub Set 12/24 Hour Mode Set Day / Night Mode Setting the Alert Options Setting the Message Display Options Setting Auto Delete IP Address Part No. 9261-8276 Issue 1.0...
-
Page 5: Introduction
EkoTek Hub Introduction The EkoTek Hub is an alphanumeric two-way messaging device, incorporating an emergency calling/assist facility. The EkoTek Hub is able to receive text messages, allows basic responses and provides the ability to store messages for later viewing. The high contrast screen is capable of displaying up to 150 characters and all menus are displayed in plain language text. -
Page 6: Compliance
EkoTek Hub Compliance This product complies with the requirements of the EU Radio & Telecommunications Terminal Equipment Directive 99/5/EC. FCC & Industry Canada Statement Of Compliance This device complies with Part 15 of the FCC Rules and Industry Canada Standard RSS 210. -
Page 7: General User Information
The EkoTek Hub has been designed to give optimum performance within the coverage area of the wireless network. Hazardous Areas The EkoTek Hub must not be installed in areas where explosive gas, or dust products, may be present. EkoTek Hub Care Protect the EkoTek Hub from liquids, extreme temperatures and strong magnetic fields. -
Page 8: Ekotek System Schematic
EkoTek Hub EkoTek System Schematic EkoTek Self Organising & Repairing Wireless Mesh Network Call Fob Wireless Power Repeater Adaptor Battery Powered Repeater With Web Server Pager Repeater Repeater Includes Personal Security Alarm Repeater to Repeater Distance Typically 10 to 15m... -
Page 9: Powering Up The Ekotek Hub
EkoTek Hub Powering Up the EkoTek Hub The EkoTek Hub is powered via a 110, 220 or 240 Volt switch mode power supply unit. On switching on the EkoTek Hub a message will then be displayed for three seconds, whilst self-checks are being performed. -
Page 10: Status And Warning Messages
The first line is the clock displaying the current time and date, the time may be in either a 12 or 24-hour format. In the top right hand corner the hub will display Day or Night this is used to indicate the shift mode. -
Page 11: Using The Emergency / Assist Button
Please confirm this with your EkoTek system supervisor. On pressing the Red Star button the EkoTek Hub will either beep and/or vibrate in sequence with a flashing alert lamp. Please note that the precise nature of this acknowledgement is subject to configuration. -
Page 12: Dead Man Alert
EkoTek Hub Dead Man Alert The EkoTek Hub is equipped with a Dead Man Alert this feature has to be enabled by the System Supervisor. The Dead Man Alert operates by initiating an alert to the EkoTek Hub at pre-set time intervals, this alert must be acknowledged by... -
Page 13: Receiving A Message
To see the rest of the message, simply press the button: before Wednesday. JILL■ If the message is not acknowledged the EkoTek Hub will return to the Standby Screen indicating that a message has been received: 3:54 PM 12.03.07 1 Unread Message... - Page 14 As each new message is received it is stored. The maximum number of messages that can be stored is 6. To make room for new messages the EkoTek Hub will start to delete the oldest read messages. If there are no read messages it will delete the oldest unread message.
-
Page 15: Reading A Message
EkoTek Hub Reading a Message To read a message, press the button whilst the EkoTek Hub is in the Standby Screen. The most recently received unread message will be displayed: 4:38 PM 12.09.06 Unread Your car will be ready for collection next Monday afternoon■... -
Page 16: Viewing A Message Again
Both options allow you to view the message. Press the button again to select View Again the EkoTek Hub will display the last message again, which will then remain in the memory for you to view in future, until deleted. -
Page 17: Accepting, Rejecting & Deleting Two-Way Messages
<?? Reject Delete To confirm the action press the button, the EkoTek Hub will briefly display the following depending on the action selected: For Accept the response is: Sending Accept Response For Accept the response is: Sending Reject Response For Delete the response is: Deleting... -
Page 18: Deleting A Message
EkoTek Hub Deleting a Message To delete a message, press the button when the ■ appears at the end of the message. The message option screens will be displayed depending on the message type received: For 1-way **> View Again <**... - Page 19 EkoTek Hub When the current message has been deleted, the previously received message will be displayed. If you wish to delete this message repeat the procedure above. To return to the Standby Screen press and hold the button for one second, if there are no...
-
Page 20: Delete All Messages
EkoTek Hub Delete All Messages Note: The delete all feature is available to all 1-way messages. However, for 2-way messages the delete all feature can only be accessed once the message has been viewed and appropriate action taken. To delete all the messages, press the button when the ■... -
Page 21: Archiving A Message
Messages may be stored for reference, by using the archive facility. The EkoTek Hub cannot automatically delete archived messages when the message memory is full, only the user can delete messages. At the end of the message you wish to archive, press button to see the message option screen. -
Page 22: Reviewing Archived Messages
EkoTek Hub Reviewing Archived Messages To review your archived messages, press the button whilst the EkoTek Hub is displaying the Standby Screen: 10.50 AM 12.09.06 Archive Bring 2 new demo models to the meeting at 11.30 next Tuesday. Ruth■ The first screen of the most recent archived message will be displayed. -
Page 23: Deleting Archived Messages
EkoTek Hub Deleting Archived Messages To delete an archived message, press the button when the ■ symbol appears at the end of the message. The message option screen will be displayed: **> View again <** Delete Delete All Press the... -
Page 24: Delete All Archived Messages
EkoTek Hub Delete All Archived Messages To delete all of the archived messages, press the button when the ■ symbol appears at the end of a message. The message option screen will be displayed: **> View again <** Delete Delete All Move the pointers to the Delete All item by pressing the button. -
Page 25: Set Time And Date
EkoTek Hub Set Time and Date To set the time and date, press the button when the Standby Screen is displayed. The Options Screen will be displayed. Move the pointers to Time and Date by pressing the button: Options **> Time and Date <**... -
Page 26: Set 12/24 Hour Mode
**> Set 12/24 Hour Mode <** Set Time and Date Set Night Mode Depending on if the Hub is in 12-hour or 24-hour mode the following screen will be displayed: ??> Set 12 Hour Mode <?? ??> Set 24 Hour Mode <?? -
Page 27: Set Day / Night Mode
Set 12/24 Hour Mode Set Time and Date **> Set Night Mode <** If the Hub is in Day or Night mode the following will be displayed: ??> Set Day Mode <?? ??> Set Night Mode <?? -
Page 28: Setting The Alert Options
EkoTek Hub Setting the Alert Options The EkoTek Hub allows full control of how the pager alerts when messages are received, the audible alert and vibrate alert can be set to ‘off’ or ‘on’. From the Standby Screen press the... -
Page 29: Setting The Message Display Options
EkoTek Hub Setting the Message Display Options The EkoTek Hub is equipped with display options these can be customised according to your personal requirements. To change the message display options, press the button from the Standby Screen. The Options Screen will now be displayed and select... - Page 30 EkoTek Hub The Font option can be set to 1, 2 or 3: • Font option 1 - Corresponds to a text size allowing up to 6 lines per screen (this text size option may be disabled via the programming software).
-
Page 31: Setting Auto Delete
EkoTek Hub Setting Auto Delete The Auto Delete function allows you to set the maximum number of stored messages, excluding those in the Archive memory. If the number of messages in the memory exceeds the selected number, then the oldest Read message is deleted. Should there be no Read Messages, then the oldest Un-read Message is deleted instead. -
Page 32: Ip Address
EkoTek Hub IP Address The IP Address function allows you to check the IP address for the EkoTek Hub. To access the Auto Delete function, press button to display the Options Screen: **> Options <** Time and Date Press the button to select Options. - Page 33 EkoTek Hub Notes: Part No. 9261-8276 Issue 1.0...
- Page 34 EkoTek Hub Multitone Electronics plc Multitone House, Shortwood Copse Lane, Basingstoke, Hampshire, England RG23 7DH Part No. 9261-8276 Part No. 9261-8276 Issue 1.0...
