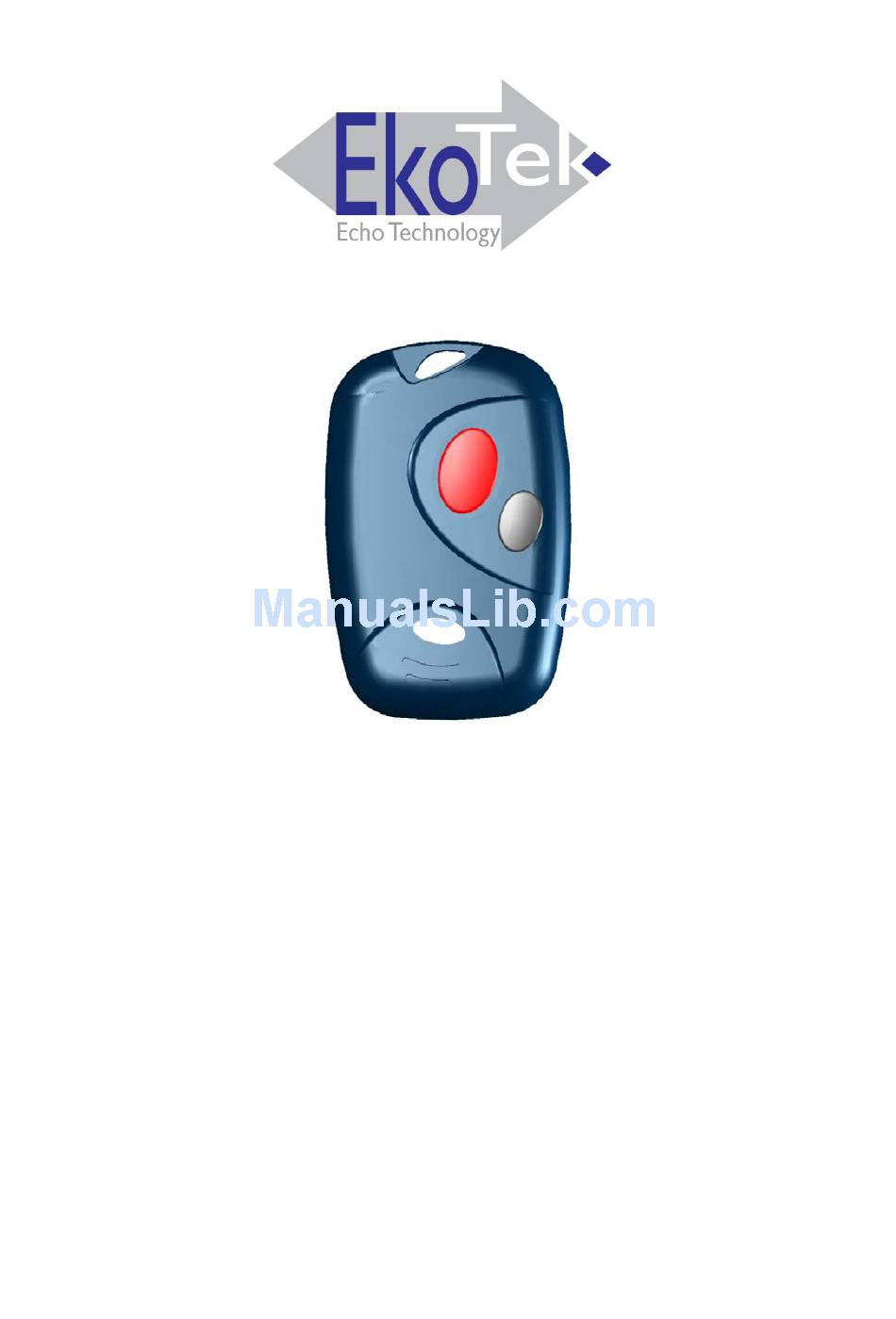

- Page 1 EkoTek Call Fob USER GUIDE EkoTek Call Fob 9261-8277 (Issue 2.0)
- Page 2 EkoTek Call Fob CONTENTS Introduction Compliance General User Information EkoTek System Schematic Switching On Your Call Fob Status and Warning Messages Switching the Call Fob Off Requesting Assistance or Raising an Alarm Cancelling an Alarm Dead Man Alert Man Down Alert...
-
Page 3: Introduction
Assist calls. The BLACK button is used to: Switch-on and switch-off the Call Fob Check if the Call Fob is in communication with a network Cancel an alert Alert/Status lamp indicates: If the Call Fob is connected to a network... -
Page 4: Compliance
EkoTek Pager Compliance This product complies with the requirements of the EU Radio & Telecommunications Terminal Equipment Directive 99/5/EC. FCC & Industry Canada Statement Of Compliance This device complies with Part 15 of the FCC Rules and Industry Canada Standard RSS 210. -
Page 5: General User Information
Hazardous Areas The EkoTek Call Fob should not be taken into areas where explosive gas, or dust products, may be present. Call Fob Care Protect your Call Fob from liquids, extreme temperatures and strong magnetic fields. -
Page 6: Ekotek System Schematic
EkoTek Pager EkoTek System Schematic EkoTek Self Organising & Repairing Wireless Mesh Network Call Fob Wireless Repeater Power Adaptor Battery Powered Repeater With Web Server Pager Repeater Repeater Includes Personal Security Alarm Repeater to Repeater Distance Typically 10 to 15m... -
Page 7: Switching On Your Call Fob
EkoTek Call Fob Switching On Your Call Fob To activate the Call Fob press and hold the BLACK button for up to 5 seconds. When activated the Call Fob will emit a single audible pip and the alert/status lamp will flash once indicating that it is switched on. -
Page 8: Switching The Call Fob Off
Call Fob will emit 2-beeps accompanied by 2-flashes of the alert/status lamp. Switching the Call Fob Off To switch the Call Fob off. Press and hold the BLACK button for 5- seconds this is confirmed by a single flash of alert/status lamp accompanied by a single beep. -
Page 9: Dead Man Alert
Your Call Fob is equipped with a Dead Man alarm feature this facility must be enabled by your EkoTek System Supervisor. The Dead Man Alert initiates an alert to the Call Fob at pre- determined time intervals. This alert must be acknowledged within a pre-determined time period by pressing the BLACK button. -
Page 10: Changing The Battery
BLACK button. Changing the Battery When the battery is near the end of its operating life, the Call Fob is programmed to provide a visual and audio warning – A single long beep with an accompanying flash of the alert/status lamp. - Page 11 EkoTek Call Fob Notes: Part No. 9261-8277 Issue 2.0...
- Page 12 EkoTek Pager Multitone Electronics plc Multitone House, Shortwood Copse Lane, Basingstoke, Hampshire, England RG23 7DH Part No. 9261-8277 Part No. 9261-8277 Issue 2.0...
- Page 13 Beep & Vibrate Operation of beep and vibrate is set by the Supervisor at the Hub. The Call Fob beep/vibrate (if enabled) is used to indicate a change in the status of an assist call and operates in conjunction with the LED flashes on the Call Fob.
- Page 14 Align ‘pips’ to remove the battery door AAA Ni-Mh rechargeable or non-rechargeable alkaline batteries may be used in the Call Fob. Compliance This product complies with the requirements of the EU Radio & Telecommunications Terminal Equipment Directive 99/5/EC. FCC & Industry Canada Statement Of Compliance This device complies with Part 15 of the FCC Rules and Industry Canada Standard RSS 210.
- Page 15 Man-Down Operation (if enabled by Supervisor) To prevent the automatic man-down alarm being sent, keep the Call Fob in an upright position (normally worn in the Call Fob holster on a belt) Dead-Man Operation (if enabled by Supervisor) Press the button to...
- Page 16 EkoTek Fob – Quick Instructions Fonction des boutons Envoi d’un appel d’assistance (1 ou 2 appuis – configuré par le superviseur) Fonction du bouton: 1) Efface l’appel d’assistance (appui court) 2) Marche/Arrêt (appui long) 3) Contrôle la presence d’un réseau (appui court) (DEL : un flash = pas de réseau...
- Page 17 EkoTek Fob – Quick Instructions Changer la batterie Aligner les « repères de centrage » pour retirer le couvercle de la batterie Le porte-clé fonctionne avec des piles alcalines AAA Ni-Mh, rechargeables ou non. Conformité Ce produit est conforme aux exigences énoncées dans la Directive européenne 99/5/EC relative aux équipements terminaux de Radio et de...
- Page 18 EkoTek Fob – Quick Instructions Fonctionnement Homme mort (si autorisé par le superviseur) Pour éviter le déclenchement de l'alarme homme mort automatique, maintenir le téléavertisseur en position verticale (normalement porté dans un étui, accroché à une ceinture) Fonctionnement Homme à terre (si autorisé par le superviseur) Appuyer sur la touché...
- Page 19 La función beep/vibrador (si está activada) se utiliza para indicar un cambio en el estado de una llamada de asistencia y opera junto con los destellos LED del Call Fob. Otros beeps : Dos beeps en intervalos regulares – batería baja Tres beeps–...
- Page 20 EkoTek Fob – Quick Instructions Cambio de Batería Alinear los ‘pips’ para retirar la tapa El Call Fob utiliza baterías alcalinas AAA Ni-Mh recargables o no recargables. Cumplimiento Este producto cumple con los requisitos de la Directiva 99/5/EC de la UE sobre Equipos Terminales de Radio y Telecomunicaciones.
- Page 21 Función Hombre-Caído (si está activada por el Supervisor) Para evitar que se envíe la señal de alarma automática hombre-caído, mantenga el Call Fob en posición vertical (normalmente se lo lleva en el estuche enganchado al cinturón) Función Hombre-Muerto (si está activada por el Supervisor)
