HID multiCLASS RMK40 Installation Manual page 2

multiCLASS
RMK40 / RMPK40
1

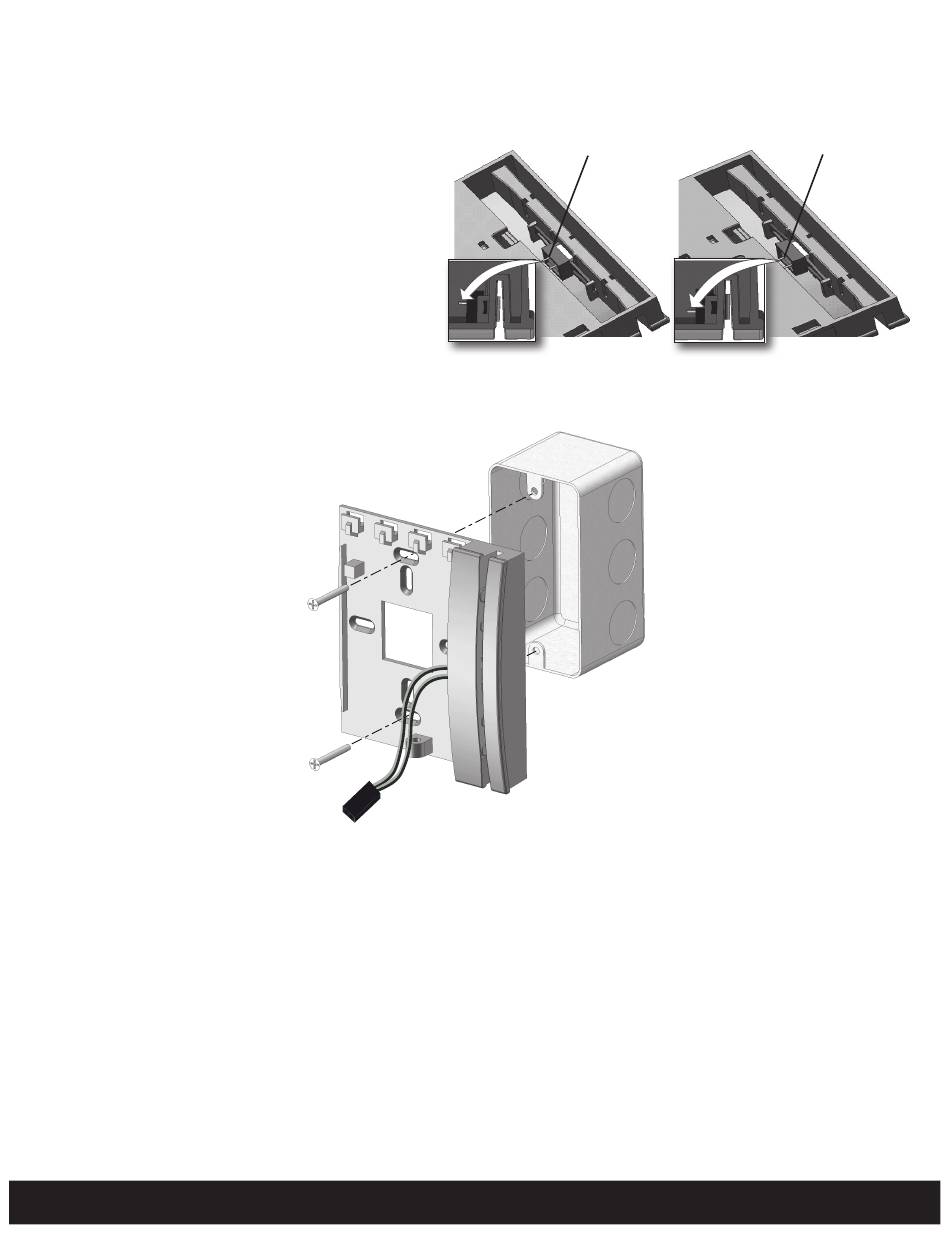

Head Track Adjustments
For a credential with a different track position, change the
head track position on the Magnetic Stripe reader.
1. Snap out the head/gimbal assembly.
2. Rotate the assembly 180 degrees.
3. Re-install the assembly into the reader case.
2
Mounting
Junction box not included.
Caja para conexiones no incluida.
Boîtier de jonction non inclus.
Caixa de junção não incluída.
Anschlusskasten nicht mit inbegriffen.
Scatola di raccordo non inclusa.
不包括接线盒。
接続ボックスは含まれていません。
연결 박스는 제품에 포함되지 않습니다.
Соединительная коробка не прилагается
2 INSTALLATION GUIDE
Wires away
from reader
face
©2009 HID Global Corporation. All rights reserved.
6410-901 A.1
Wires toward
reader face
(default)
