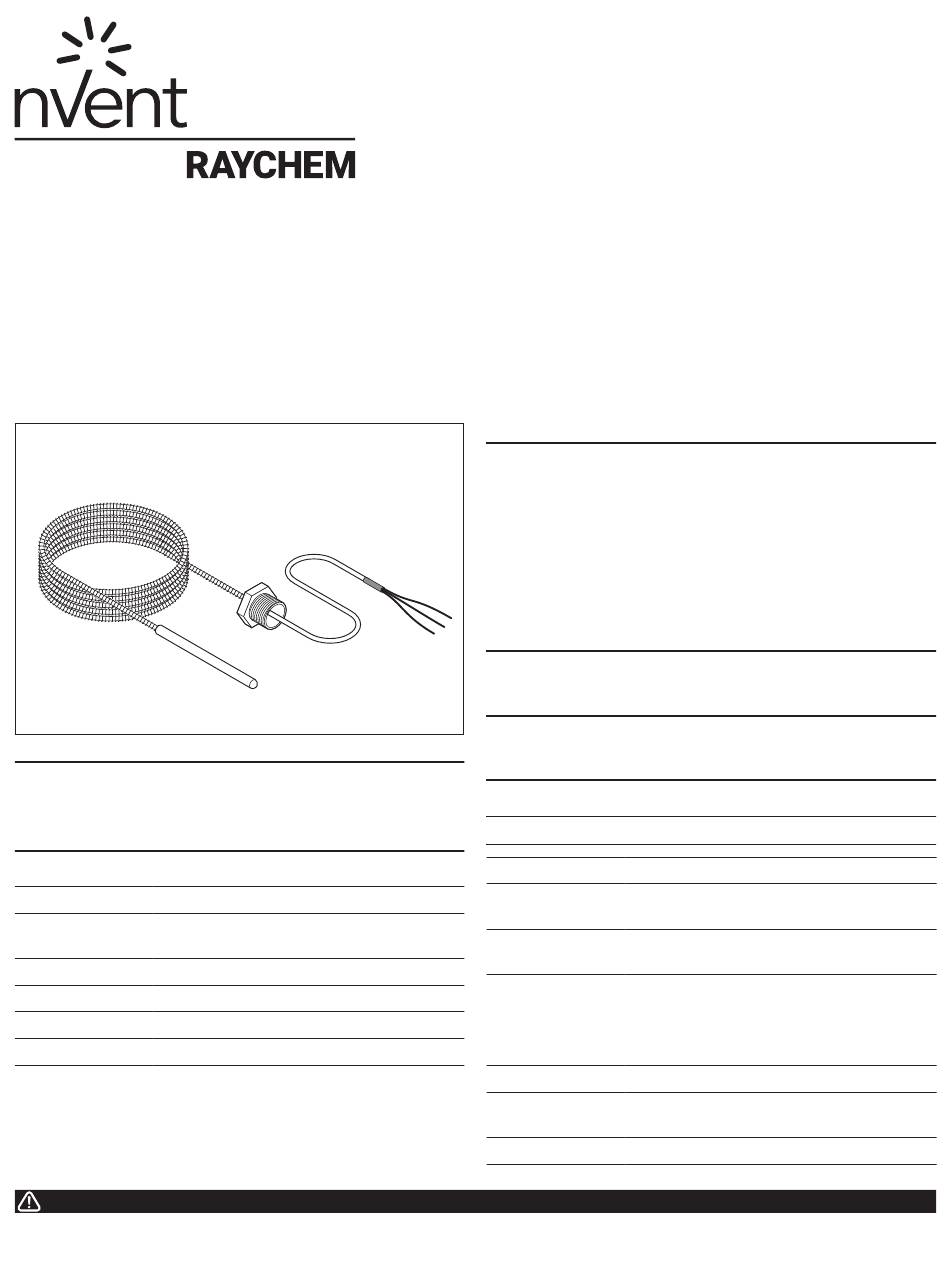

RTD3CS and RTD10CS
RTD Temperature Sensors for Temperature Measurement up to
400°F (204°C) Installation Instructions
APPROVALS
Approvals associated with control device, however not to be
used in Div. 1 locations.
SPECIFICATIONS
Sensor
Housing 316 stainless steel
Dimensions 3 in (76 mm) length 3/16 in (8 mm)
diameter
Sensing area 11/2 in (38 mm)
Accuracy ±1°F (0.5°C) at 32°F (0°C)
Range –76°F to 400°F (–60°C to 204°C)
Resistance 100 ohms at 0°C α =0.00385 ohms/ohm/°C
WARNING:
This component is an electrical device. It must be installed correctly to ensure proper operation and to prevent shock or fire. Read these
important warnings and carefully follow all the installation instructions. Component approvals and performance are based on the use of
s pecified parts only. Do not use substitute parts or vinyl electrical tape to make connections.
DESCRIPTION
The nVent RAYCHEM RTD3CS and RTD10CS are three-wire
platinum RTD (resistance temperature detectors) typically used
with monitoring and control systems, such as our
nVent RAYCHEM 910 controller, when accurate temperature
control is required.
The RTD3CS and RTD10CS can be installed directly to the
controller using the supplied 1/2 inch conduit fitting or to an RTD
junction box where RTD extension wire is used.
TOOLS REQUIRED
• 3.5-mm flat-blade screwdriver
ADDITIONAL MATERIALS REQUIRED
• AT-180 aluminum tape
KIT CONTENTS
Qty Description
1 RTD temperature sensor
Extension Wires
Wire size 20 AWG, stranded tinned copper
(each of 3)
Wire insulation 300 volts
rating
Length RTD3CS: 3 ft (.3 m) flexible armor,
RTD10CS: 10 feet (3 m) flexible armor,
Outer shield Stainless steel flexible armor
Maximum exposure 400°F (204°C)
temperature
Conduit bushing 1/2 in NPT
18 in (457 mm) lead wire
18 in (457 mm) lead wire
