nvent Raychem RTD-200 Installation Instructions

RTD-200
RTD Temperature Sensor for Ambient Sensing

Installation Instructions

WARNING:
This component is an electrical device. It must be installed correctly to ensure proper operation and to prevent shock or fire. Read these
important warnings and carefully follow all the installation instructions. Component approvals and performance are based on the use of
s pecified parts only. Do not use substitute parts or vinyl electrical tape to make connections.
DESCRIPTION

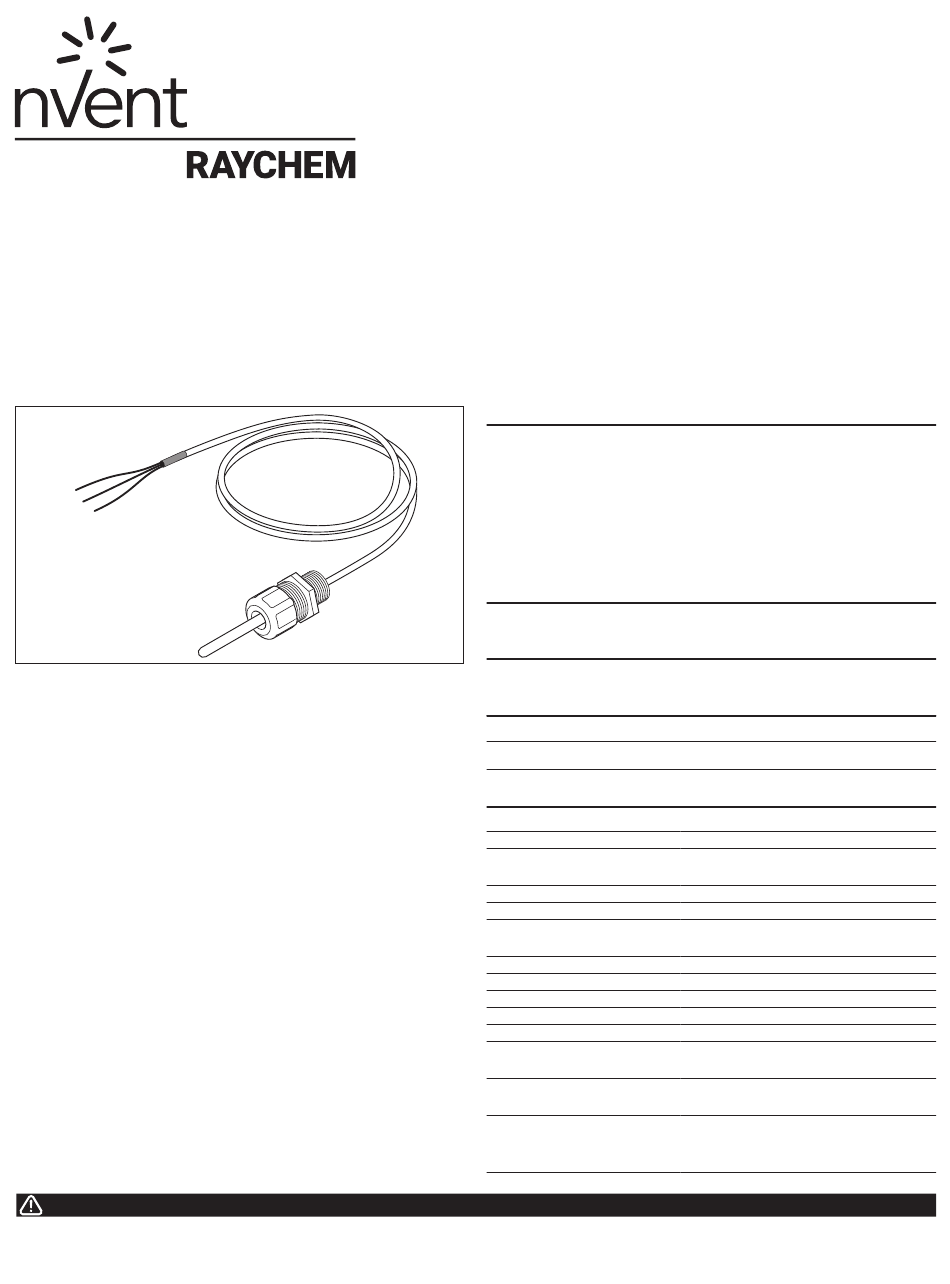

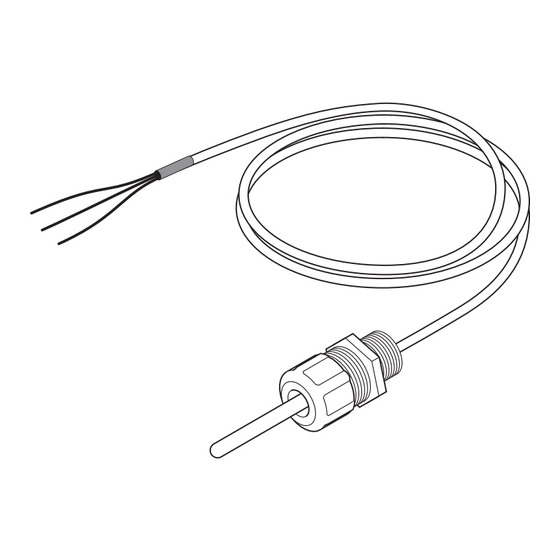

The nVent RAYCHEM RTD-200 is a three-wire platinum RTD
(resistance-temperature-detector) typically used with electronic
control systems that require accurate ambient temperature
sensing. The RTD-200 comes with a 1/2" NPT fitting that installs
to the appropriate conduit box. This allows mounting of the RTD
in a typical ambient location. This also allows for splicing of RTD
extension wire back to the controller.
TOOLS REQUIRED
None
ADDITIONAL MATERIALS REQUIRED
None
KIT CONTENTS
Qty Description
1 RTD temperature sensor with 1/2-in NPT fitting
SPECIFICATIONS
Sensor
Housing
Dimensions
Accuracy
Range
Resistance
Extension Wires
Wire size (each of 3)
Wire dielectric strength
Length
Outer jacket
Maximum exposure
temperature
Sensor fitting
Approvals
316 stainless steel
3 in (7.6 mm) length 1/4 in (6 mm)
diameter
±0.3°F (0.2°C)
–100°F to 300°F (–73°C to 149°C)
100 ohms +/– .25 ohm at 0°C
X=0.00385 ohms/ohm/°C
22 AWG
600 volts
6 ft (1.8 m)
Fluoropolymer
300°F (149°C)
1/2-in NPT with sealing washer
and nut
Approvals associated with control
device, however not to be used in
Div. 1 areas.
