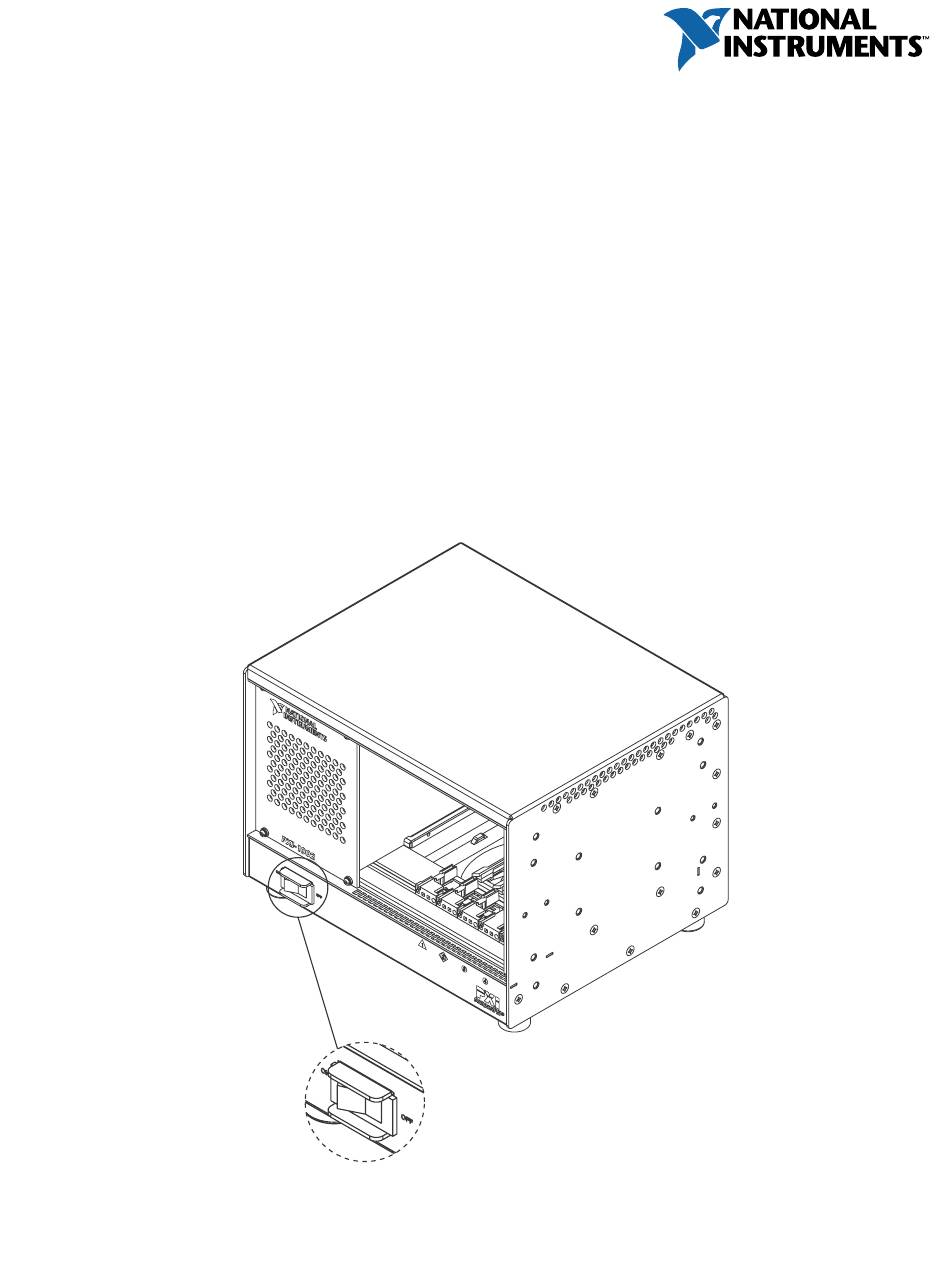

- Page 1 Getting Started with Your PXI -1002 ™ Unpack your PXI-1002 chassis and documentation. Power off the chassis. Power Switch...
- Page 2 49 for use in Canada, and IEC 227 or 245 for use in the European Union. AC mains power supply cords used with the PXI-1002 in other countries must be approved by the authority having jurisdiction in that country.) Power Cord Install your controller in Slot 1 of your PXI-1002.
- Page 3 Below are the PXI-1002 dimensions and mounting holes for the optional rack mount kit (available from National Instruments). Note: To facilitate power supply and module cooling, place the PXI-1002 on a bench top or instrument rack so that other equipment is kept a minimum of 3.0 in.
- Page 4 Connecting Safety Ground Warning The PXI-1002 chassis is designed with a three-position NEMA 15-5 style plug that connects the ground line to the chassis ground. To minimize shock hazard, make sure your electrical power outlet has an appropriate earth safety ground that is connected whenever you power up the chassis.
