AMAG Technology S823 Installation And User Instructions

Installation and User Instructions for S823 Readers
The S823 is a contactless smart-card reader, which uses
20mA current loop seudo-random communications p
The S823 is able to read Philips MIFARE and Philips
MIFARE DESfire smart cards.
For either type of card, the S823 supports the use of
unencoded cards (where only the unique card serial
number is read), or cards encoded with a card number.
Several encoding formats are supported.
The reader can simultaneously support two different card
types/formats (e.g. non-encoded MIFARE and smartMAX-
encoded MIFARE DESfire, or non-encoded MIFARE and
smartMAX-encoded MIFARE). The reader is
automatically configured to accept the first two card
types/formats presented.
1

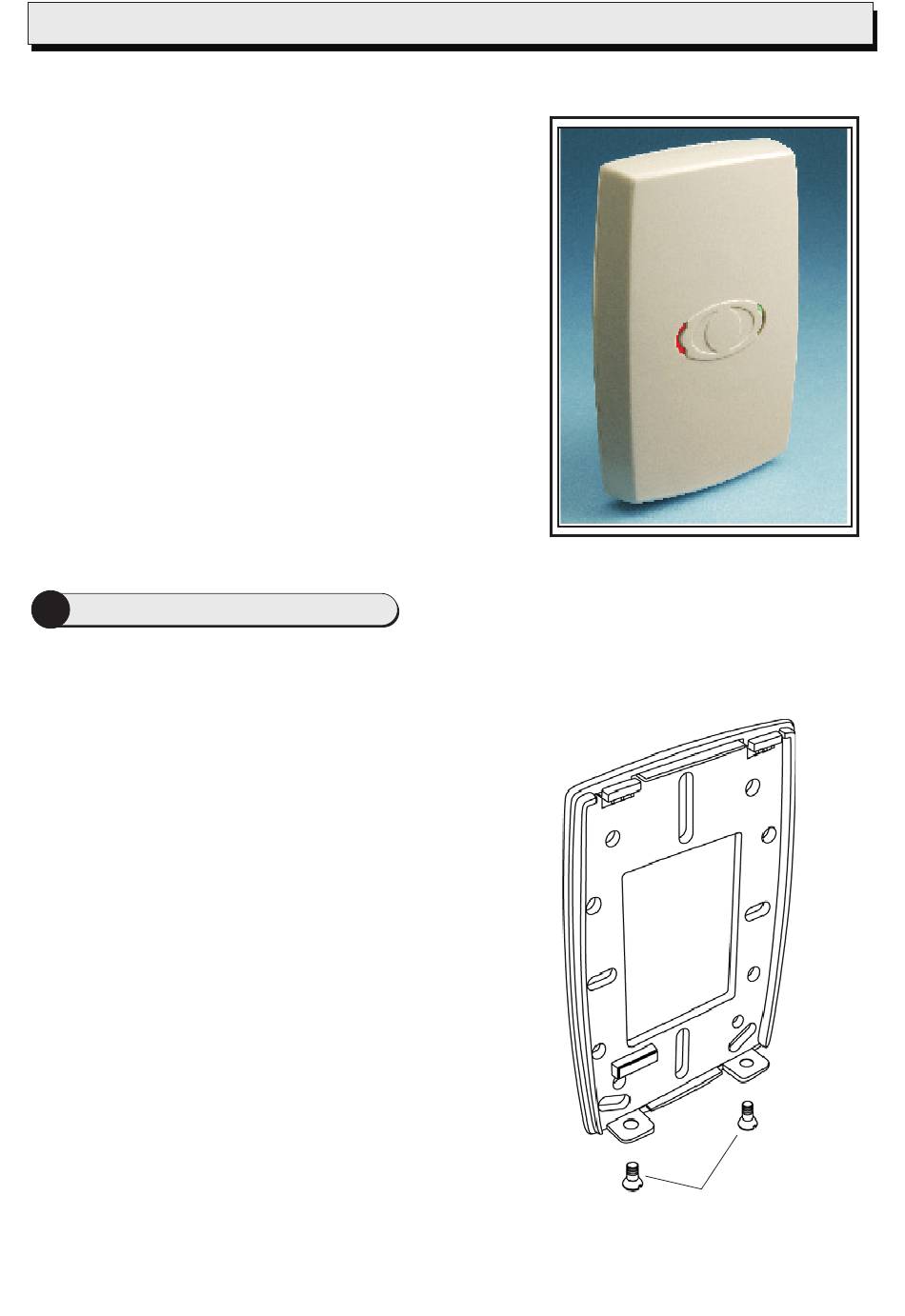

Mount the Backplate

The backplate has suitable holes for connection to most standard electrical backboxes.
To mount the backplate:
1) Remove the two screws taped to the inside
of the backplate.
2) Mount the backplate adjacent to the opening
edge of the door and at a convenient height.
Feed the cable to the reader through the
backplate.
3) Use the screws removed in step 1 to secure
the backplate to the main body of the reader
(see opposite).
.
® ®
Screws to attach
backplate to reader
