AMAG Technology S813 Installation And User Instructions

Installation and User Instructions for S813 Readers
Model number:S813-KPMICLBR

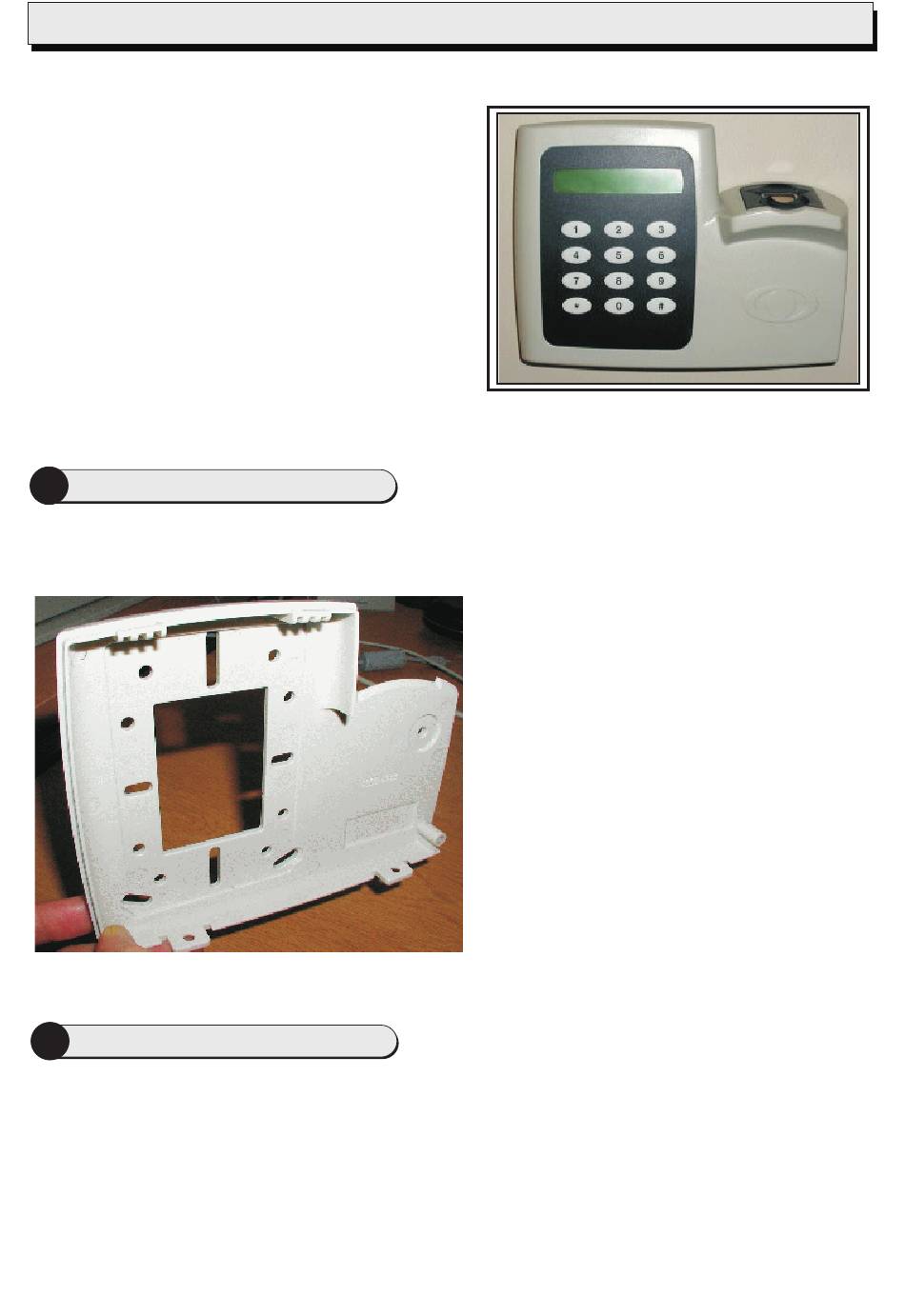

The S813 is a combined fingerprint and contactless
smart-card reader with keypad that is capable of
reading Philips MIFARE DESFire formatted cards, as
®
well as other standard and custom formats.
The S813 uses a Bioscrypt MV1200 Sensor and
pseudo-random 20mA current loop communications
1

Mount the Backplate

You should find that the backplate has suitable holes for
connection to most standard electrical backboxes.

Reader Links

2
The following links are provided on the reader's PCB:
LK1 (Audio feedback) - Set to "0" for sound off. Set to "1" for sound on.
LK3 (Test) - Ensure that this link has been removed.
®
® TM
.
To mount the backplate:
1) Detach the main body of the reader from the
backplate by releasing the two securing
screws along the bottom edge of the reader,
swinging the backplate upwards and easing
it away from the two top clips.
2) Mount the backplate adjacent to the opening
edge of the door and at a convenient height,
making sure that the finger pad is easily
reached. Feed the cable to the reader
through the backplate.
TO BE REPLACED BY ILLUSTRATION
