SG600
I N S T A L L AT I O N G U I D E
& O W N E R ' S M A N U A L
K I T I N C L U D E S :
SG 6 00 T - T O P FR AM E
SUN BR EL LA
MO UN TI NG HA R DWA R E

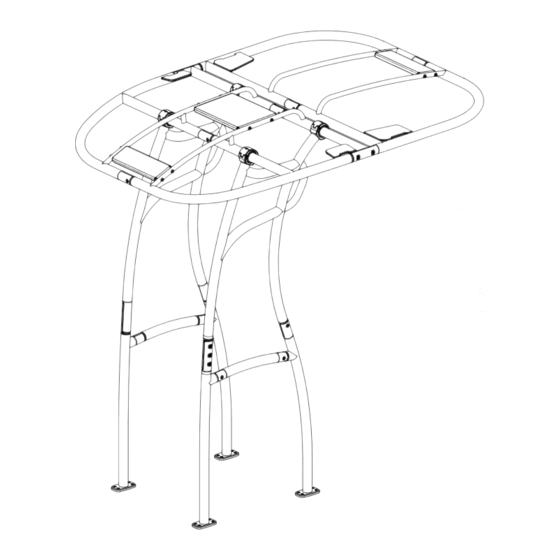

IM AG E S H OWN W IT H OUT C A NOP Y F OR CLAR IT Y
CA N OPY
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG600 and is the answer not in the manual?

Questions and answers

Related Manuals for Stryker T-Tops SG600

Summary of Contents for Stryker T-Tops SG600

  • Page 1 SG600 I N S T A L L AT I O N G U I D E & O W N E R ’ S M A N U A L K I T I N C L U D E S :...

  • Page 2: Before You Get Started

    SG600 Congratulations! O N Y O U R S T R Y K E R T - T O P P U R C H A S E O N Y O U R S T R Y K E R T - T O P P U R C H A S E You have selected a quality aftermarket t-top to upgrade your center console boat.
  • Page 3 5’ 1” 1549.40 mm M O U N T I N G P L A T E S The SG600 comes with 7 accessory mounting plates perfect for outriggers, flood lights, antennas, radar, etc. Four are welded on the frame and three are...
  • Page 4 SG600 P A R T S L I S T Front Starboard Top Section Rear Starboard Top Section Front Port Top Section Rear Port Top Section Starboard Upper Leg Section Port Upper Leg Section Starboard Lower Leg Section Port Lower Leg Section Deck Screws Leg &...
  • Page 5 SG600 C A U T I O N ! Check for wires, water/fuel tanks & lines before you drill into your deck. If unsure, contact your boat’s manufacturer. STEP 1 Lay overlapping strips of blue painter’s tape on both sides of the deck next to the center console unit.
  • Page 6 The distance between a leg section and the console should be about 1 and 7 inches. The SG600 kit includes 2 stand-offs - one for each side. Po s i ti o n the lo wer halve s of e ac h sid e sec tion on the d e ck . M a k e s u re y o u t a k e t h e s a me mea s urem ent s...
  • Page 7 SG600 STEP 3 M A R K I N G M O U N T I N G F E E T L O C A T I O N S Once you have determined the best location of the leg sections and double checked all measurements, use a marker to outline each foot.
  • Page 8 Stryker sells sets of quick-release knobs. For the SG600, you can use up to eight knobs to replace the bolts that connect the upper and lower leg sections. Note: of the three bolts on the...
  • Page 9 SG600 STEP 7 M E A S U R E W I D T H B E T W E E N L E G S Measure and record the distance between each leg section. We recommend measuring from the inside of the left and right leg section.
  • Page 10 SG600 STEP 10 D R I L L M O U N T I N G H O L E S I N T H E D E C K PILOT HOLE PILOT DRILL SIZE: 1/8” (0.125” ) Before drilling, consult your owner’s manual or boat manufacturer 3.175...
  • Page 11 SG600 STEP 11 M O U N T T - T O P T O T H E D E C K It’s time to mount the t-top frame to your boat’s deck. Prepare the deck so it’s cleared out and ready.
  • Page 12 SG600 STEP 12 M O U N T S T A N D O F F S From step two of this installation guide, you should have already determined where to mount your standoffs. E X P L O D E D V I E W O F A S T A N D O F F PRO TIP Check the thickness of your console’s side walls.
  • Page 13 SG600 STEP 12 M O U N T S T A N D - O F F S ( C O N T . ) M A R K C U T L I N E O N S T A N D - O F F S...
  • Page 14 SG600 STEP 12 M O U N T S T A N D - O F F S ( C O N T . ) D R I L L T H R O U G H T - T O P & C O N S O L E Drill through the marked locations on the t-top and on the console.

  • Page 15: Optional Upg Rade

    SG600 Optional Upg rade T - T O P V - B R A C E K I T For those who have choppy local waters or would like to reinforce their t-top, Stryker has designed the V-Brace kit as an optional add-on. It diagonally connects the forward facing legs with the front side of the center console with solid clamps and thick aluminum bars.
  • Page 16 SG600 STEP 15 M O U N T R E A R T O P S E C T I O N T O T - T O P STEP 16 L A Y C A N O P Y I N P L A C E Lay the canopy out flat on the top frame.
  • Page 17 STRYKER T-TOPS ALWAYS USES PREMIUM MARINE CANVAS MATERIAL BY SUNBRELLA Instaation Complete! Add Your Boat to Our Customer Gallery! C O N G R A T U L A T I O N S O N F I N I S H I N G Y O U R S T R Y K E R T - T O P I N S T A L L A T I O N After you have installed your Stryker T-Top, take some photos and send them to us.

  • Page 18: Wiring Instructions

    Stryker T-Tops is not responsible or liable for damage due to a customer’s misuse of our products or negligence.

  • Page 19: Care And Maintenance

    Depending on the Stryker T-Top model, the lower leg sections might have a horizontal brace that could prevent the door from opening. On the SG300, this brace is welded on; the SG600 has a brace that is mounted with allen head bolts and can be temporarily removed; the SG900 has been designed with a much higher horizontal brace to avoid this situation.
  • Page 20 SG600 Care & Maintenance (continued) A N O D I Z E D A L U M I N U M C A R E You can save yourself a lot of time and unnecessary extra effort by simply committing to a regular, stress-free cleaning regimen.

  • Page 21: Warranty Information

    Any cost of shipping and installation related to the return and replacement of products is the responsibility of the customer unless otherwise deemed by Stryker. Stryker T-Tops disclaims any warranty of merchantability or fitness for a particular purpose in connection with the Buyer’s purchase of units of any Product under this agreement.

  • Page 22: Product Returns

    Contact Us Prior to returning any products to Stryker T-Tops for a return or replacement, please fill out the form at www.strykerttops.com/warranty-returns. If you are requesting to return multiple products, please complete a form for each product. We will contact you via email within 2-3 business days with further instructions.
