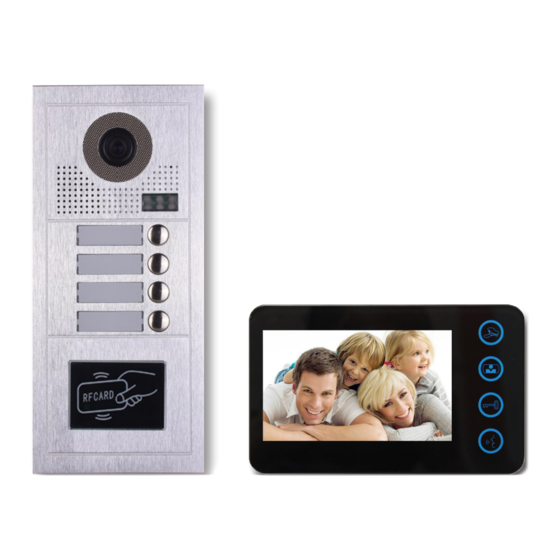

- Page 1 Video Intercom System Multi-Tenant/MT-Series (2017) Installation Manual and Programming Guide BEC Integrated Solutions - Williamsville, New York - 716-689-0871...
-
Page 2: Table Of Contents
Contact Us.............7 Getting Started Thank you for choosing the BEC Video Intercom System! BEC is proud to introduce the MT-Series - our recently updated 2-wire system, providing a straightforward installa- tion, and a simple, yet intuitive user experience. This manual includes installation steps, programming instructions, and wiring diagrams. -
Page 3: Set-Up/Installation
Set-Up/Installation Wiring Below is a sample four-monitor, single-entry wiring diagram using minimum 18-awg, unsheilded, stranded wire. Please take careful note of the monitor bit-codes. The diagram on the next page shows a 32-monitor configuration with an additional camera (note: 32 monitors is the max no. of stations). Take note of the distance chart at the bottom of the page to ensure your wire distances are under the listed limits. - Page 4 MT-2-4 MT-2-4 MT-202 MT-PS egend istances (1.) Door Station (MT-7xx/8xx) - DIP 1 + 2 should be set to 00 If # of Room Stations < 20 when there is only ONE door. (2.) Power Supply (MT-PS) - Must be installed side-by-side with the Power Separator.
-
Page 5: Programming
Programming Every room station odes onitor odes must have an ID, set through the bit codes (listed right). Bits 1-5 are used to configure the room ID; Bit-6 is the line-terminal switch, at the LAST monitor to ON, otherwise set OFF. Bit-7 is to turn the ringtone at the door station On/Off. -
Page 6: Electric Locks
Electric Lock The MT series has a built in timer and power for a 12v DC strike (max current = 250mA), Set the jumper SIP1 set to 1-2 for a normally closed lock (power OFF to open), or set SIP1 to 2-3 for a nor- mally open lock (power ON to open). - Page 7 Special Case: MT-706 When setting up the MT-706, six-button outdoor panel, you must program the monitors to these dip-settings in order to program the six buttons/monitors correctly - the chart on pg. 4 is not applicable. This is the only door panel that requires special configuration.
- Page 8 5225 Sheridan Drive Georgetown Square Williamsville, NY 14221 Phone: 1-716-689-0871 Toll-Free: 1-888-556-3998 E-Mail: support@becsolutionsllc.com http://www.becintegrated.com...
-
Page 9: Unlock
User Guide and System Instructions Getting Started Congratulations on your new Video Intercom System! At BEC we are proud to provide secure, reliable entry solutions for your home or business. This user manual will provide answers for any operational questions you may encounter throughout your system’s lifetime. -
Page 10: Picture Memory
Picture Memory If your system is equipped with the optional Picture Memory function, you will notice the additional feature controls on the side of the monitor. 1. Setting Time - Press Monitor, press Menu twice to choose the date, then adjust the year by pressing Up or Down.
