BEC MV200Z Initial Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

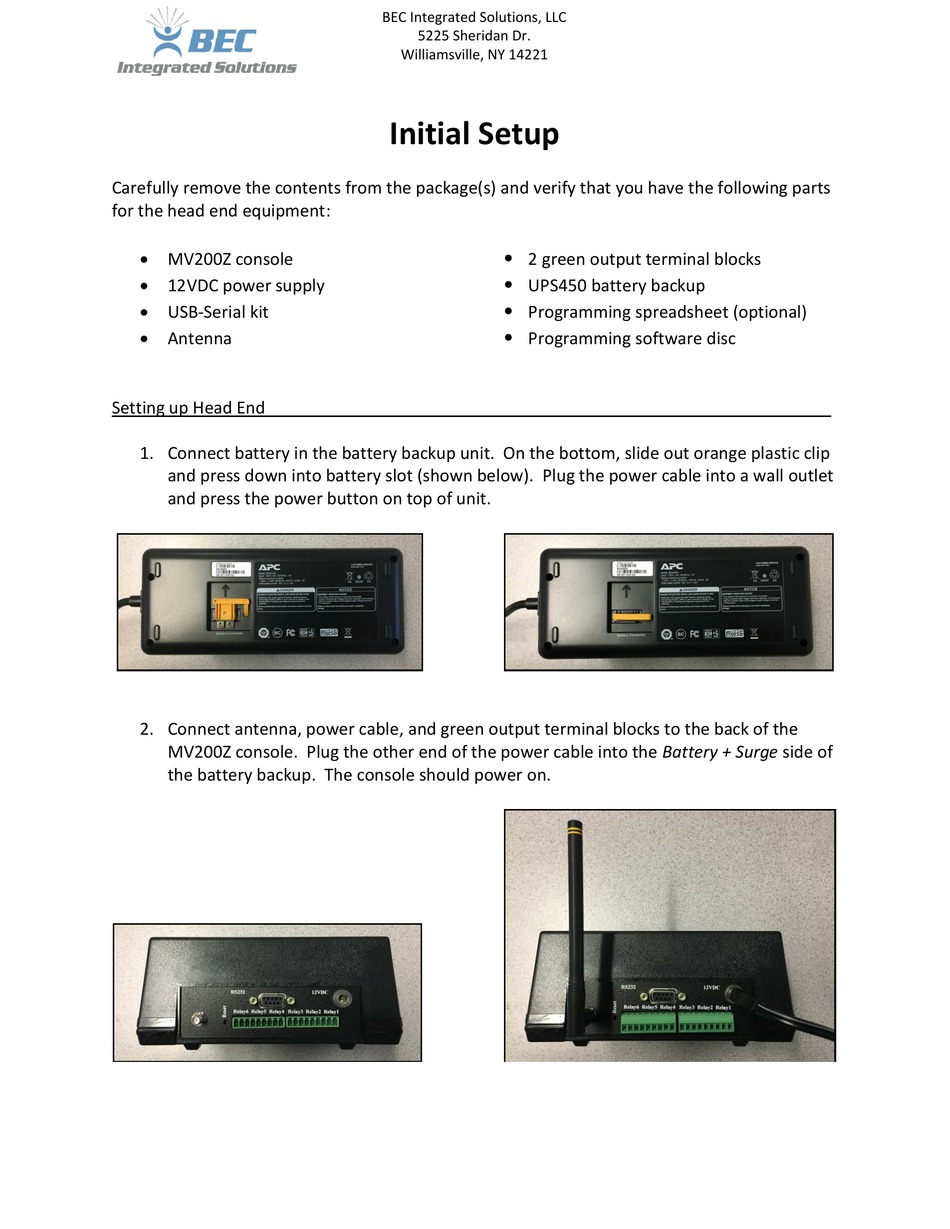

Carefully remove the contents from the package(s) and verify that you have the following parts
for the head end equipment:
 MV200Z console
 12VDC power supply
 USB-Serial kit
 Antenna
Setting up Head End_____________________________________________________________
1. Connect battery in the battery backup unit. On the bottom, slide out orange plastic clip
and press down into battery slot (shown below). Plug the power cable into a wall outlet
and press the power button on top of unit.
2. Connect antenna, power cable, and green output terminal blocks to the back of the
MV200Z console. Plug the other end of the power cable into the Battery + Surge side of
the battery backup. The console should power on.
BEC Integrated Solutions, LLC
5225 Sheridan Dr.
Williamsville, NY 14221
Initial Setup
•
2 green output terminal blocks
•
UPS450 battery backup
•
Programming spreadsheet (optional)
•
Programming software disc

Advertisement

loading
Need help?

Need help?

Do you have a question about the MV200Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEC MV200Z

Summary of Contents for BEC MV200Z

  • Page 1 2. Connect antenna, power cable, and green output terminal blocks to the back of the MV200Z console. Plug the other end of the power cable into the Battery + Surge side of the battery backup. The console should power on.
  • Page 2 Refer to page 15 and following for device installation instructions. NOTE: It is extremely important for the proper function of the MV200Z that the console is set up at least 4 feet away from other electronic devices and metal areas. Optimum location for installation is on top of a clean, clear desk.
  • Page 3 Resting state of the MV200Z console. The Power LED will be illuminated. Alarm state of the MV200Z console. The Alarm LED will illuminate and the device information (Room 101) will display on the LCD screen. The device index (01) also displays. The locator ID (1603) displays in the bottom right corner, if locators are programmed in.
  • Page 4 If the device in alarm is programmed as a Persistent Alarm, then to clear the alarm from the MV200Z console the Increment button must be pressed. The LCD display will show a message “Call-Clear” (see above). When this happens, press the Clear button. The alarm will clear from...
  • Page 5 Front Display and Buttons_________________________________________________________ When the battery in a device is getting low, it will send a signal to the MV200Z console. The Low Bat LED will illuminate and the LCD display will read “Low Battery” for the specific room.

  • Page 6: Additional Information

    Additional Information Device Faults___________________________________________________________________ Each device for your system is supervised by the MV200Z console. The devices send out a supervisory signal every hour that checks in with the console. If a supervisory signal is not seen for a device within the programmed fault window (default 18 hours), then the MV200Z will display a Device Fault alarm for that device.

  • Page 7: Installing Devices

    5. Plug into wall outlet. The red power LED on the bottom panel will illuminate. 6. Repeater will initialize by temporarily illuminating all three red LED on the bottom panel. 7. Repeater is now ready to be programmed into the MV200Z console.
  • Page 8 Push Button Stations____________________________________________________________________ If your MV200Z system was programmed by Systems Technologies, please refer to your programming sheet when installing the pull stations. The programming sheet will tell you which devices go into which rooms. Installing Push Button Stations: 1. Remove pull station from packaging.
  • Page 9 Attention Button...

  • Page 10: Black Box

    Default Settings MV200Z Console_________________________________________________ 1. Connect the Serial to USB cable to the back of the MV200 and USB port. 2. BLACK BOX: a. Latching means that the device will stay in alarm until it is physically reset. b. Persistent means that the device will stay in alarm until it is cleared from the console.
