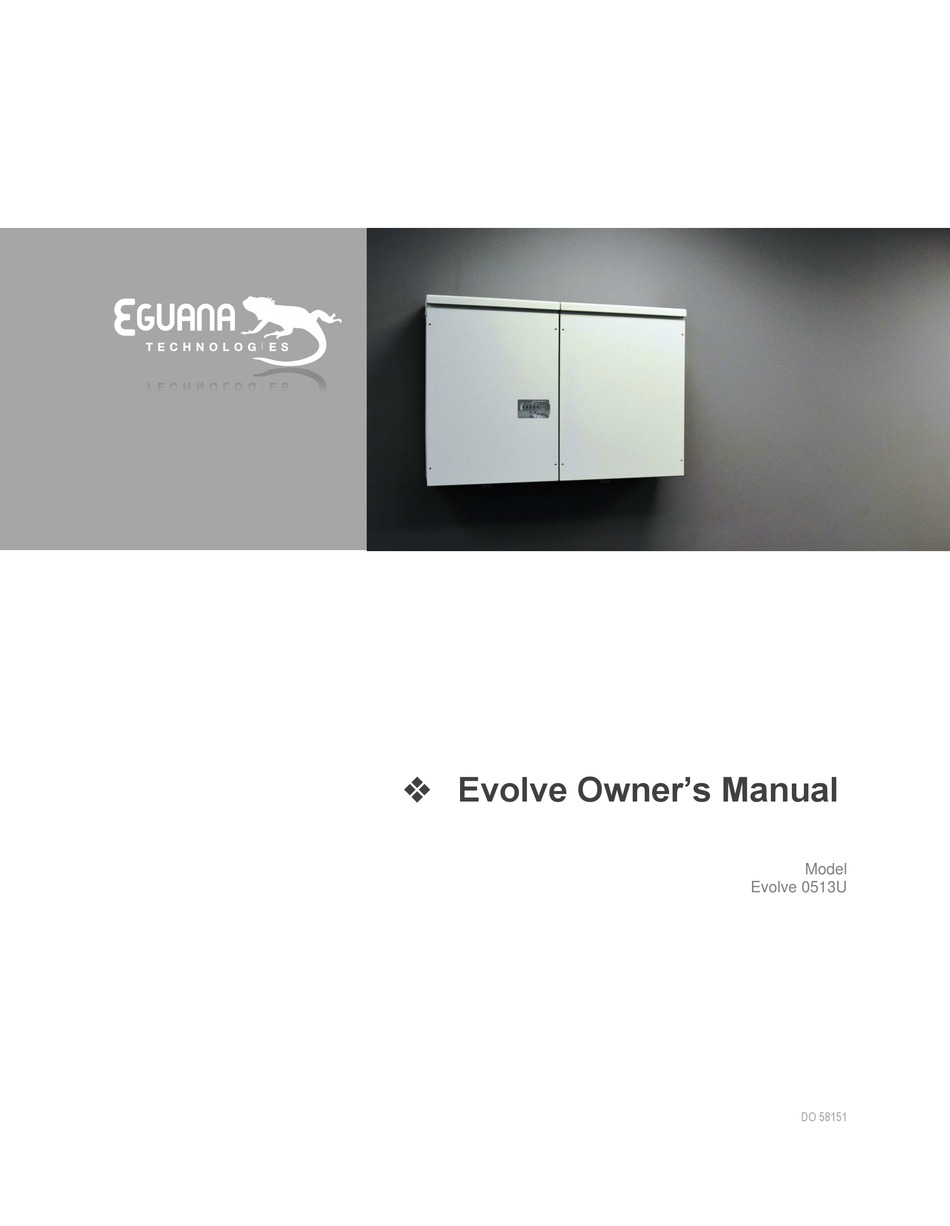

- Page 1 Eguana Evolve™ Evolve Owner’s Manual Model Evolve 0513U DO 58151...
- Page 2 Evolve EMS-B Energy Management Hub Warranty The Eguana Evolve includes a 10 year standard warranty with performance pro-rating for the battery modules. Please review your warranty statement included with your product. IMPORTANT! An internet connection is required in order to make warranty claims for defective battery modules.
-
Page 3: Table Of Contents
Table of Contents Contents 1 SAFETY ......................................1 1.1 I ............................1 N CASE OF EMERGENCY 1.3 E ..........................2 NVIRONMENTAL ROTECTION 2 INTRODUCTION ....................................3 2.1 O ................................3 VERVIEW 2.2 S ............................4 YSTEM ONITORING 3 OPERATION ..................................... 4 3.1 LED D ............................ -
Page 4: Safety
1 Safety Throughout this manual, the following symbols will be used to highlight important information and procedures: Symbol Definition WARNING! A dangerous voltage or other condition exists. Use extreme caution when performing these tasks. CAUTION! This information is critical to the safe installation and or operation of the system. Follow these instructions closely. -
Page 5: Environmental Protection
1.2 General safety precautions Important! Never operate the system in a manner not described by this manual. Only qualified personnel should service this product. Risks of Fire Do not expose the system to temperatures exceeding 45 degrees Celsius. Avoid installation in direct sunlight. Do not store objects on top of the cabinet. -
Page 6: Introduction
2 INTRODUCTION 2.1 Overview This manual contains instructions for the operation of the Eguana Evolve™ home energy storage system. This product, when installed, is permanently wired to the home electrical panel. There are two main components as shown below, including the energy management system (1), and the battery system (2). -
Page 7: System Monitoring
3 Operation The Evolve home energy storage system is fully automated. The EMS will be programmed to connect the system to the grid after AC and DC sources are applied. While the monitoring system provides a complete dashboard of your system’s operating state, the LED display on the front of the battery system can be used to determine its present operating conditions. -
Page 8: Service Button
5 Maintenance The Evolve home energy storage system is a maintenance free product. Regularly scheduled inspection of the airflow path for the active cooling fans on the bottom side of the PCS cabinet is all that is required. This inspection should occur on an annual basis, or coincide with PV inspection. -
Page 9: Troubleshooting
Check power to the Evolve energy management system via the orange indicator light on the right side of the panel. Note: the energy management system may lose power after an extended grid Online monitoring system not accessible outage where there is not enough solar generation to maintain battery system power.
