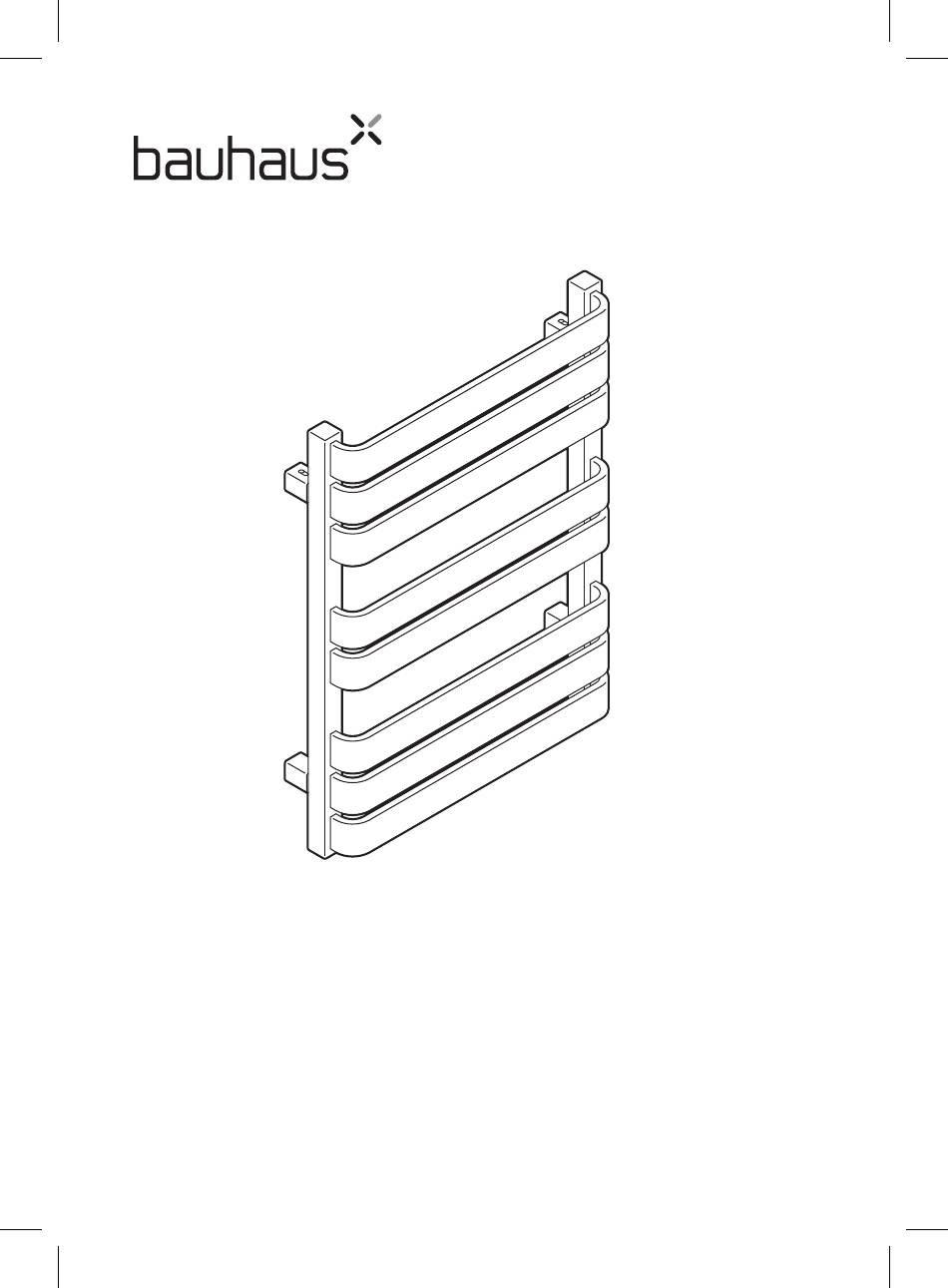

- Page 1 User Manual Radiator...
-
Page 3: Warranty Conditions
The warranty terms applies to the decorative radiator manufactured with pa- rameters specified on the last page of this booklet. Check the contents of the pack carefully before installation. Bauhaus will not be held responsible for any de-fit / re-fit costs where faulty product has been fitted. - Page 4 b. product faults resulting from using the radiator in defiance of the require- ments specified in the attached manual — in particular those regarding wa- ter characteristics and pressure inside the radiator; c. damage caused by the Consumer after receiving the product from the Seller. The warranty does not apply to any claims related to technical and functional features of the radiator, as long as they conform with those stated in the manual and technical specifications.
-
Page 5: Product Information
PRODUCT INFORMATION MATERIALS: the radiator is made of low-carbon steel, its surface is powder coated or chrome plated. TECHNICAL PARAMETERS: detailed product data can be found on the last page of this booklet. INTENDED USE: heating the interiors with normal air humidity and without any corrosive fac- tors (this also applies to bathrooms, kitchens etc.). - Page 6 RADIATOR INSTALLATION ZONES: Zone X stands for a water source (meaning any sink, shower, bathtub or toilet). Zone A includes the space directly above zone X as well as 1 m to the left and 1 m to the right. If the radiators are to be installed in zone A they need to have an additional zinc coating offered at extra cost by the Supplier.
- Page 7 Detailed requirements concerning sealed central heating systems, water quality and operation of such installations are defined in norms applicable in a given country. Installation parameters must not exceed the radiator operating pa- CAUTION! rameters defined on the last page of this manual. The heating medium must not contain ethylene or propylene glycol.
-
Page 8: General Installation Notes
GENERAL INSTALLATION NOTES This product should only be fitted by a qualified plumber to NVQ (National Vocational Qualification) or SNVQ (Scottish National Vocational Qualification) Level 3. Should the installation be completed by a non-qualified person then the guarantee may be considered invalid. Special caution must be taken while transporting, installing or dismantling the radiator in order to avoid any harm or damages. -
Page 9: Safety Precautions
SAFETY PRECAUTIONS Ensure the room is well heated and ventilated. Be careful while putting hands between radiator pipes. While drying clothes bear in mind the maximum temperature allowed for a given type of fabric in order to avoid damaging them. Avoid hanging on your radiator fabrics with bleeding dyes (new CAUTION! towels, fabrics with a considerable amount of synthetic fibres) and fabrics... -
Page 10: Failure Situations
FAILURE SITUATIONS In case of any signs of a radiator fault, such as: — a leak of the heating medium, — excessive pressure (manifested by deformation of pipes), — any other abnormal symptoms, immediately turn off the valves and contact the Manufacturer. MAINTENANCE Do not allow the temperature of the heating medium to fall below 0°C. - Page 11 DISPOSAL When permanently dismantling and removing the radiator observe your local law concerning disposal.
- Page 12 8. Delta T50°C Heat Output 9. Thermal Characteristic Equation 10. Weight 11. Water Volume 12. Manufacture Date 13. Operating Pressure 14. Operating Temperature 15. Model Number Crosswater Limited Lake View House, Rennie Drive, Dartford, Kent DA1 5FU Tel: +44 345 873 8840 technical@crosswater.co.uk 20160316WOŁOSIUK MPGKE-176...
