ETAS F-00K-104-945 Operating Instructions

UNIVERSAL COIL-ON-PLUG IGNITION
OPERATING INSTRUCTIONS
The Universal COP Ignition Flex Probe Kit (part number F-00K-104-944) contains a probe which is
designed to be used with most domestic and import coil-on-plug (COP) vehicle ignition systems with
accessible coils. The probe provides easy access for secondary ignition pattern comparisons on coil-on-plug
ignition systems using the MTS 5200 Engine Analyzer.
The kit consists of the following components:
ORDERING
PART
LABEL ON
NUMBER
F-00K-104-945 1 687 224 993
Universal COP
Ignition Flex Probe
(P/N 1 687 224 993)

VEHICLE COVERAGE AND ACCURACY

• The flex probe included in this kit provides universal access to most coil-on-plug ignition systems with
accessible coils, even when other ignition leads do not. Although most coil-on-plug systems are
supported by this probe, some ignition systems do not emit a strong enough signal to obtain an adequate
reading for comparison and diagnostics using this probe.
• The Universal Coil-On-Plug Ignition Flex Probe serves as a quick analysis tool for use in the analyzer's
Secondary Quick Check mode. Ignition voltage measurements made using this probe are primarily used
F-00K-104-952
FLEX PROBE KIT
PART
NUMBER
DESCRIPTION
PROBE
Probe: Universal COP Ignition
Flex
SEC IGN

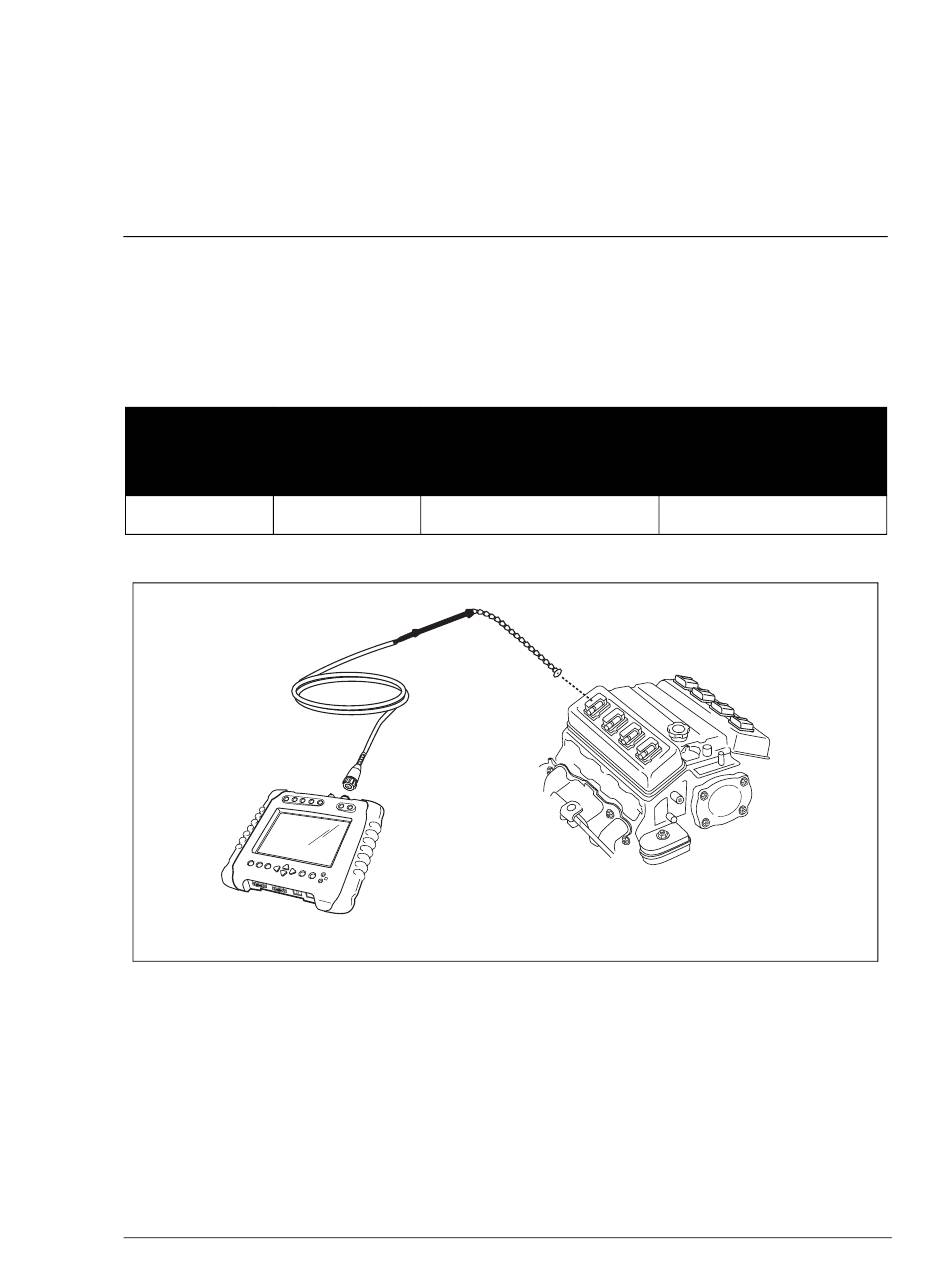

FIGURE 1. Universal COP Ignition Flex Probe
USE
Used on coil-on-plug systems
with accessible coils
