Oil Meter HZ 3 and HZ 3 RR Mounting Instructions

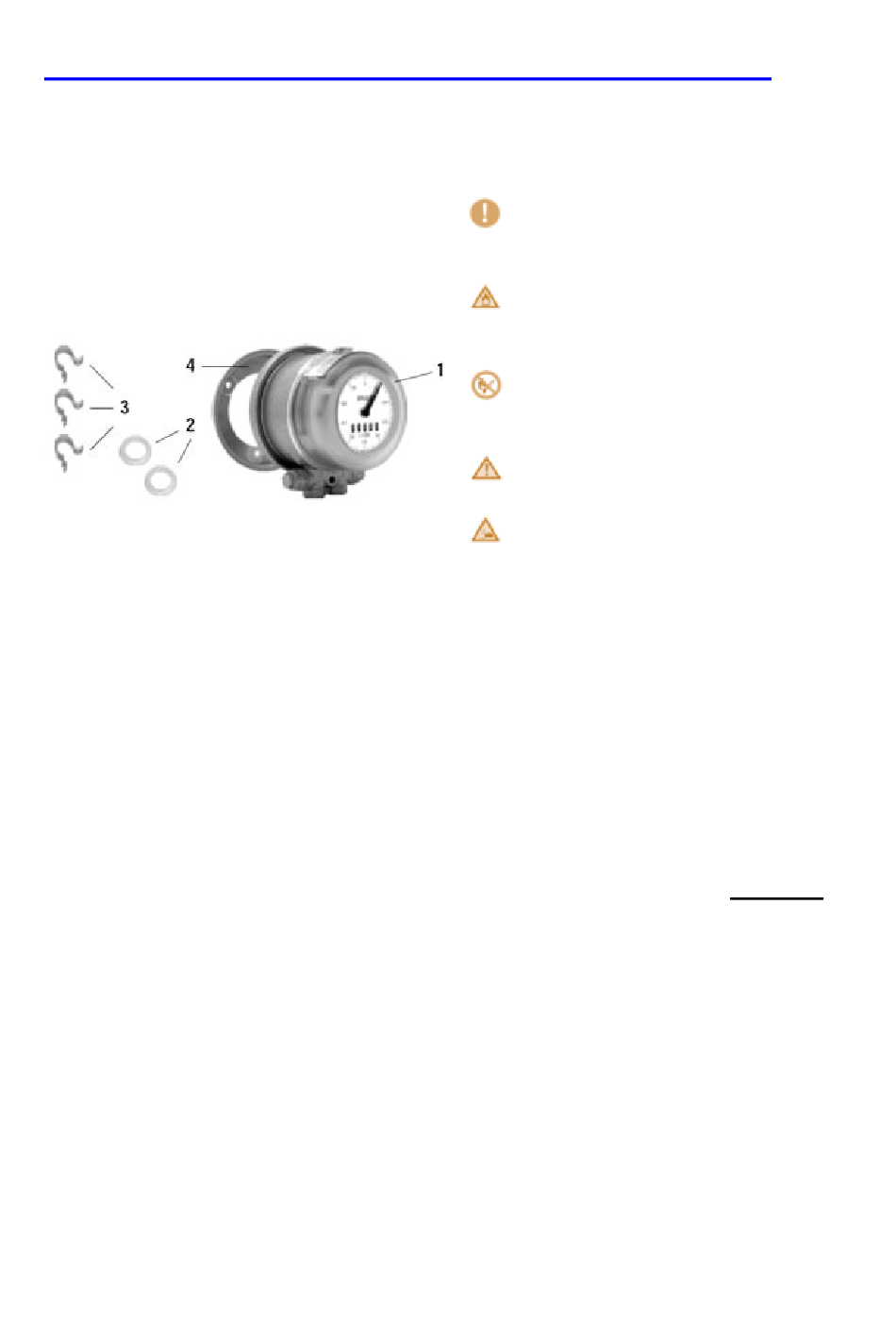

Scope of supply

1. HZ 3 oil meter or HZ 3 RR oil meter
2. Lip sealing ring (2 off)
3. Clamps (3 off)
4. Mounting plate
5. Mounting instructions

Purpose

The oil meter may only be used for measuring the consumption of heating oil (EL).

Mounting

1. Check measuring device and accessories for completeness and the required operating and
ambient conditions (-> see section:"Technical data").
2. Adapt the pipe line as appropriate. The measuring unit must be easily accessable!
In case of supply systems without pumps the intake height must be at least 1m!
•
Installing the oil meter on the suction side, a filter must be installed in front of
•
the oil meter with a mesh size of 50- 75 µ. Air inclusions must be avoi- ded since
they cause measu- ring errors. If necessary the pipeline system or the scre- wed
connections should be checked for tightness.
3. Clear any swarf and other conta- mination from the lines.

Safety advice

Before mounting the oil meter these
instructions must be carefully read
through and followed!
Danger of fire from combustible
liquids! Take great care during
grinding, cutting and welding work!
Fires, open lights and smoking are
forbidden! Always keep fire
extinguisher ready for use!
Danger of injury from sharp edges!
Be careful during mounting!
Danger of crushing! The falling
measuring unit can crush feet!
