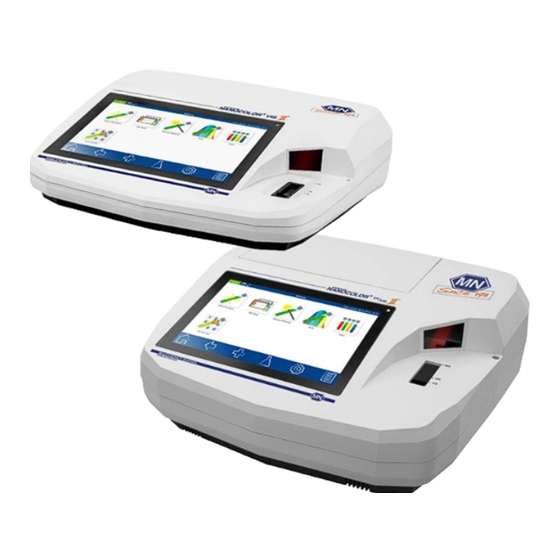

Macherey-Nagel NANOCOLOR VIS II Quick Start Manual

Smart photometry
Hide thumbs Also See for NANOCOLOR VIS II:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
Smart photometry
NANOCOLOR
VIS II
®
NANOCOLOR
/
II
® UV
VIS
Quickstart guide
Distributed By:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANOCOLOR VIS II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Macherey-Nagel NANOCOLOR VIS II

Summary of Contents for Macherey-Nagel NANOCOLOR VIS II

  • Page 1 Smart photometry NANOCOLOR VIS II ® NANOCOLOR ® UV Quickstart guide Distributed By:...

  • Page 3: Table Of Contents

    1. Introduction ..................5 1.1 Technical description ..................... 5 1.2 Technical details ....................6 2. Safety precautions ................8 2.1 Input supply ......................8 2.2 Biological risk ......................8 2.3 Protective clothing ....................8 2.4 Improper handling and warranty ................8 2.5 Damage of casing ....................8 2.6 Damage of cable ....................

  • Page 5: Introduction

    1. Introduction Welcome and thank you for deciding on a spectrophotometer from MACHEREY-NAGEL. The NANOCOLOR ® UV II / VIS II is a powerful, fast and compact spectrophotometer for water analysis, which is able to evaluate MACHEREY-NAGEL NANOCOLOR ® tube and standard tests.

  • Page 6: Technical Details

    1.2 Technical details NANOCOLOR NANOCOLOR VIS II ® UV ® Type: Spectrophotometer with reference detector technology (RDT) Light sources: Halogen lamp (visible range) Halogen lamp Deuterium lamp (UV range) Optical system: Monochromator Wavelength range: 190–1100 nm 320–1100 nm Wavelength accuracy: ±...
  • Page 7 Fuse: 2A TL – Dimensions (L / W / H): 400 / 440 / 170 mm 360 / 400 / 110 mm Weight: 6.5 kg 4.0 kg Warranty: 2 years Housing protection type: IP20 Protection rating: class 1 class 3 Declaration of conformity: EMC directive 2014-30-EU;...

  • Page 8: Safety Precautions

    2.4 Improper handling and warranty In case of improper handling or handling operation by untrained personnel, MACHEREY-NAGEL declines any warranty claims. 2.5 Damage of casing If the housing is damaged, the instrument needs to be sent in for repair. In such a case, the proper functioning of the instrument as well as the correctness of the measurement results cannot be guaranteed anymore.

  • Page 9: Damage Of Cable

    2.6 Damage of cable In case of a damaged cable, switch off the instrument and replace the cable immediately. 2.7 Transport For transporting the instrument, the cardboard box used for the initial shipment as well as the protective inner parts are perfectly appropriate. Therefore, we recommend kee- ping the box.

  • Page 10: Instrument Set-Up

    Remove the instrument and all other parts carefully. Check the package, inst- rument and accessories for visible damages. In case a part is damaged, please contact your distributor or MACHEREY-NAGEL’s technical support (see 8.5 Contact, p. 32). The following list contains all items inside the package. Please ensure that your ship- ment is complete.

  • Page 11: Outer Appearance

    4. Outer appearance 4.1 Front and side view Fig. 1: Front view Fig. 3: Front view VIS II Fig. 2: Side view Fig. 4: Side view VIS II a Stereo speakers b 10,1″ HD touch screen with PCAP c Universal cuvette slot for tube tests of 16 mm OD and rectangular cuvettes of 2 mm, 10 mm, 20 mm, 40 mm and 50 mm d Lamp compartment with halogen and deuterium lamp (SDHC card slot) e 2D bar code scanner...

  • Page 12: Back View

    4.2 Back view 1 2 3 Fig. 5: Back view 7 1 2 3 Fig. 6: Back view VIS II 1 USB A interface 2 USB B interface 3 Ethernet (LAN) interface 4 RS 232 interface 5 Connection for power supply 110-240 V (~ 50/60 Hz) 6 Main switch 7 SDHC card slot ( II refer to Fig.

  • Page 13: Operating Instruction

    ® can be found on the instrument’s back side. Turn on the instrument. Subsequently, a boot screen appears displaying the MACHEREY-NAGEL logo. Afterwards, the instrument performs a self test which takes about one minute. Next, a pop-up informing about the results of the performance check will be displayed.

  • Page 14: Operation And User Guidance

    5.3 Operation and user guidance The spectrophotometer features a 10.1″ HD display with a projective, capacitive touch screen (PCAP). The instrument’s cover-glass is non-reflecting. It can be easily and conveniently cleaned with the microfiber cloth included in your package or with a soft cotton cloth.
  • Page 15 5.3.1 Operation of the touch screen The spectrophotometer features a 10.1″ HD display with a PCAP touch screen sensitive to touches of one or more fingers. This enables handling by means of pressing or wiping on the screen with either fingers or a touchpen (special pen for projective, capacitive touch screens).
  • Page 16 By pressing this icon, one can activate additional features as long as they are available in the selected menu. Test icon: By pressing this icon, basic features as well as MACHEREY-NAGEL tests and applications, such as special methods, scan, color measurement or test number can be selected in the method menu.
  • Page 17 5.3.3 Favorites bar The instrument allows you to add favorites to the start screen to personalize the instru- ment and to provide quick access to the most preferred functions. Initially, the favorites bar features the icon for NANOCOLOR ® tube tests. Other icons can be added to the favorite bar by holding and moving them to the blue colored area.
  • Page 18 5.3.5 List functions When editing text or numeric fields, it is possible that a selection window with a list will be opened instead of a keyboard. This list can be scrolled down by finger movement on the display. A suitable field can be selected by touching it. The background of the currently selected entry will be colored.

  • Page 19: Methods

    6. Methods Methods Open Mode, 28.10.2014, 10:57 UV/VIS II Basis Functions MN Tests Special Methods Scan Color Test Number Fig. 15: Methods 6.1 Basic functions 6.1.1 Factor The basic function “Factor” enables the determination of measurement results through the multiplication of an absorbance with a user defined factor. After having selected this method, a window will appear asking for the factor and the wavelength for the measurement and calculation.
  • Page 20 6.1.2 Standard The basic function “Standard” enables the definition of a sample’s concentration c=E x c on basis of the concentration of a standard solution and a zero solution. After c=E x having selected this method, a window will appear asking for the standard con- centration and the wavelength for the measurement.
  • Page 21 6.1.3 Absorbance The basic function “Absorbance” enables the measurement of a sample’s absor- bance against a zero solution. After having selected this method, a window will Abs|E appear asking for the wavelength of the measurement. By pressing the button a set of wavelengths can be selected. It is possible to add up to 10 wavelengths to the list.
  • Page 22 6.1.5 Transmission The basic function “Transmission” enables the measurement of a sample’s transmission against a zero solution. After having selected this method, a win- dow will appear asking for the wavelength of measurement. By pressing the button a set of wavelengths can be added to the list. It is possible to add up to 10 wavelengths to the list.

  • Page 23: Mn Tests

    6.2 MN tests 6.2.1 Tube tests With the spectrophotometer MACHEREY-NAGEL tube tests can be selected in different ways. All test tubes are labeled with a barcode. When the start screen is active or the device is in measuring mode, the barcode of the inserted test tube will be scanned automatically.
  • Page 24 6.2.2 Standard tests MACHEREY-NAGEL standard tests can be selected in different ways. It is, however, not possible to select a standard test by barcode identification. The appropriate measurement menu for a specific standard test can be manually selected in the test menu from a list through .

  • Page 25: Scan

    6.3 Scan The spectrophotometer enables to record a sample’s absorbance in the range of 190–1100 nm (for NANOCOLOR ® UV II) or 320–1100 nm (for NANOCOLOR VIS II). Dependent on the selected wavelength range, the scan ® is performed with the light from the halogen and / or the deuterium lamp. The measure- ment is defined against a zero solution.

  • Page 26: Color Measurements

    6.4 Color measurements The spectrophotometer provides the possibility to determine different color types and furthermore allows the comparison of these with stored color refer- ences. After having selected this menu through , one can decide via option buttons to perform either a color measurement or a color comparison against a reference (as far as a color reference has been defined via the color analysis menu already).

  • Page 27: Test Number

    6.5 Test number The spectrophotometer provides the possibility to call up preprogrammed or user defined tests via the test number. After selecting the menu through , the test’s number can be inserted via the numeric keypad (for example: insert 044 for the NANOCOLOR ®...

  • Page 28: Data Memory

    7. Data memory The spectrophotometer features an internal memory as well as a slot for a micro SDHC card. All measurement results produced by the instrument are saved on this internal memory. The memory is subdivided into the IQC memory (see 7.2 IQC memory, p. 30) and the measuring memory (see 7.1 Measurement memory, p.

  • Page 29: Measurement Memory

    7.1 Measurement memory The measurement memory can save up to 5000 measuring results from cuvette tests, color measurements and scans. Together with the measurement results, all other sample information will be saved. This information will be linked to the measurement results in a tamperroof way, ensuring GLP conformity.

  • Page 30: Iqc Memory

    UV/VIS II Memory Open Mode, 28.10.2014, 10:57 0291 COD 605 nm Type Date & Time 17-09-2014, 10:42 User Open Mode Cuvette 14 mm 653 mg/L O Sample Number 0001 Dilution 0.200 E Sample Date & Time 16-09-2014, 09:05 Sample Type 2h mixed sample Location Inflow...

  • Page 31: Backup

    7.3 Backup The data stored on the instrument can be saved by performing a backup. This can be necessary for purposes of a data storage or due to safety concerns. and the submenu one can access the backup function. Here it is possible to save the data stored on the instrument’s internal SDHC card or a connected USB- drive.

  • Page 32: Service

    8.3 Waste disposal In compliance with local and national legal regulations (EU Directive 2012/19/EU), MACHEREY-NAGEL disposes old instruments free of charge. Note: Disposal using public waste disposal facilities is not permitted. In case of disposal, please contact your MACHEREY-NAGEL representative.
  • Page 33 Tel: +44(0)1954 233 100 - Fax: +44(0)1954 233 101 Technical support and customer service Email: sales@camlab.co.uk - Web: www.camlab.co.uk Filtration, Rapid Tests, Water Analysis: +49 24 21 969-332 csc@mn-net.com MACHEREY-NAGEL GmbH & Co. KG · Neumann-Neander-Str. 6–8 · 52355 Düren · Germany MACHEREY-NAGEL Germany Switzerland: France:...
