Pujol marathon DC Installation And Adjustment Instructions

Integrated receiver + trv card connector + battery kit (optional)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instrucciones de instalación y reglaje.
Intructions de montage et de reglage.
Istruzioni per l'installazione e la regolazione.
Installation and ajustament instructions.
Instruções de instalação e afinação.
Einbau-und einstellanleitung.

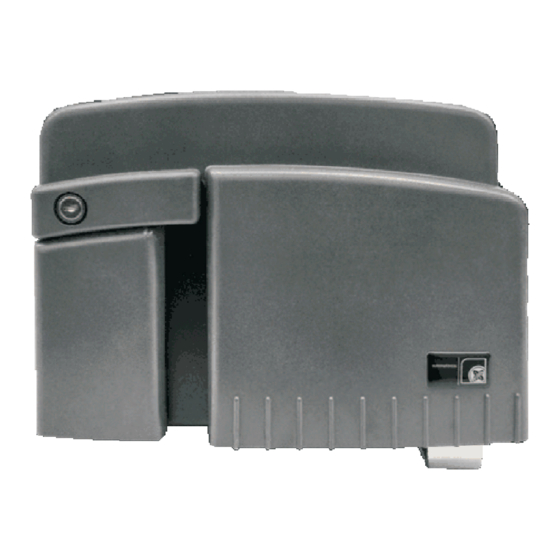

marathon DC
Receptor integrado + conector tarjeta TRV + kit
batería (opcional).
Récepteur Intégré + connecteur carte TRV + Kit
batterie (optionnel)
Ricettore Integrato + connettore scheda
TRV + Kit batteria (opzionale)
Integrated receiver + TRV card
connector + Battery Kit (optional)
Receptor integrado + conector placa TRV + Kit
bateria (opcional).
Integrierter Empfänger + Stecker für TRV-Karte +
Batterie-Set (optional).
service@pujol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the marathon DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pujol marathon DC

Summary of Contents for Pujol marathon DC

  • Page 1 Intructions de montage et de reglage. Istruzioni per l’installazione e la regolazione. Installation and ajustament instructions. Instruções de instalação e afinação. Einbau-und einstellanleitung. marathon DC Receptor integrado + conector tarjeta TRV + kit batería (opcional). Récepteur Intégré + connecteur carte TRV + Kit batterie (optionnel)
  • Page 2 DC Fig. 5 90 66 Fig. 5 automatismos pujol...
  • Page 3 DC 2000266831 230V FUSIBLE 2A 230V TARJETA RADIO LUZ G. 220V RELE LUZ G. DESTELLO RELE DESTELLO PROG VBAT EMISORES Radio Strength +24V Absorption EXTERNA AMORT FUERZA INTERNA RADIO RELE CERRAR C.SEG1 TEST RELE ABRIR P.CER. P.AB SENSOR PROG RECORRIDO C.SEG...
  • Page 4 7. Automatismos Pujol cannot be held responsible for incompliance of good manufacturing techniques of the motorized doors deformations which can take part in its use. 8. Automatismos Pujol cannot be held responsible for any damage caused by improper use or different from the use for which the device is destined to.

  • Page 5: Technical Specifications

    For the user's safety, any movements that have a risk of crushing, cutting or dragging should be eliminated or properly controlled. Automatismos Pujol advises that sliding doors must have mechanical safety bumpers at the end of the strokes so as to not pose any risks, thereby complying with UN 12445.

  • Page 6: Terminals Description

    SELECTINGTHETYPE OF OPERATION Microswitch no. 2 allows the selection of the type of operation. Switch 2 OFF, mode A .There is no pre-warning on the flash light lamp before beginning the maneuver. . Each operation on the maneuver input causes it to be reversed .The close safety causes re-opening.
  • Page 7 STRENGTH REGULATION Turning the strength potentiometer clockwise, allows the door to exert more strength before it stops and reverses, when overexertion is detected by the hall sensor. When it is turned counter clockwise, the sensor becomes more sensitive in the event of an obstacle.

  • Page 8: Safety Device

    PEDESTRIAN OPENING (microswitch No. 7 ON) This function allows a pedestrian (partial) opening of the door. Controls programmed to the 2nd Channel must be used (receiver incorporated) or enter using the open button on terminals 5 and 6 which changes to pedestrian.
  • Page 9 PHOTOCELL CONNECTION ON OPENING RESISTIVE BAND CONNECTION Microswitch 4: OFF Microswitch 4: ON 9 10 11 12 13 9 10 11 12 13 8,2 K PHOTOCELL CONNECTION WITH TEST 9 10 11 CONNECTION DIAGRAM a a a a...
  • Page 10 OPTIONAL BATTERY (Fig.7) This Kit will allow your MARATHON DC to continue operating when the mains power is cut. The kit comes with a base plate on which are placed two 12 V batteries, a small control circuit and wiring. When the mains power is connected, the control circuit automatically keeps the batteries charged.

  • Page 11: Troubleshooting

    Troubleshooting Troubleshooting Problem Possible cause Solution The door does not Lack of power Check the terminals 17 and 18 or 28 and 29 to detect if they have open or close 230 V. Unlocked engine Lock the engine to activate the safety device. Check the led.
  • Page 12 AFTER SALES SERVICE TERM OF GUARANTEE Automatismos Pujol guarantees its door actuators, electrical equipment and supplements against any manufacturing failures for a period of 2 years from the date they are provided. LIABILITIES Automatismos Pujol undertakes to repair equipment subject to guarantee, prior revision by our technical department.
