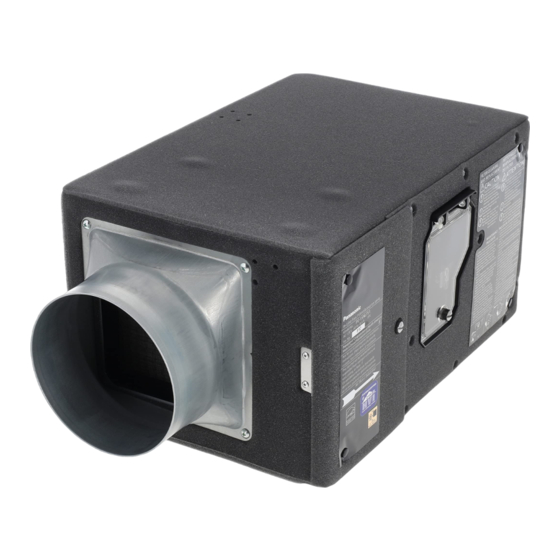

Service Manual In-Line Fan (North America Market) FV-15NLFS1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
2. Parts Identification FV-15NLFS1 Main Body Section (4pcs) (3pcs) (4pcs) (2pcs) a a a a (4pcs) a a a a a a a a a a a a (6pcs) (3pcs) (2pcs) (2pcs) (8pcs) (2pcs) (5pcs) (4pcs) (3pcs) (2pcs) (4pcs) Packing Section...
4. Parts List FV-15NLFS1 Main Body Section Part No. Part Name Q'ty Remark FFV3700370S Motor Panel Assy FFV1610087S Pre Filter Assy FFV4300158S Merv8 Filter Merv 8 FFV4300159S Merv13 Filter Merv 13 FFV6710053S Wiring Cover Assy FFV5580017S Switch Assy FFV5500042S Sensor Cap...
4. Parts List FV-15NLFS1 Main Body Section Part No. Part Name Q'ty Remark FFV2230012S Fan Casing Support FFV9001364S Packing Case Assy FFV7000018S Truss Tap Screw FFV7000073S Truss Tapping Screw FFV7000233S Screw FFV7000124S Truss Tap Screw FFV7000191S Bind Screw FFV7000074S Truss Tap Screw...
