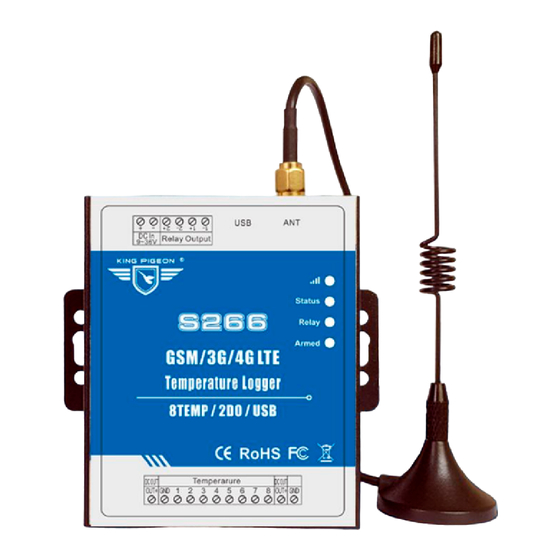

King Pigeon S264 User Manual

Gsm/sms/gprs/3g/4g, temperature & humidity data logger, temperature & humidity monitoring alarm
Hide thumbs Also See for S264:
Table of Contents

Advertisement

Quick Links

Please scan the barcode to download the APP
GSM/SMS/GPRS/3G/4G
Temperature & Humidity Data Logger
Temperature & Humidity Monitoring Alarm
Inquiry Onsite Temperature &
Humidity with SMS!
High-Low Threshold alarm
with SMS text Message alert!
Interval Report Onsite
temperature & humidity to
Your Mobile Phone by SMS!
S264/S265/S266
User Manual
Ver 2.0
Date Issued: 2017-11-08
King Pigeon Hi-Tech. Co., Ltd.
www.GPRS-M2M.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S264 and is the answer not in the manual?

Questions and answers

Related Manuals for King Pigeon S264

Summary of Contents for King Pigeon S264

  • Page 1 & humidity to Your Mobile Phone by SMS! Please scan the barcode to download the APP GSM/SMS/GPRS/3G/4G Temperature & Humidity Data Logger Temperature & Humidity Monitoring Alarm S264/S265/S266 User Manual Ver 2.0 Date Issued: 2017-11-08 King Pigeon Hi-Tech. Co., Ltd. www.GPRS-M2M.com...

  • Page 2: Table Of Contents

    Upgra de Fir m war e ------------------------------------------------------------- 24 Warranty ----------------------------------------------------------------------------24 This handbook has been designed as a guide to the installation and operation of S264/265/266 GSM SMS GPRS 3G 4G Temperature&Humidity Monitoring Alarm. Statements contained in the handbook are general guidelines only and in no way are designed to supersede the instructions contained with other products.

  • Page 3: Brief Introduction

    Server room, Warehouse, Drug store, Medicine center, Seafood storage, Aquarium, Supermarket, hospital, Hotel; Weather Stations remote control and data logging, Transformer stations, BTS room, agriculture, Supervision and monitoring alarm systems, etc. Page 3 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...

  • Page 4: Safety Directions

     Support configure parameters, load profiles, export historical data and upgrade the firmware via PC;  Wall mount or 35mm standard DIN rail Design, convenient installation,  Metallic cover, small size, exterior dimension is L70*W88*H30mm. Page 4 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...

  • Page 5: Specifications

    Alarm indicator, while alarm occurrence, will turn on. Armed indicator, in Armed mode, will turn on, in disarm mode, will turn off. Relay indicator, any one relay close, will turn on. 6.2 Interface Instructions for installation Page 5 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 6 Connect to DS18B20 sensor VCC wire, (Red wire). Temperature & GND , Connect to AM230x or DS18B20 GND wire, (black wire). Humidity Input Data port, connect to the 1 AM230x or DS18B20 Data wire, (Yellow/Green wire). Page 6 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...

  • Page 7: Initialize/Reset The Gsm Unit

    The PC Configuration in the CD, please click it to run it. Also can download from www.GPRS-M2M.com under S264/5/6 page directly. Below is the steps to setup the parameters by PC Configuration, please follow it step by step. Start to Configure:...
  • Page 8 Choose the correct "COM port" in device manager above, enter the password(default is 1234),click the "Login" to connect and start to program Details please check the picture as below: Page 8 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 9 【Reboot】：Restart the device and open the configuration software. 【Language】： 【Chinese】：Set the configurator language to Chinese. 【English】：Set the configurator language to English. 【Skins】：Choose color for configuration software (Reserved). 【Help】： 【About】：Configuration software relative information. Page 9 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 10 Tick it,Alarm dialling will dial continue if not press the button,until press the * or # button. Device ID: (0~65535) non-necessary. This is mainly for monitoring center to identify the data logger; If communicate via Modbus protocol, device ID only can be 1~255. Page 10 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 11 Channel Name: To setup the channel name, default "Relay + Serial number ",max 40 digits. Close Time: Independent control is not set here, it is only for timer and alarm-link close time.(0~9999s) ,default 0 ,means always close. Page 11 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 12 Low Alarm SMS Content: To setup the SMS Content when low alarm, max 40 digits. Alarm Recovery SMS Content: Setup SMS Content when value back to normal from alarm, max 40 digits. Enable: Tick it to enable this Channel. Page 12 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 13 GPRS Failure: Tick it stands for enable the SMS notification when the GPRS connection failure. Low GSM Signal: Tick it stands for enable the SMS notification when the GSM signal is Page 13 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 14 Everyday 19:23, Data Logger will close the relay 1 automatically.(Relay close time is according to the Close Time (Range 0~9999S)) Tips: Action: If the action is for DOUT (relay),then the relay working time is depend on the DOUT parameter. Page 14 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 15 This Page is for setup the GPRS online parameters, GPRS Transport data protocol and Server information. Only when you have Server or need to use GPRS to transmit data then need to setup these parameters. The GPRS Protocol details please refer to <S264/5/6 GSM 3G 4G Temperature & Humidity Data Logger GPRS/3G Protocol Instruction>.
  • Page 16 Delete All: Delete all historical records in device, if 200000 records, delete them should need around one hour. Search: After setting the time period, click the button to search historical records in this time. Choose the time to search the historical records. Page 16 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...

  • Page 17: Sms Commands & Operation

    When you setup the number as the authorized number, please setup as 008613600000000 or +86136000000000. Not 13600000000. SMS Format Error, 7. If the password is correct but the command is incorrect, the S264/5/6 will return: Please check Caps Lock in Command! So please check the Command, or add the country code before the telephone number or check the input is in ENGLISH INPUT METHOD and CAPS LOCK.
  • Page 18 If you GSM Operator cannot provide the time source then must setup the system time after power on. Otherwise, the S264/5/6 will run it at mistake time. If you GSM Operator can provide time source, then no need to setup this time, but must setup the SIM Card number as 1) required.) For yy/mm/dd/hh/mm, each have two digits in the command.
  • Page 19 Daily SMS Report at: xx:xx Delete PWD +DRTDEL (means not report, default) 11) Setup Periodically SMS Report Interval Time SMS Command Return SMS Content Setup PWD +DTxxxxx Periodically SMS Report Page 19 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 20 Number+T+Channel AIN2:Humidity(Default) Temperature & Name ..Humidity AIN15:Temperature(Default) (Series number: two digits, Channel Name AIN16:Humidity(Default) S264 is 01~08,S266 is 01~16; Name max 40 digits) AIN1:Temperature(Default) 1234AIN0102 to inquiry 1 and 2 Inquiry the PWD+AIN+Series AIN2:Humidity(Default) Channel name Channel Name Number<nn>...
  • Page 21 Number=Channel Name TEMP/ Humidity: yyy 1234AIN01Q002 Setup the PWD+AIN+Series Seconds This command set the alarm Temperature & Number+Qyyy verify time is 2 Humidity Alarm (Notice: The AIN and Q is Page 21 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 22 Online password+GPRSOFF GPRS/3G Off 18) Setup the GPRS Communication Protocol SMS Command Return SMS Content Enable GPRS: PWD+GPRSON+x GPRS/3G Notice: GPRSON is fixed character; X=1、2; 1:Modbus 2:Definition Protocol) Page 22 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
  • Page 23 Set Successfully Note:Continue dialing if did not press the button after the answered,Press * or # button to stop dialing. More other SMS Commands for special requirements please contact us. Page 23 of 24 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...

  • Page 24: Data Communication Protocol

    0x01 11. Upgrade Firmware The S264/5/6 supports upgrade firmware via USB port directly. If we upgraded the firmware functions of the data loggers, we will inform you to upgrade the firmware if you required. If there any new requirements of the present functions caused it should update the firmware, the user can upgrade them directly by USB port.
