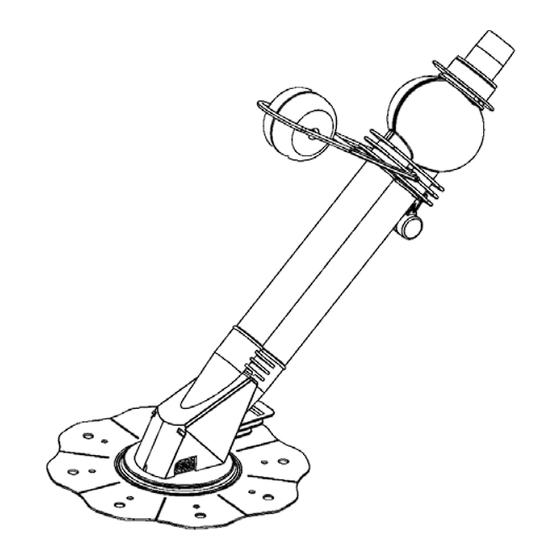

HurriClean Automatic Above Ground Pool Cleaner
I.
Preparation of Your Pool
Before assembling and installing your cleaner, your pool should be clean and algae-free so as not to inhibit the
cleaner's traction. If necessary, make the following preparations before proceeding:
1.
Chemically balance the pool water.
2. Brush pool and let the debris settle.
3.
Hand vacuum thoroughly.
4.
Clean filter
II. Assembly
Remove the body and all of its parts from the box and check sure that all components were included.

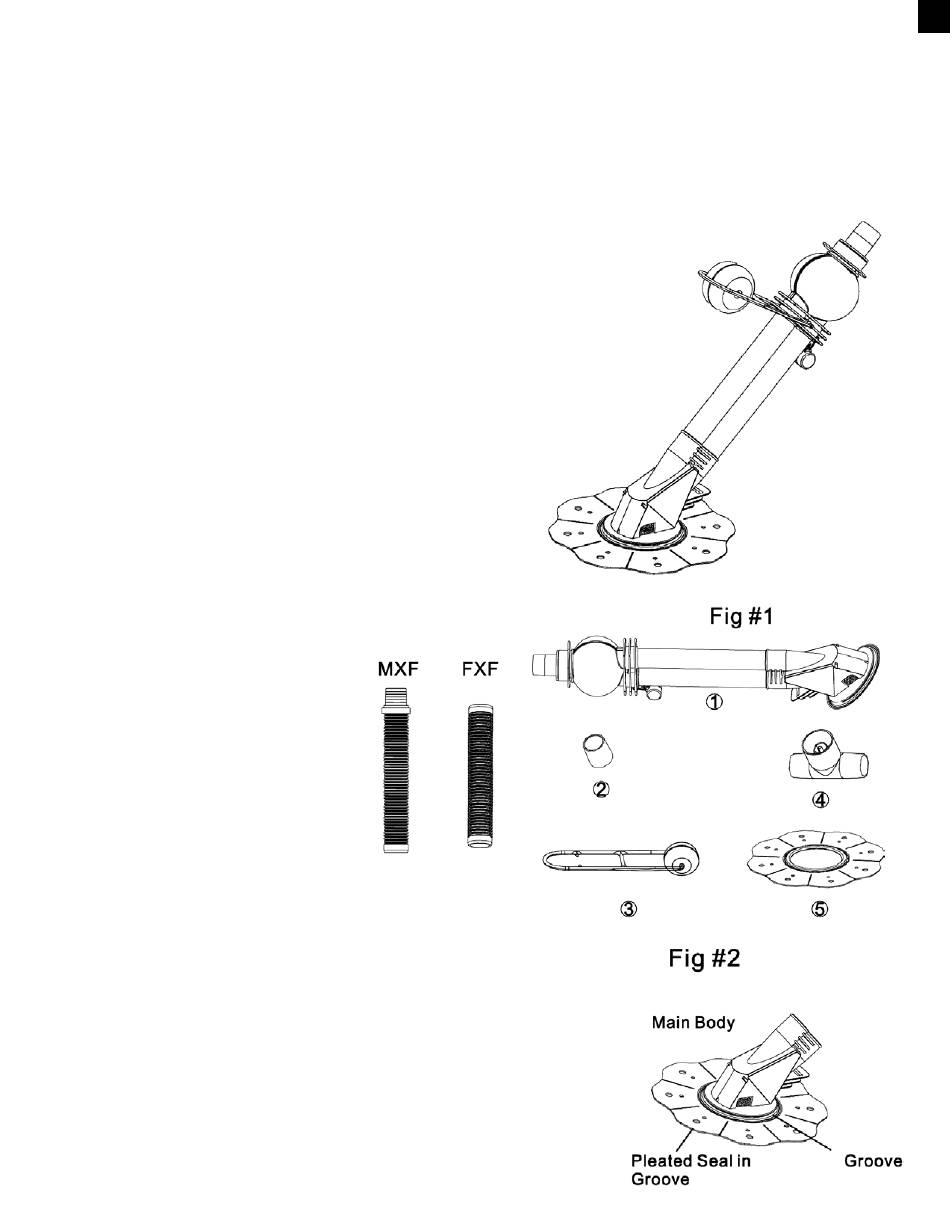

Refer to Figure 1.
Components Check List
1.
Body
2.
Cone
3.
Float Assembly
4.
Automatic regulator valve
5.
Pleated seal
6.
Hose (11PCS MX F)
(1 pcs FX F)
Step 1.
Attach The Seal
To install seal, slip the seal over the foot pad and pull gently until it
seats itself on the other side in its groove as illustrated in Figure 2.
Seal must be installed flat side down, pleated side up. Once in place,
the seal should rotate and turn freely.
Step 2.
Attach Float
Step 3.
Attach Cone To Reg Valve And Insert Reg
Valve To Female Hose Section.
Step 4.
Attach the remaining hoses
Assembly Instruction
EN
NE4375
Advertisement
Table of Contents
Related Manuals for Blue Wave HurriClean NE4375
Summary of Contents for Blue Wave HurriClean NE4375
- Page 1 HurriClean Automatic Above Ground Pool Cleaner NE4375 Assembly Instruction Preparation of Your Pool Before assembling and installing your cleaner, your pool should be clean and algae-free so as not to inhibit the cleaner's traction. If necessary, make the following preparations before proceeding: Chemically balance the pool water.
- Page 2 III. Installation 1. Fill the hose sections with water to eliminate air pockets 2. Adjust regulator valve if needed. Twist and push the female ends onto the male ends after dipping the ends into the pool to wet them. See Figure 3.
- Page 3 Balayeuse automatique pour piscines hors terre HurriClean NE4375 Instructions d’assemblage Préparatifs Avant d’assembler et d’installer votre balayeuse, votre piscine doit âtre propre et sans algues de sorte à ne pas nuire à la traction. Si nécessaire, achevez les préparatifs suivant avant de commencer: 1.
- Page 4 III. Installation 1. Remplir les sections du tuyau avec de l’eau afin d’éliminer les trous d’air. 2. Ajuster la bande d’étanchéité si nécessaire. Tourner en poussant le raccord femelle à l’intérieur du raccord mâle après avoir trempé les raccords dans la piscine afin de les mouiller.
