23.7.3 Jump commands JMP

JMP/terminals
Structure
Example
JMP/comparison
330
The program jumps to the specified label if the input terminals marked in the mask are
all set to level 1 or level 0 (AND relation).
The bits 0 ... 5 indicate the terminals of the basic unit, bits 6 ... 13 the terminals of the

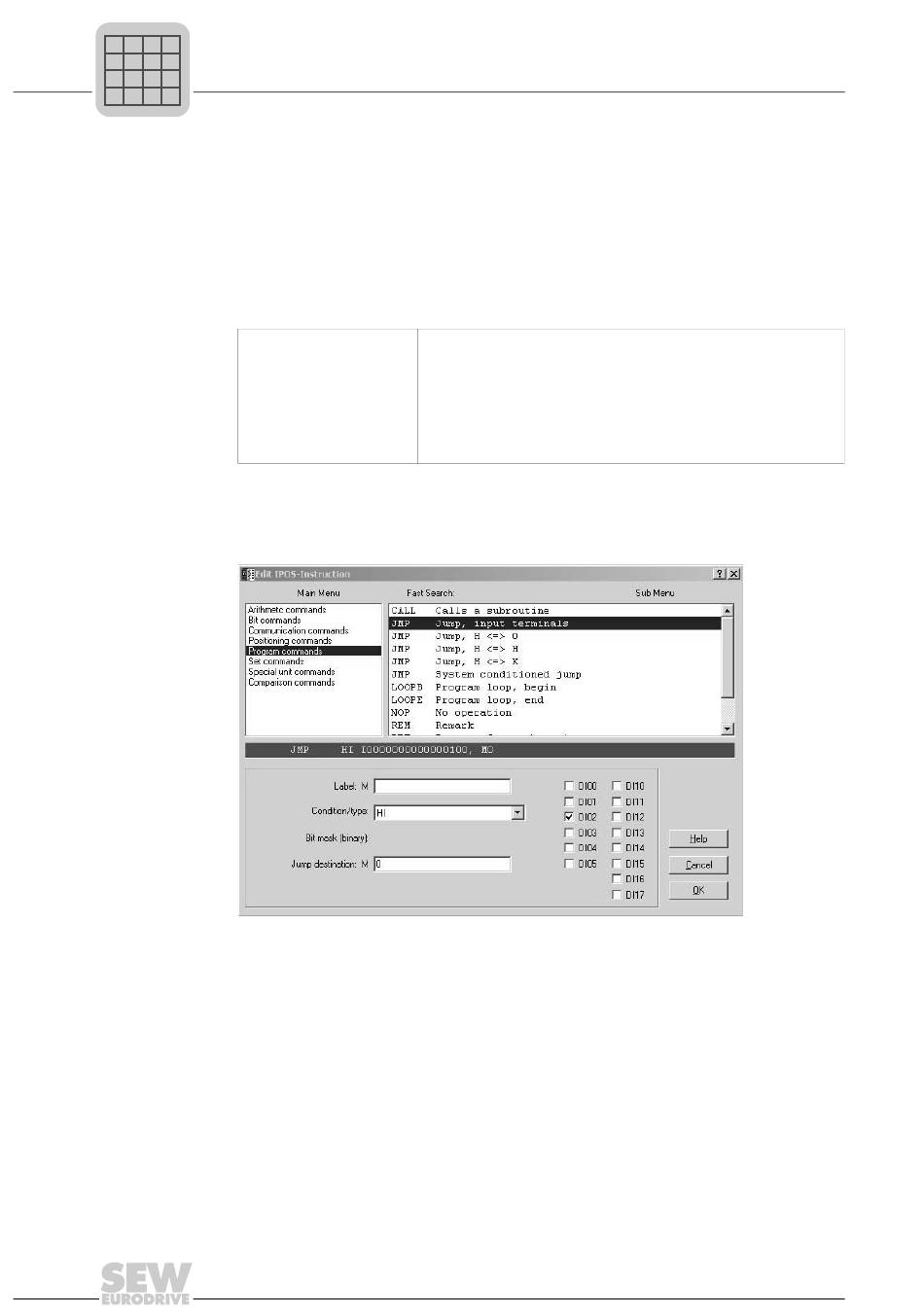

option card (DIO11A). The mask is created by entering the terminal levels directly in the
input window.
Command structure
Mxxx JMP X1 X2, Myyy
JMP HI I 0000000000000011, M03
After the JMP command has been performed, processing continues from the M03 label
if the input terminals DI00 and DI01 are set to level 1.
The JPM command causes the program to jump to a specified label when comparison
in the command results in a true statement.
Mxxx: Label (optional)
X1: HI= Jump if the input terminals marked in the mask are set to
level 1.
LO= Jump if the input terminals marked in the mask are set to
level 0.
X2: Ixxx ... = Mask for the input terminals.
Myyy: Jump label to which the program branches.
515191051
