Sonic Meter Soni Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sonic Meter
®
Soni
Operating Manual
Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soni and is the answer not in the manual?

Questions and answers

Related Manuals for Sonic Meter Soni

Summary of Contents for Sonic Meter Soni

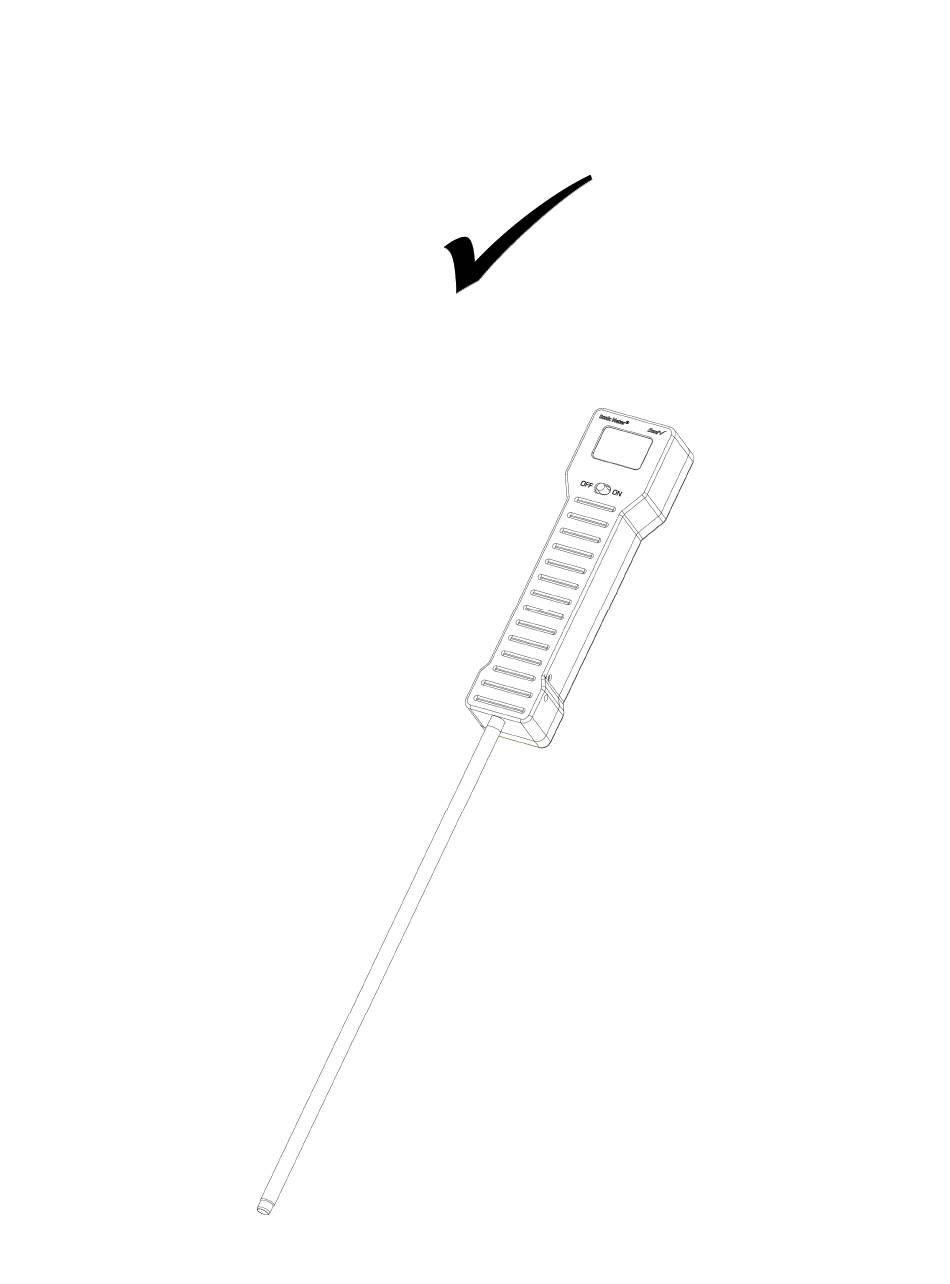

  • Page 1 Sonic Meter ® Soni Operating Manual Rev. A...
  • Page 2 Important: Do not attempt to operate this instrument without completely reading this manual and understanding the correct operating procedures. For online technical support and further information refer to our web site at www.sonicmeter.com Rev A-815...

  • Page 3: Table Of Contents

    1.5 Electromagnetic Compatibility 2. Introduction 3. Description 3.1 Sonic Meter 3.2 Keypad 3.3 LCD display 3.4 Sonic Meter probe 3.5 Battery Charger 3.6 Batteries 4. Operation 4.1 Changing the batteries 4.2 Resetting the circuit breaker 4.3 Powering up the meter 4.4 Reading the display...

  • Page 4: Batteries

    Soni Important: Never operate the Sonic Meter and probe in areas where high voltage potentials are not properly contained. NOTE: Please read and understand the entire manual before operating the Sonic Soni . Meter...

  • Page 5: Introduction

    2. Introduction: Soni Sonic Meter is a pressure sensitive measuring device. It is designed to help maintain the quality and integrity of parts during cleaning cycles in ultrasonic cleaners. Ultrasonic cleaners utilize a transducer attached to the tank’s exterior. The transducer outputs pulsating mechanical energy at high frequencies (ultrasonic), which cause the liquid in the tank to agitate.

  • Page 6: Description

    The LCD is a four digit, high contrast display. Precision is one decimal place. The units are in psi (lbs. /in²) 3.3 Sonic Meter Probe: The probe is made of 304 stainless steel with the sensing transducer located at the bottom tip.

  • Page 7: Battery Charger

    The battery charger should only be powered by 120/240Volts AC at 50/60Hz. The plug type is NEMA 5-15. 3.5 Batteries: Soni Sonic Meter ships with 8 AAA Nickel Metal Hydride (NiMH) batteries. The meter uses 4 AAA NiMH batteries rated 1.2V/800mAh or higher.

  • Page 8: Operation

    4. Operation: 4.1 Changing the Batteries Phillips Screwdriver #6-32 Flat Head Screw Battery Cover Retaining Tab 4X AAA Batteries Probe Figure 2 Figure 3 shows how the 4 AA batteries are removed. With a Phillips screwdriver, unscrew the 6-32 flathead screw from the back of the meter.

  • Page 9: Resetting The Circuit Breaker

    Observation: The meter will power on, but the battery percentage will not be displayed, and keypad keys will not function. Reinstall the battery correctly. 2. Two or three batteries were installed with the incorrect polarity. Observation: The meter will not power on. Reinstall the batteries correctly. 3.

  • Page 10: Powering Up The Meter

    Waiting 1 minute allows the probe to come to full charge. 4.4 Reading the Display When operating the Soni , you will notice the output of the ultrasonic readings can vary. The Soni reads in real time only. In order to take represented readings of your tank’s output, a technique of visual approximation will have to...
  • Page 11 Factors that determine the tanks pressure output: Pressure levels can vary by as much as +10psi each time a different set of measurements is taken. The factors that determine this variance are: • Degas time • Tank temperature • Part geometry •...

  • Page 12: Appendices

    12bit ADC to digitize the analog signal coming from the probe’s transducer. The precision of the meter is +3psi. Soni consumes current at a rate Battery life (hours): The Sonic Meter 150mA/hour. The NiMH batteries are rated at 800 to 1000mAh. For continuous use, the meter will run approximately 5 hours before batteries will need to be recharged.

  • Page 13: Warranty

    2. Case: # Soni-Chk-case 3. Manual: # Soni-Chk-manual 4. Battery charger: # Soni-Chk charger 5. Batteries: # Soni-Chk-battery D. Warranty The manufacturer, SyncroCraft®, LLC, warrants the Sonic Meter Soni against defects in materials and workmanship for a period of 12 months from the date of shipment to the original purchaser.
  • Page 14 E. Authorized Dealers For Sales or Service in the United States, North and South America, or Europe contact: SyncroCraft, LLC 16225 Camino del Sol Los Gatos, CA 95032 Tel: (408)438-0597 e-mail: syncrocraft@comcast.net URL: http://www.sonicmeter.com For Sales or Service in Asia contact: Shinka Industry Co., Ltd.
