Important: Do not attempt to operate this instrument without completely reading this manual and understanding the correct operating procedures. For online technical support and further information refer to our web site at www.sonicmeter.com Rev A-0915...
2. Introduction 3. Description 3.1 Sonic Meter 3.2 Keypad 3.3 LCD display 3.4 1 meter cable 3.5 Sonic Meter probe 3.6 Battery Charger 3.7 Batteries 4. Operation 4.1 Changing the batteries 4.2 Resetting the circuit breaker 4.3 Powering up the meter 4.4 Options...
1. Safety Issues: 1.1 Batteries: Sonic AO is powered by 4 AAA Nickel Metal Hydride Sonic Meter (NiMH) batteries rated at 1000mAh. The meter is fault protected against reverse polarity via a resettable circuit breaker. The meter ships with 8 AAA batteries.
(scrub-force). Or several readings can be taken and averaged to determine the mean value pressure of a particular cleaner. Sonic AO measures in units of pounds per square inch (psi). Sonic Meter The Sonic AO works with tanks that use frequencies up to 500kHz.
Page 6

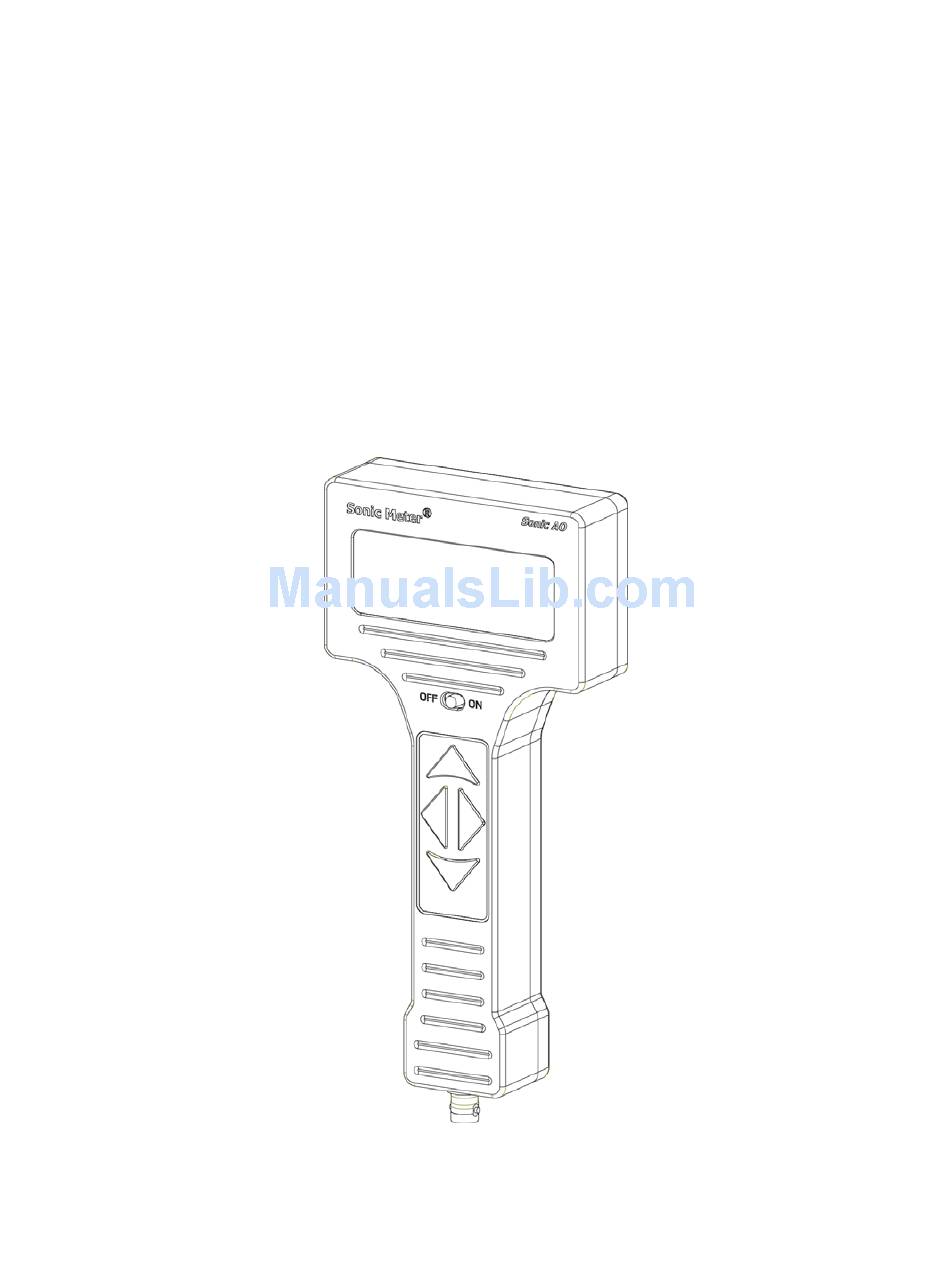

Sonic Meter Figure 1 shows the main components of the 3.1 Sonic Meter: Sonic AO is packaged in an ergonomic T-shaped housing. The Sonic Meter housing is made of aluminum with a durable anodized surface. The housing is not waterproof.
3.2 Keypad: Scroll Up Scroll Right Scroll Left Scroll Down Figure 2 Figure 2 shows the designations of the keypad’s four keys. The keypad utilizes membrane keys with a color Mylar overlay. There are four keys that control the meter Scroll Up: Color designation is yellow.
The battery charger should only be powered by 120/240Volts AC at 50/60Hz. The plug type is NEMA 5-15. 3.7 Batteries: Sonic AO ships with 8 AAA Nickel Metal Hydride (NiMH) Sonic Meter batteries. The meter uses 4 AAA NiMH batteries rated 1.2V/800mAh or higher.
4. Operation: 4.1 Changing the Batteries Phillips Screwdriver #6-32 Phillips Screw Battery Cover 4X AAA Batteries Retaining Tab Figure 3 Figure 3 shows how the 4 AAA batteries are removed. With a Phillips screwdriver, unscrew the 6-32 Phillips screw from the back of the meter.
If the batteries are installed with the incorrect polarity, one of three situations will be evident: 1. One of the 4 batteries was installed with the incorrect polarity. Observation: The meter will power on, but the battery percentage will not be displayed, and keypad keys will not function.
4.3 Powering up the meter Options: Batt.=100% →1. Real time reading 2. Averaged reading 3. Setup ON/OFF Power Switch Figure 5 To power the meter on, move the Power Switch to the right as shown in Figure 5. Note: Before taking measurements, wait approximately 1 minute after powering up the meter.
Page 12
Scroll Right Figure 6 The following screen will appear on the LCD as shown below in Figure 7. Pressure=###.##psi < ###.##psi > High ###.##psi Figure 7 The real time pressure (psi) is displayed along with the operator’s specified Low and High range limits as shown above in Figure 7. The Low and High range limits are input into the meter’s non-volatile memory at the Setup stage, which will be explained in section 4.8 Setup.
Page 13
The High range limit indicator is a “>” symbol that is displayed in the upper right- hand corner. Refer to Figure 9. This indicator appears when the pressure reading is more than the acceptable High range limit value XXX.XXpsi. For example: If the High range limit is > 25.00psi and the actual pressure reading equals 25.01psi, then the High range limit indicator “>”...
Page 14
4.7 Averaged readings Options: Batt.=100% 1. Real time reading Scroll Left →2. Averaged reading 3. Setup Scroll Down Figure 11 At the Option menu, scroll down to 2 position as shown above in Figure 11. If the meter is not at the Option menu press and hold the Scroll Left key. With the selection arrow at the 2 position, press and release the Scroll Right key to select the Averaged reading option.
Page 15
Pressure=###.##psi 1. Begin readings →2. Samples=#0 3. Interval=##.##sec Figure 13 With the selection indicator at the 2 position, press and release the Scroll Right key. An underscored flashing cursor will appear in the ones digit of the Samples value as shown above in Figure 13. The number of samples can range from 0 to 40.
Page 16
The time interval between samples can range from 0.01 to 99.99 seconds. Pressure=###.##psi 1. Begin readings 2. Samples=10 →3. Interval=##.28sec Figure 16 With cursor still in the hundredths digit, use the yellow Scroll Up or Scroll Down buttons to change this number. When the desired hundredths digit is set, press and release the Scroll Left key once.
4.8 Setup From the Options menu, scroll down to the 3 option as shown below in Figure Options: Batt.=100% 1. Real time reading 2. Averaged reading →3. Setup Figure 19 With the selection indicator at the 3 position, press and release the Scroll Right key.
Page 18
Figure 22 Use the same procedure to setup the median as was previously used for setting up the limits. Now set the probe sensitivity. Sonic Meter ® Each probe sold with each has a unique sensitivity value. Because of this, the probe sensitivity value will have to be changed whenever the probe is switched among meters or a probe has been replaced due to damage.
Use the same procedure to setup the probe sensitivity as was previously used for setting up the limits and median. Refer to Appendix E for the probe’s sensitivity value. 4.9 Powering off the meter To power off the meter, simply move the ON/OFF switch to the left as shown in Figure 24.
Page 20
Average pressure: For precise pressure readings, set the meter in averaged reading mode. Averaged reading mode is useful for determining the pressure levels of a particular point or the tanks overall output For a good starting point, set the number of samples to 10, and the interval to 1 second.
Temperature Operating Range: -65 to 250 F or –55 to 120 C Performance: Real time reading samples pressure every 50msec. Averaged reading can sample 0-40 readings at sample intervals of 10msec to 99.99sec. Sonic AO uses a 12bit ADC to digitize the Sonic Meter Accuracy: The analog signal coming from the probe’s transducer.
2. Probe: # Sonic AO-probe 3. Cable: # Sonic AO-cable 4. Case: # Sonic AO-case 5. Manual: # Sonic AO-manual 6. Battery charger: # Sonic AO-charger 7. Batteries: # Sonic AO-battery D. Warranty Sonic Sonic Meter ® The manufacturer, SyncroCraft...
Page 23
E. Authorized Dealers For Sales or Service in the United States, North and South America, or Europe contact: ® SyncroCraft , LLC 16225 Camino del Sol Los Gatos, CA 95032 Tel: (408)438-0597 e-mail: syncrocraft@comcast.net URL: http://www.sonicmeter.com For Sales or Service in Asia contact: Shinka Industry Co., Ltd.
