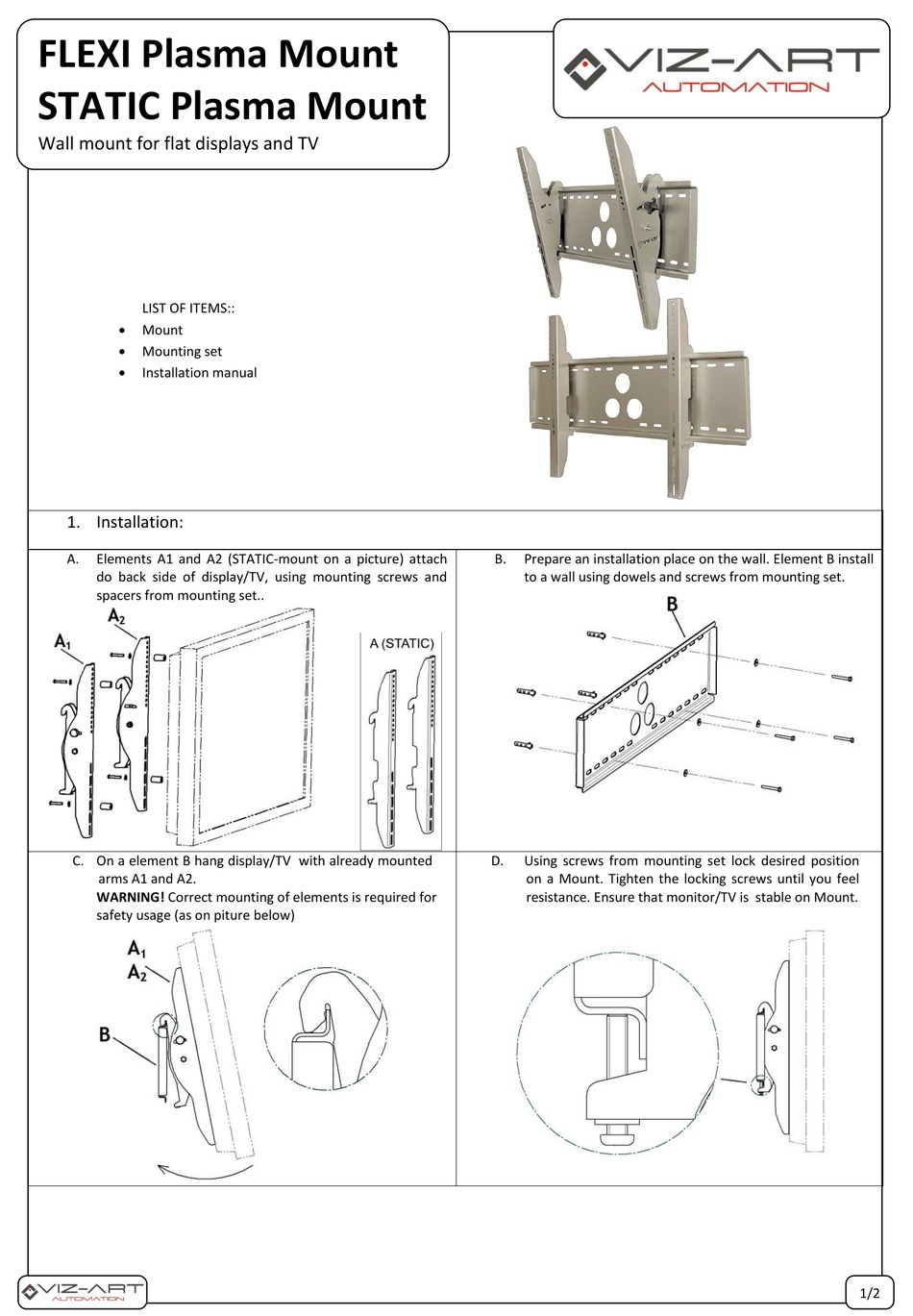

FLEXI Plasma Mount
STATIC Plasma Mount
Wall mount for flat displays and TV
LIST OF ITEMS::
Mount
Mounting set
Installation manual
1. Installation:
A.
Elements A1 and A2 (STATIC-mount on a picture) attach
do back side of display/TV, using mounting screws and
spacers from mounting set..
C. On a element B hang display/TV with already mounted
arms A1 and A2.
WARNING! Correct mounting of elements is required for
safety usage (as on piture below)
B.
Prepare an installation place on the wall. Element B install
to a wall using dowels and screws from mounting set.
D.
Using screws from mounting set lock desired position
on a Mount. Tighten the locking screws until you feel
resistance. Ensure that monitor/TV is stable on Mount.
1/2
Advertisement
Table of Contents
Related Manuals for Viz-Art Automation FLEXI
Summary of Contents for Viz-Art Automation FLEXI
- Page 1 FLEXI Plasma Mount STATIC Plasma Mount Wall mount for flat displays and TV LIST OF ITEMS:: Mount Mounting set Installation manual 1. Installation: Elements A1 and A2 (STATIC-mount on a picture) attach Prepare an installation place on the wall. Element B install do back side of display/TV, using mounting screws and to a wall using dowels and screws from mounting set.
-
Page 2: Technical Specification
3. Technical Specification: FLEXI Plasma Mount Product model: STATIC Plasma Mount Adjustment: FLEXI Plasma Mount – up to 31° STATIC Plasma Mount - fixed Weight STATIC Plasma Mount (4,6 kg) FLEXI Plasma Mount (5,9 kg) Capacity: STATIC Plasma Mount 65 kg FLEXI Plasma Mount 60 kg 4.
