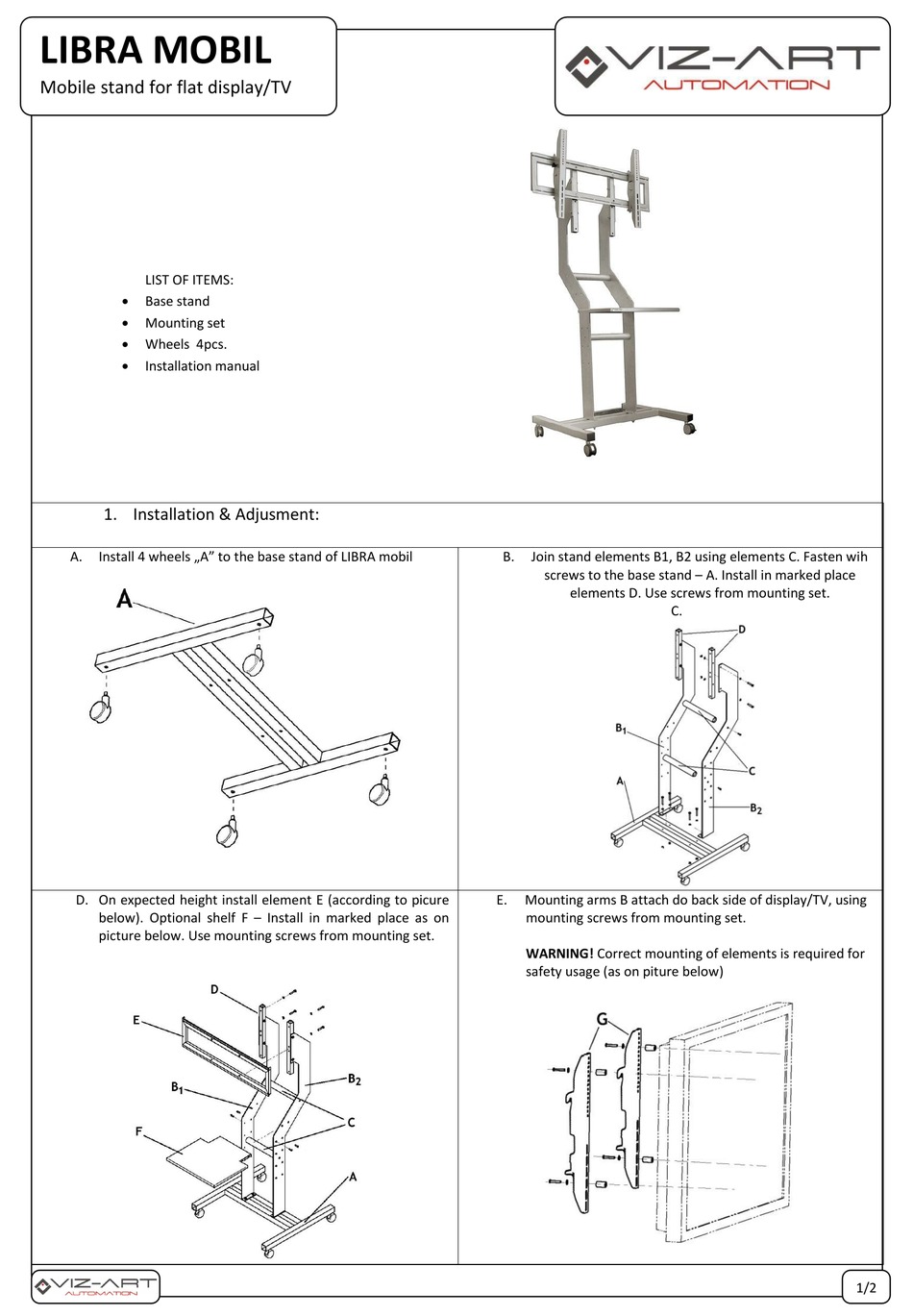

Viz-Art Automation LIBRA MOBIL Installation Manual

LIBRA MOBIL
Mobile stand for flat display/TV

LIST OF ITEMS:


Base stand

Mounting set

Wheels 4pcs.

Installation manual
1. Installation & Adjusment:
A. Install 4 wheels „A" to the base stand of LIBRA mobil
D. On expected height install element E (according to picure
below). Optional shelf F – Install in marked place as on
picture below. Use mounting screws from mounting set.
B. Join stand elements B1, B2 using elements C. Fasten wih
screws to the base stand – A. Install in marked place
elements D. Use screws from mounting set.
E. Mounting arms B attach do back side of display/TV, using
mounting screws from mounting set.
WARNING! Correct mounting of elements is required for
safety usage (as on piture below)
C.
1/2
