Summary of Contents for Adaptiv Technologies TPX

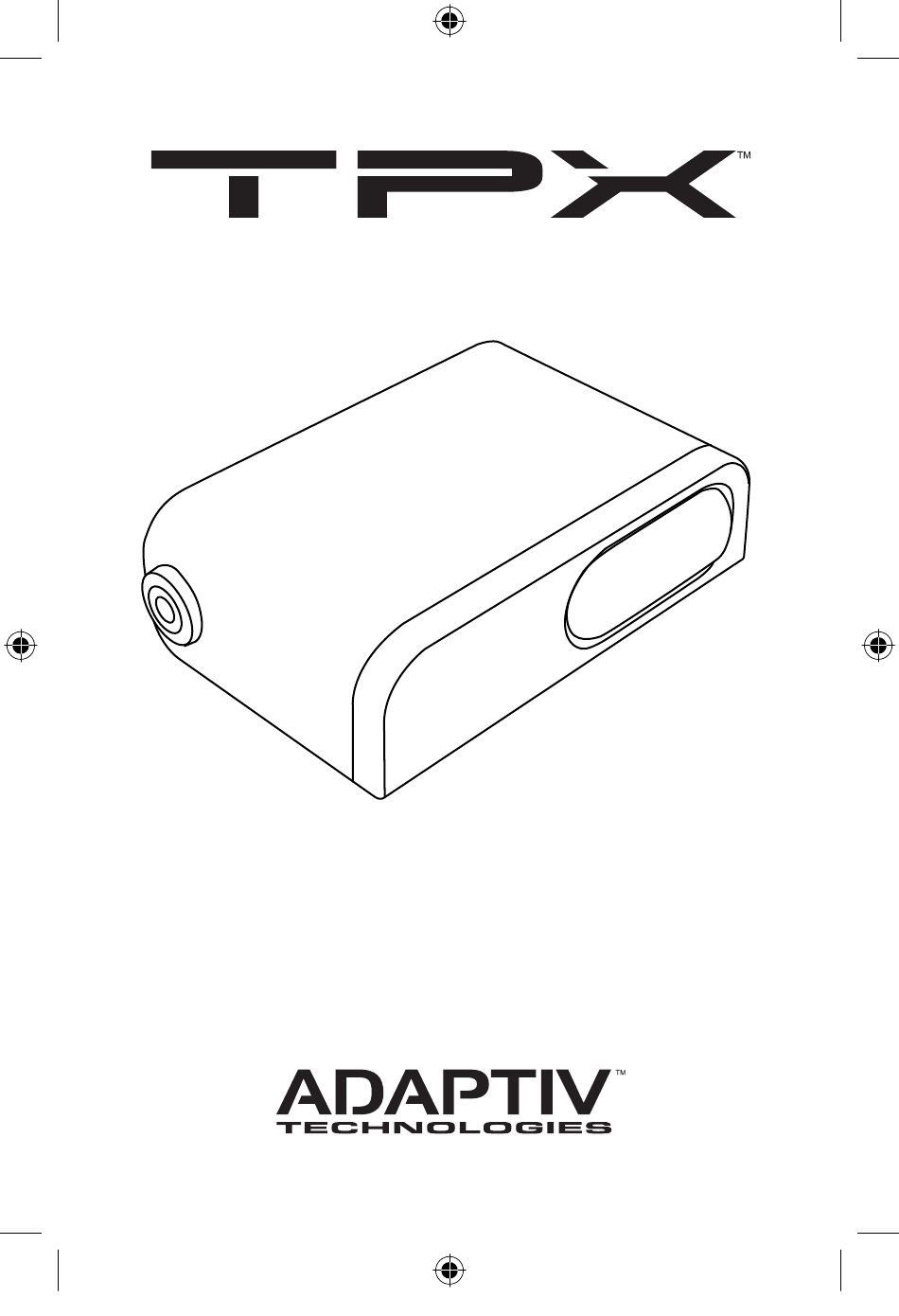

- Page 1 MOTORCYCLE LASER JAMMER AND PARKING SENSOR SYSTEM MANUAL TPX_Manual_180108.indd 1 1/25/19 2:39 PM...
- Page 2 You may register this product online at www.AdaptivTech.com TPX_Manual_180108.indd 2 1/25/19 2:39 PM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ..................Safety Warning .................. Package Contents ................Product Overview ................Using the TPX™ System ..............Installation ................... Mounting the Transponder ............. Mounting the Visual Alert ............Mounting the Control Switch ..........Wiring the TPX™ System .............. -
Page 4: Introduction
INTRODUCTION Dear TPX™ Motorcycle Laser Jammer and Parking Sensor System Owner, Congratulations on your purchase of the re-designed TPX™ Motorcycle Laser Jammer and Parking Sensor System! This System is the result of years of research and development by the motorcycle-minded engineers who started the company. -
Page 5: Safety Warning
SAFETY WARNING When using the TPX™ Laser Jammer and Parking Sensor System and its associated components, it is the sole responsibility of the operator to install all components properly and to ensure that they will not interfere with safe operation of the vehicle, nor will they cause any personal injury or damage in the event of an accident. -
Page 6: Product Overview
PRODUCT OVERVIEW The TPX™ Laser Jammer and Parking Sensor System is designed specifically for motorcycle use. It is to be used as a standalone system. When the Transponder detects an incoming laser signal, it automatically jams the laser gun to prevent a speed reading. The rider is notified of the signal with the flashing Visual Alert. - Page 7 Figure 1b Figure 1c TPX_Manual_180108.indd 7 1/25/19 2:39 PM...
-
Page 8: Using The Tpx™ System
Mouting the Transponder The TPX™ Laser Jammer and Parking Sensor System includes two Transponders to be mounted on the front of the bike. An additional Transponder for rear protection is available separately. -
Page 9: Mounting The Visual Alert
possible with a clear line of sight straight ahead. They should also be both as close to the headlightas possible and as far apart from each other as possible. With the Spirit Level, adjust the Transponder until it is parallel to the ground and mount the Transponders with Bracket Screws and Bracket Washers, Mounting Tapes, or other custom mounting method. -
Page 10: Mounting The Control Switch
• Once the surfaces are clean and dry, remove one liner of the Visual Alert Mounting Tape and apply to the bottom surface of the Visual Alert. • Remove the other liner of the Visual Alert Mounting Tape and apply the Visual Alert to the chosen mounting surface on the motorcycle using firm pressure. -
Page 11: Wiring The Tpx™ System
The TPX™ Laser Jammer and Parking Sensor System is designed to be powered by a switched 12V power source. If the motorcycle’s power output is not 12V, a voltage adaptor is required. -
Page 12: Transponder
Transponder Connect the two Transponders to the connectors labeled “FR1” and “FR2” on the Interface Box. If a third (optional) Transponder is used, connect it to the connector labeled “RE1” on the Interface Box. Visual Alert Connect the Visual Alert to the connector labeled “Visual Alert” on the Interface Box. -
Page 13: Power
Control Switch light will be in red. Auto Shut-Off The default setting of TPX™ Laser Jammer and Parking Sensor System has Auto Shut-Off feature activated, where the System will sense, alert, and jam any incoming laser signal for 3 seconds. After 3 seconds the System will shut itself off. -
Page 14: Parking Sensor Function
Software updates are available online. When an update is available, connect a flash USB drive (not included) and follow the instructions online. TROUBLESHOOTING If your TPX™ Laser Jammer and Parking Sensor System is not operating properly, please refer to the following guide: Problem... -
Page 15: Maintenance And Care
Transponder strength may decrease if the lens becomes scratched. SERVICE Warranty Service If you believe that your TPX™ Laser Jammer and Parking Sensor System is not functioning properly: 1. Review the Troubleshooting section. 2. If your problem is not resolved after reviewing the Troubleshooting section, have your serial number ready and call us at 646-722-0253. -
Page 16: Non-Warranty Service
The TPX™ Laser Jammer and Parking Sensor System consists of the Interface Box, two Transponders, Visual Alert, the Control Switch, and the respective parts of each. Adaptiv Technologies will, at its option, repair or replace defective parts upon delivery to Adaptiv Technologies accompanied by the original sales receipt or other proof of first consumer purchase within the warranty period. -
Page 17: Specifications
3. In any State or country or jurisdiction in which possession of laser jamming equipment is illegal; 4. If the serial number has been altered, defaced, or removed; or 5. To installation of the unit. ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURANTION TO THE PERIOD OF THIS WARRANTY*. -
Page 18: Accessories
For more information, go to www.AdaptivTech.com or call us at 646-722-0253. TPX™ Laser Jammer Transponder TPX™ Laser Jammer License Plate Bracket TPX™ Visual Alert TPX™ Wireless Headset TPX™ Motorcycle Radar and Laser Detector System and accessories AdaptivMount™ Motorcycle Accessory Mounts Adaptiv Technologies, LLC www.AdaptivTech.com 646-722-0253 TPX_Manual_180108.indd 18...
