Kore 7th
Ultimate dosing station
WiFi Network Setup
User Manual
ver. 2.2
Android / iOS interface
www.Pacific-Sun.eu

Advertisement

loading

Related Manuals for Pacific Sun Kore 7th

Summary of Contents for Pacific Sun Kore 7th

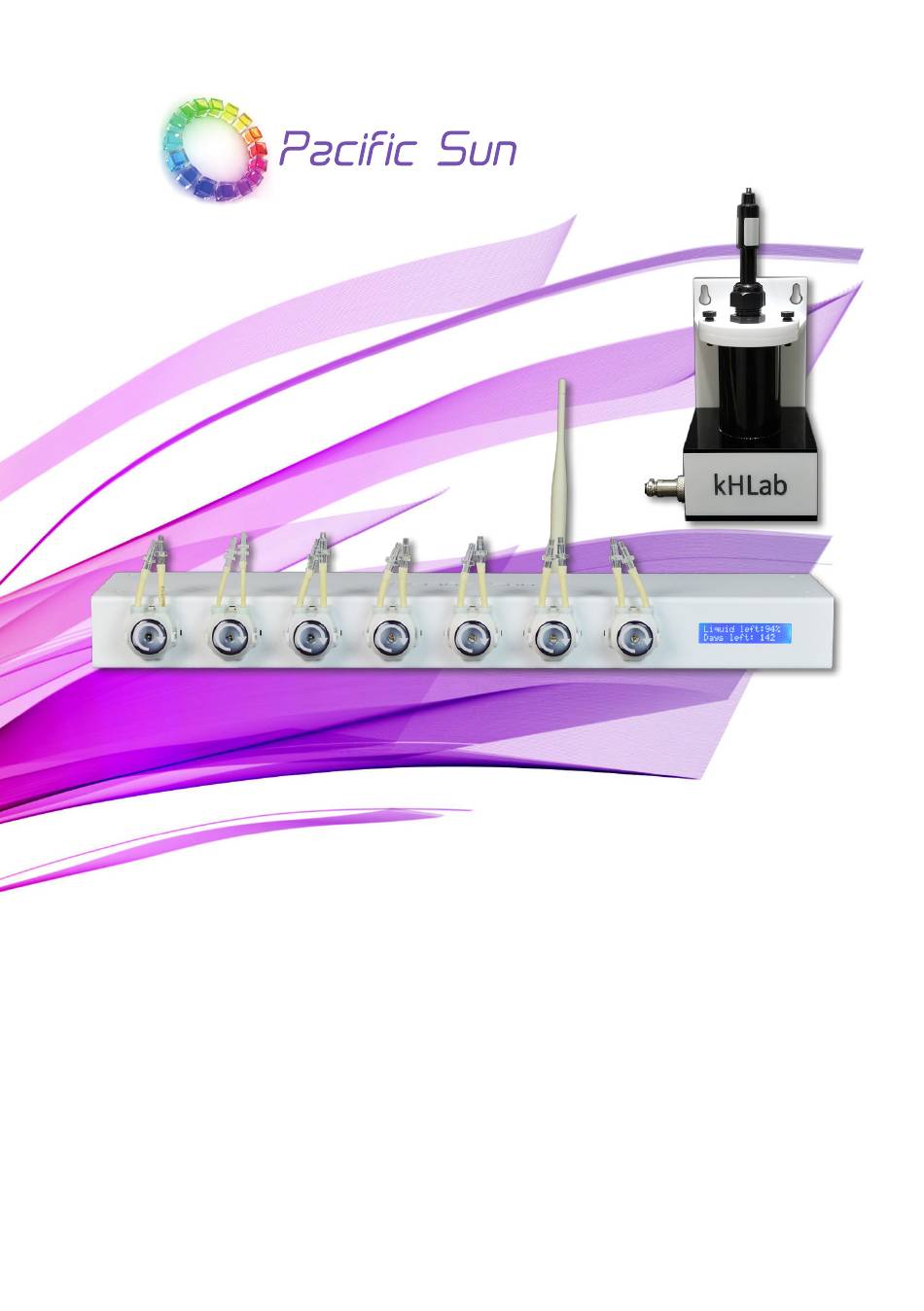

  • Page 1 Kore 7th Ultimate dosing station WiFi Network Setup User Manual ver. 2.2 Android / iOS interface www.Pacific-Sun.eu...
  • Page 2 Kore 7th Manual / kHLab Edition Wi-Fi Network Protection Setup and Connection to Kore 7th 1. Find your Kore7th doser on your WiFi network list and click Connect to this network. Select Connect to the Kore 7th Wi-Fi Network. 2. Connecting to the Kore 7th Wi-Fi Network.
  • Page 3 Kore 7th Manual / kHLab Edition 5. Navigate to WiFi Soft-AP Tab to setup/change your WiFi settings. You should see the following Configuration options: WiFi Soft-AP Configuration Soft-AP-AP SSID allows to change the name of your doser WiFi network name.
  • Page 4 Kore 7th Manual / kHLab Edition 6. You can change the Kore7th doser WiFi network name to your preferred name in the Sof-AP SSID field. Note: You can leave the default manufacture name. 7. Setup password to secure your Kore7th doser WiFi network in the Sof-AP Password field.
  • Page 5 Kore 7th Manual / kHLab Edition 9. Save all settings Click Change Soft-AP settings! All the settings will be saved. Now you can close your Internet Browser. Your computer will be disconnected from this Kore7th doser WiFi network. 10. Navigate back to your...
  • Page 6 Kore 7th Manual / kHLab Edition 12. You should see: Connecting to your Kore7th …. ß 13. Now you are Connected to your Kore7th Doser WiFi network. Secure Important! You should see the Security Type: WPA2-PSK. If NOT, you have to go back to the...
  • Page 7 Kore 7th Manual / kHLab Edition 15. Go to WiFi Station settings. Under WiFi Association you should see Scanning for available home WiFi networks. Start Scanning if didn’t start. 16. Select your Home WiFi network under Network SSID. Type in your Home WiFi network in the password field under the WiFi password, if applicable.
  • Page 8 Kore 7th Manual / kHLab Edition 18. The Connection is completed. Now your Kore7th doser is connecter to your Home WiFi network on a new IP address 192.168.1.227. Note: Your IP address can be different. This is just an example.
  • Page 9 192.168.1.227 address field. If you are using IE, you might want to add http:// to the address else IE may show an error. You should enter and see Kore 7th Wi-Fi network setup page like on this picture. Page 9...
  • Page 10 Kore 7th Manual / kHLab Edition 24. Go to WiFi Station settings and scroll down to Special Settings. Select option: Static IP Under Static IP address specify your Kore7th IP address: 192.168.1.227 Important! When using Static IP you Kore7t IP address will not change after doser restart.
  • Page 11 Kore 7th Manual / kHLab Edition 27. HW VSP status will Change to Created. LAN status will Change to Connected. After that you can open the Pacific Sun Kore 7th Application. 28. Start the Pacific Sun Kore 7th Application. 29. After opening the...
  • Page 12 If you need technical support - please contact with Copyright: Pacific Sun Sp. Z o.o. I Brygady Pancernej WP 10 84-200 Wejherowo Poland tel. + 48 58 778 17 17 email: office@pacific-sun.eu...
