Summary of Contents for Crow FW-KP
- Page 1 ELECTRONIC ENGINEERING LTD. FW-KP WIRELESS KEYPAD INSTALLATION INSTRUCTIONS & USER MANUAL P/N 7101618 Rev. B ME-YS...

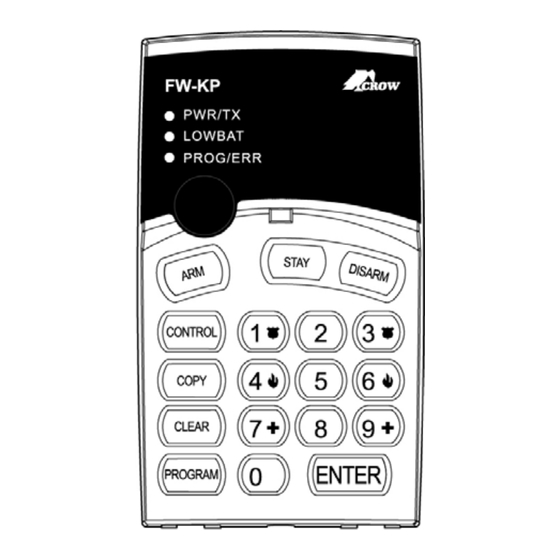

- Page 2 The FW-KP is a wireless remote control keypad for POWERWAVE & RUNNER security and home automation control panels. The FW-KP enables easy programming, arming and disarming of the control panel. It also allows to control devices from anywhere in the home or office, using keypad commands.
- Page 3 give 3 short beeps and exit learn mode. To remove a loaded radio channel, enter in the code load address as above eg P614E, then without operating the transmitter and before the 30 second timer expires, press the “Enter” button. This will remove the code loaded against this address (in this case radio channel 4).
- Page 4 ENTER FW-64 – PROG 21-100 HOW TO USE THE PLUG-IN DATA TRANSFER MODULE (DTU) Plug the DTU module (CROW P/N 0060330) to the black socket located at the back of the FW-KP. Read from DTU module PROG INSTALLER CODE ENTER...
- Page 5 HOW TO REPLACE BATTERY? CAUTION !!! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. The battery must be replaced by: 3.6V Lithium Battery Size: 1/2AA Models as: XL-050F ENERGY LS14250 SAFT...
- Page 6 TECHNICAL SPECIFICATIONS Data Protocol FreeWave Modulation Type Frequency band 868MHz Identification Unique ID serial number – 24 bit Event Transmission Arm, Disarm, Stay, Control, Panic, Low Bat Range in open space up to 300 m Battery Lithium. 3.6V Type: XL-050F Size: 1/2AA Standby <1 μA Current Consumption Operator Mode ~16 mA...
- Page 7 In no case shall Crow be liable to anyone for any consequential or incidental damages (inclusive of loss of profit, and whether occasioned by negligence of the Crow or any third party on its behalf) for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever.
- Page 8 CROW ELECTRONIC ENGINEERING LTD. ISRAEL: Crow Electronic Engineering Ltd. 12 Kineret St. Airport City P.O. Box 293, Ben Gurion Airport, 70100 Tel: 972-3-9726000 Fax: 972-3-9726001 E-mail: support@crow.co.il USA: 2160 North Central Road, Fort Lee, N.J. 07024 Tel: 1-800-GET CROW (201) 944 0005...
