Wagner& Co
TECHNICAL INFORMATION / INSTALLATION MANUAL
CIRCO 5 Solar Circulation Unit
CIRCO 5 Solar Circulation Unit
the reliable pump station for efficient
circulation of the heating fluid in
combination with SUNGO controls
Fast Installation
through pre-mounted parts and
compression fittings for the
connection to the solar circuit
Safe deaeration
by integrated air venting pipe
Variable Installation
wall mounting or fitted directly
to the storage cylinder
Function Control
through flow meter and
thermometers
Controlled heat flow
by two temperature resistant
non return ball valves
High Energy Efficiency
All around insulation and
speed controlled circulation pump
(in combination with all SUNGO solar controllers)

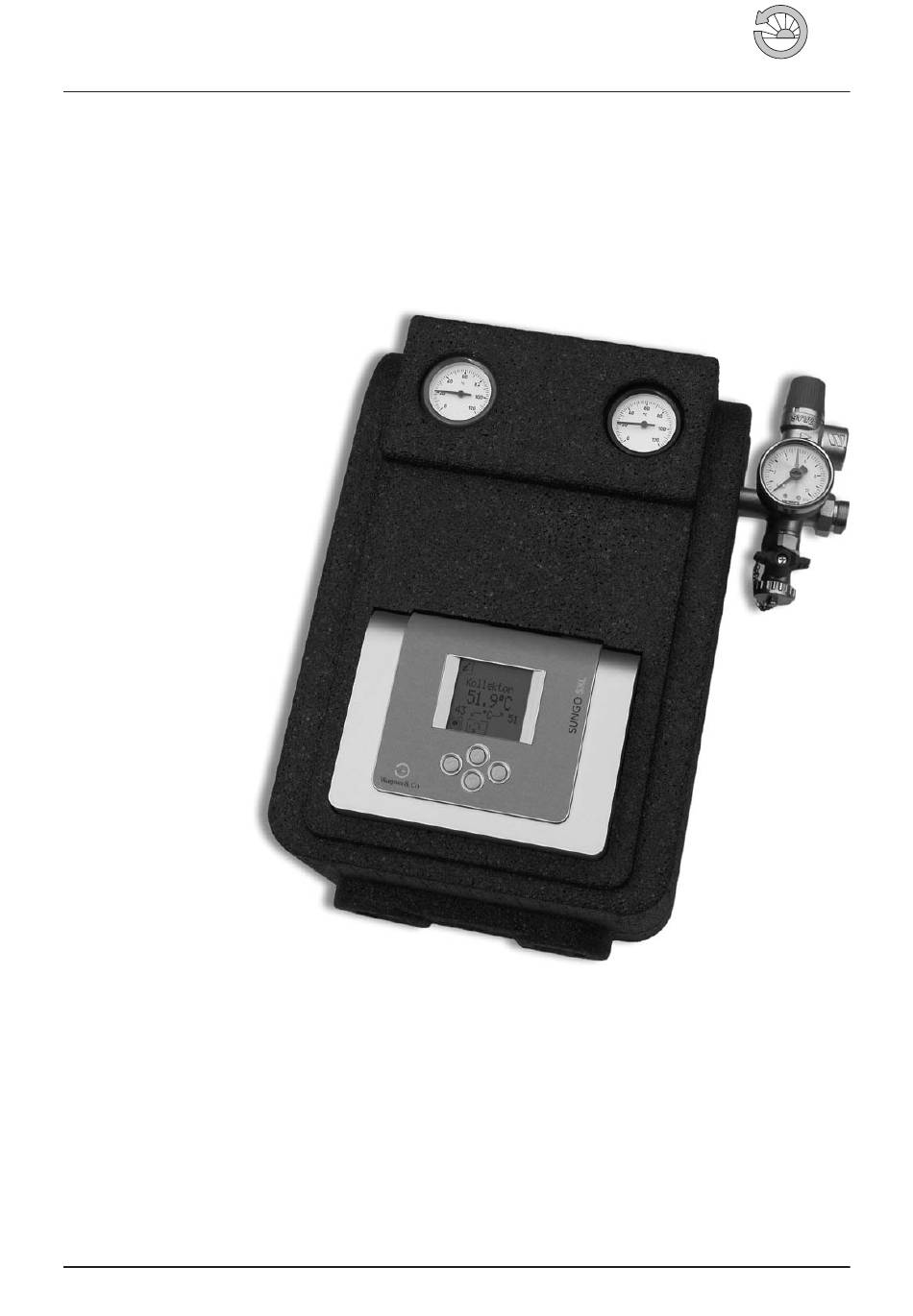

Figure 1 CIRCO 5 solar circulation unit (SUNGO is an optional extra)
Solar Thermal / Solar Circuit
EN-CIRCO-5-MA-0701-11217300
1
Advertisement
Table of Contents
Related Manuals for Wagner & Co CIRCO 5
Summary of Contents for Wagner & Co CIRCO 5
- Page 1 High Energy Efficiency All around insulation and speed controlled circulation pump (in combination with all SUNGO solar controllers) Figure 1 CIRCO 5 solar circulation unit (SUNGO is an optional extra) Solar Thermal / Solar Circuit EN-CIRCO-5-MA-0701-11217300...
-
Page 2: General Safety Guidelines
Function nents of the solar circuit or the function of the same may be The CIRCO 5 solar circulation unit is suitable for solar hot impaired seriously. Please make sure that you follow the in- water systems and solar heating systems together with an- stallation procedure step by step as instructed. -
Page 3: Technical Information
2. Technical Information CIRCO 5 solar circulation unit Order No. 150 201 14 List of parts supplied The CIRCO 5 solar circulation unit is supplied pre-assem- Insulation EPP (λ = 0.039 W/mK), bled. in three parts with snap-lock SUNGO control and CIRCO expansion kit are not part of... -
Page 4: Installation
Figure 4 The parts of the CIRCO 5 solar circulation unit (numbering fits to numbers in brackets at description of assembling steps), items with No. 7, 8, 9, 10, 12 and 14 are not part of the circulation unit. -
Page 5: Installation Preparations
CIRCO 5 solar circulation unit: Power drill, masonry bits, pipe wrench, stilton etc. (figure 5). 3.2 Wall Mounting Figure 5 Tools required for the installation of the CIRCO 5 solar circula- tion unit ● Use spirit level to place the wall mounting bracket (1), ●... - Page 6 3.3 Mounting to Cylinder The adjustable mounting kits can be used with all Wagner solar cylinders with 1¼" flat tightening connections, if the vertical distance of these is between 400 and 640 mm. In order to prevent later obstructions of the pipe work in the area of the cylinder it is necessary to make proper lay- out plans before commencing.
-
Page 7: Operating Advice
Ball valve handle vertical Ball valve handle vertical Non-return valve in operation Non-return valve in operation Figure 9 Operational position Figure 8 Flow meter of the CIRCO 5 solar circulation unit with adjust- ment option ● Filling the system “Flow on”... - Page 8 190 210 10 CIRCO – expansion vessel kit Expansion vessel for the CIRCO 5 solar circulation unit, operating pressure max. 10 bar, stainless steel connection hose, connection ¾" female with gasket 12 l-volume, incl. wall mounting bracket, pre-pressurised: 1.5 bar 150 300 70 18 l-volume, incl.
