4.11 CODE3 Z3

4.11.1 Siren Pre-Installation

The Z3 Siren is already compatible with the Siren Light Interface Module. Note that the
two data ports CTRL HEAD and AMP2 are identical and either can be used
interchangeably. If additional ports are needed, a breakout hub can be provided by Code3.

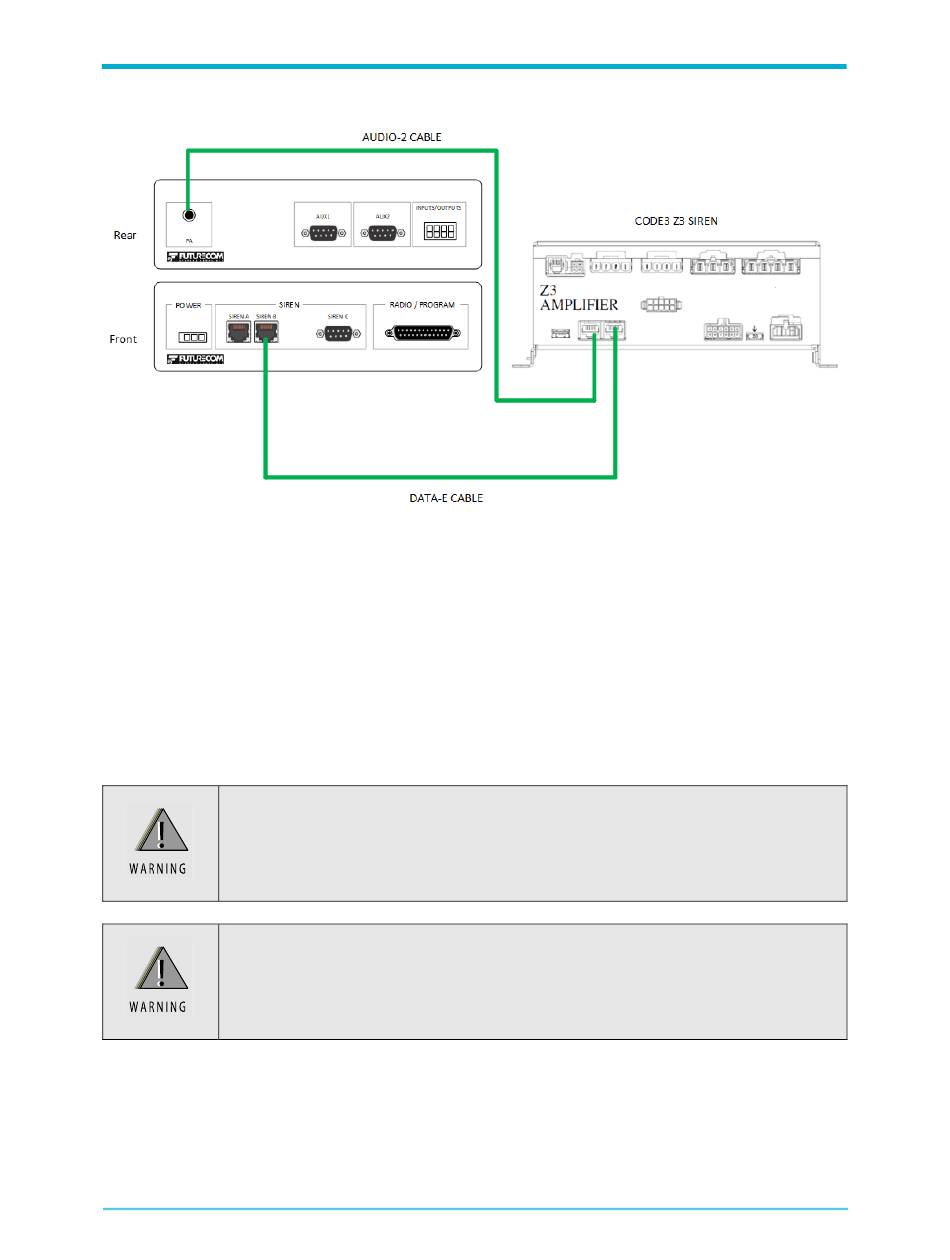

4.11.2 Data Connection

Z3 installation requires a Data-E cable provided by Motorola Solutions (Included in kit IK-
E2 Part # TT06292AA). Connect the RJ11 side of the Data-E cable to the SIREN-B port
of the Siren Light Interface Module. Connect the RJ45 side of the Data-E cable to the
CTRL HEAD port of the Z3 Siren.
DO NOT connect the SIREN-A port to the CTRL HEAD or AMP2 port of
the Z3 Siren.
DO NOT connect the DATA-E cable to the SIREN-A port of the Siren Light
Interface Module.

4.11.3 Audio Connection

Z3 installation requires an Audio-2 cable provided by Motorola Solutions (Included in kit
IK-E2 Part # TT06292AA). Connect the ¼" Headphone side of the Audio-2 cable to the
PA port of the Siren Light Interface Module. Connect the RJ45 side of the Audio-2 cable
to the AMP2 port of the Z3 Siren.
