Chapter 2 Pre-Installation and Configuration

2.1

Introduction

The Module acts as a translator between a Motorola APX mobile radio and third-party light
& siren controllers. The Module enables users to control their devices with a standard
APX mobile radio control head such as the O3, O7, or O9. The Module's Programming
Utility allows a technician to configure the Module to work with the devices connected and
to define how they will interact with each other. A Module must be configured by the
Programming Utility before it can function properly.
This guide will provide the details necessary to properly setup the Module for use with
compatible hardware. Separately from configuring the Module, it is also necessary to
properly prepare the radio to accept external control. It is also necessary to configure the
third-party siren & light controller to perform its desired functionality. The user of the
Programming Utility should therefore be experienced with the configuration and use of all
devices connected to the Module.
2.2

Radio Preparation

Before configuring the Module, first ensure compatible radio hardware is used. The mobile
radio must utilize a compatible TIB to support integration with the Module. If needed, the
TIB can be upgraded to a compatible version, for more information see the radio
installation guide. Second, ensure the radio is using software SR 7.13.5 or higher. Third,
the radio must be programmed through the CPS to allow external control.

2.2.1 CPS Configuration

Before configuring the Module, the radio should be programmed to allow control-head
buttons and functions to be monitored and controlled by third-party devices. If the radio is
not programmed correctly, the Module will not be able to interface with the radio properly.

2.2.1.1 Disable the Universal Relay Controller

When the Module is integrated with a radio, a URC will not be used. It is important to
disable the URC functionality in the radio or it may interfere with control head display
indicators.
To disable the URC option in the radio, open the CPS, select Radio Wide from the left
menu and then select Universal Relay Controller to open the settings page. Ensure that
the option Universal Relay Controller Equipped is not checked.
Radio Wide > Universal Relay Controller > Universal Relay Controller Equipped > Not
Checked
3/23/2018

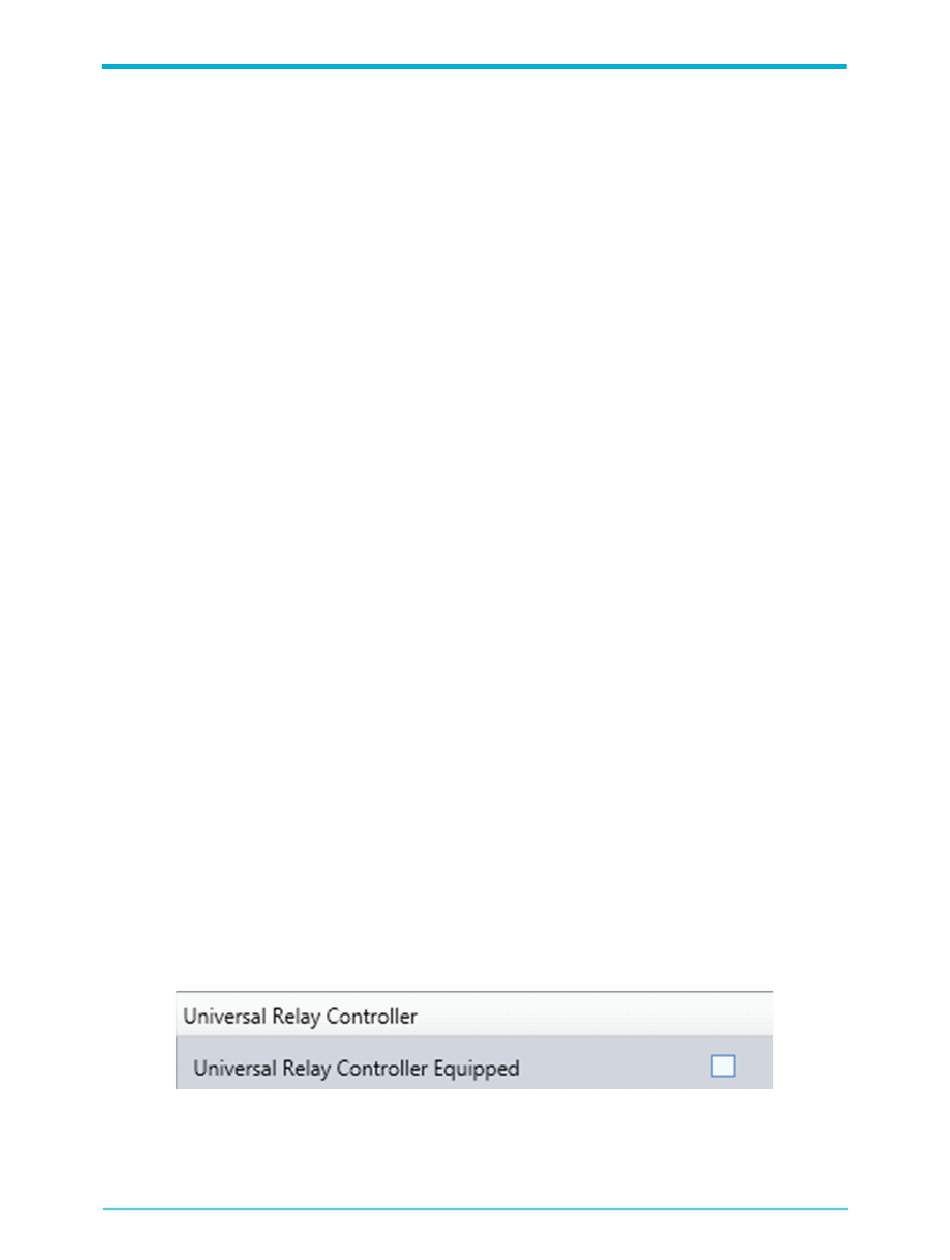

Figure 2-1 Universal Relay Controller Setting
