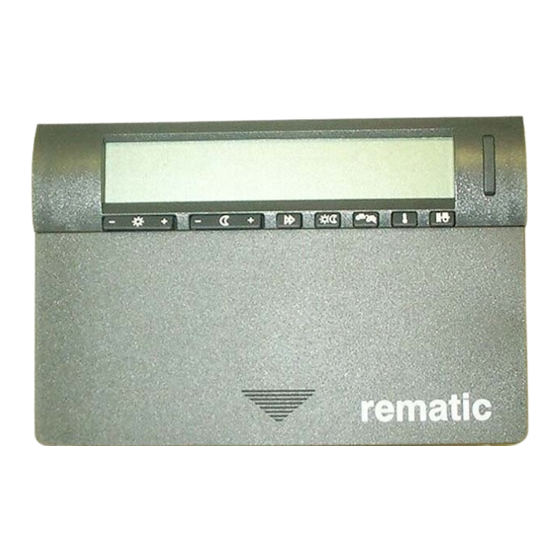

REMEHA rematic 2945 C3 K Fitting Instructions Manual
For gas 210 boiler kit
Hide thumbs
Also See for rematic 2945 C3 K:
- Assembly instructions manual (20 pages) ,
- Assembly instruction manual (24 pages)
Related Manuals for REMEHA rematic 2945 C3 K
Summary of Contents for REMEHA rematic 2945 C3 K
- Page 1 ® rematic 2945 C3 K Fitting Instructions for Gas 210 Boiler Kit ISSUE 2 - 21/11/01...
- Page 2 IMPORTANT NOTE The boiler must be electrically disconnected before any work is carried out. Kit Components (Part No. 55795) 1. Flow sensor (strap on) 2. Adaptor plate with harness 3. DHW sensor 4. 2945 C3 K rematic® Control 5. Outside sensor 6.
- Page 3 Raise and tilt the terminal strip assembly locking it onto the slots on the rear support as shown in picture Fit the adapter plate onto the lower assembly using the 4 screws supplied Mount the outside sensor in a sheltered position on Outside Sensor a north facing wall - wire back to boiler (max 100M) DHW Sensor *...
- Page 4 Lower terminal assembly back into place and secure Re-fit front panel screws Using a Stanley knife cut out the plastic facia from the control housing opening (follow the metal backing ) and discard Take the remaining 4 plug units on the adapter plate harness and feed through the opening.
- Page 5 (as set on the controller). Open the switch and control will revert to the set timed function. Title: Broag Ltd Gas 210 Series Remeha House Rematic 2945 Control boiler adapter plate Molly Millars Lane, Wokingham c/w harness Part No. 55777 Berkshire RG41 2QP...
- Page 7 Broag Ltd Head Office Remeha House, Molly Millars Lane, Wokingham, Berkshire RG41 2QP Telephone (0118) 9783434 (0118) 9786977 E-mail boilers@broag-remeha.com broag-remeha.com Branch Office Unit 3, Kestrel Close, Quarry Hill Industrial Estate Ilkeston, Derbyshire DE7 4RD Telephone (0115) 9440778 Telefax (0115) 9440588...
