1. Firewall A - Addresses

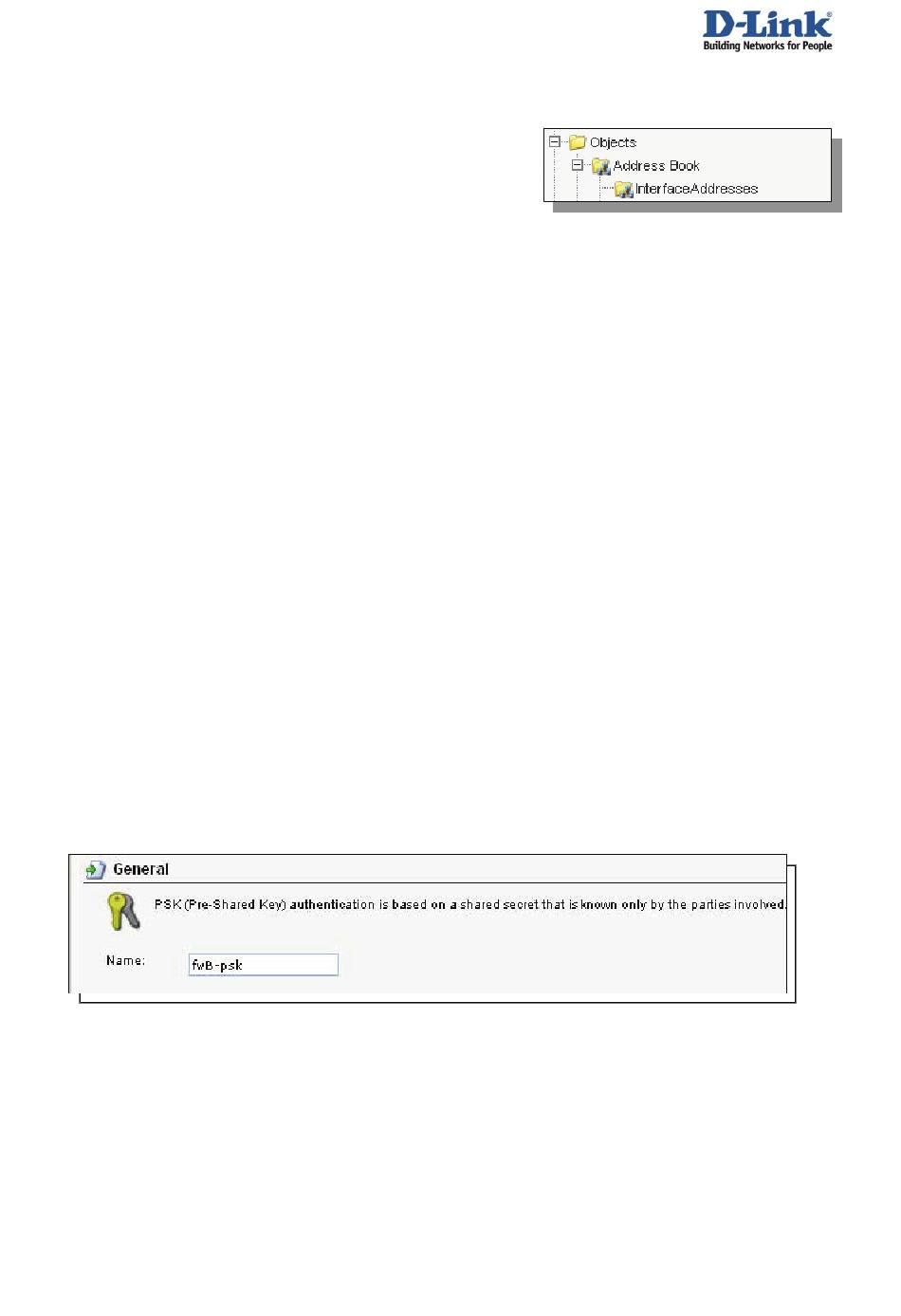

Go to Objects -> Address book -> InterfaceAddresses.
Edit the following items:
Change lan_ip to 192.168.1.1
Change lannet to 192.168.1.0/24
Change wan1_ip to 192.168.110.1
Change wan1net to 192.168.110.0/24
Go to Objects -> Address book.
Add a new Address Folder
In the new folder, add a new
Name: fwB-remotenet
IP Address: 192.168.2.0/24
Click Ok
In the same folder, add a new
Name: fwB-remotegw
IP Address: 192.168.110.2
Click Ok
2. Firewall A – Pre-shared keys
Go to Objects -> Authentication Objects
Add a new Pre-Shared
General:
Name: fwB-psk
called RemoteHosts.
IP address:
IP address:
Key.
