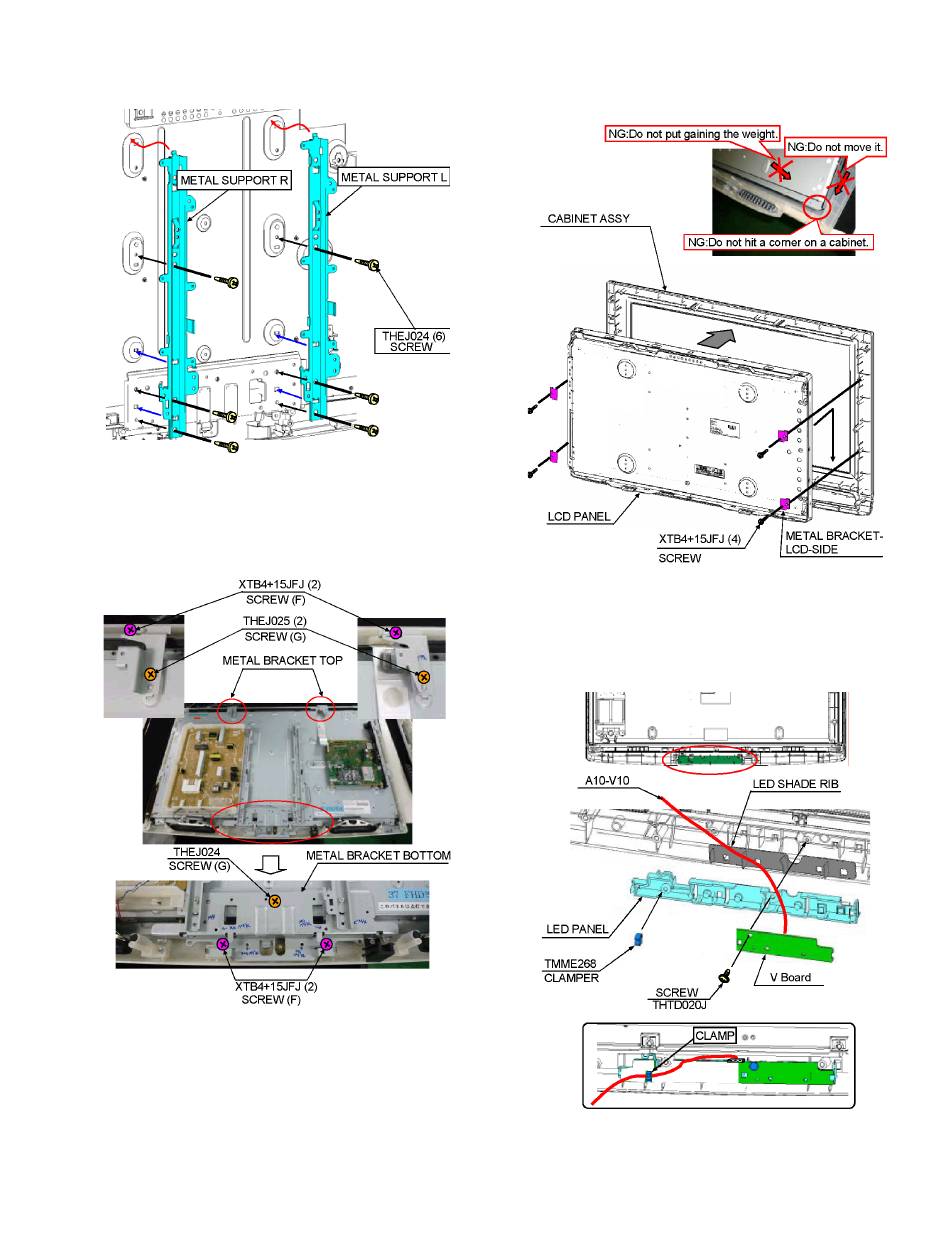

7.12. Metal support

1. Remove the 6 screws.
2. Remove the Metal supports (L, R).

7.13. Metal bracket

1. Remove the 4 screws (F).
2. Remove the 3 screws (G).
3. Remove the Metal bracket top and Metal bracket bottom.

7.14. LCD Panel

1. Remove the 4 screws and remove the Metal bracket LCD
side.
2. Remove the LCD panel.

7.15. V-Board

1. Remove the 1 screw.
2. Disconnect the connector (V10).
3. Remove the V-Board.
