Panasonic TC-L37C22 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. LCD TV
  5. Viera TC-L37C22
  6. Service manual
Panasonic TC-L37C22 Service Manual

Panasonic TC-L37C22 Service Manual

37 inch class 720p lcd hdtv
Hide thumbs Also See for TC-L37C22:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
37 inch Class 720p LCD HDTV
TC-L37C22
Model No.
LA03 Chassis
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC100208CE
B01 Canada: B61

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-L37C22

Summary of Contents for Panasonic TC-L37C22

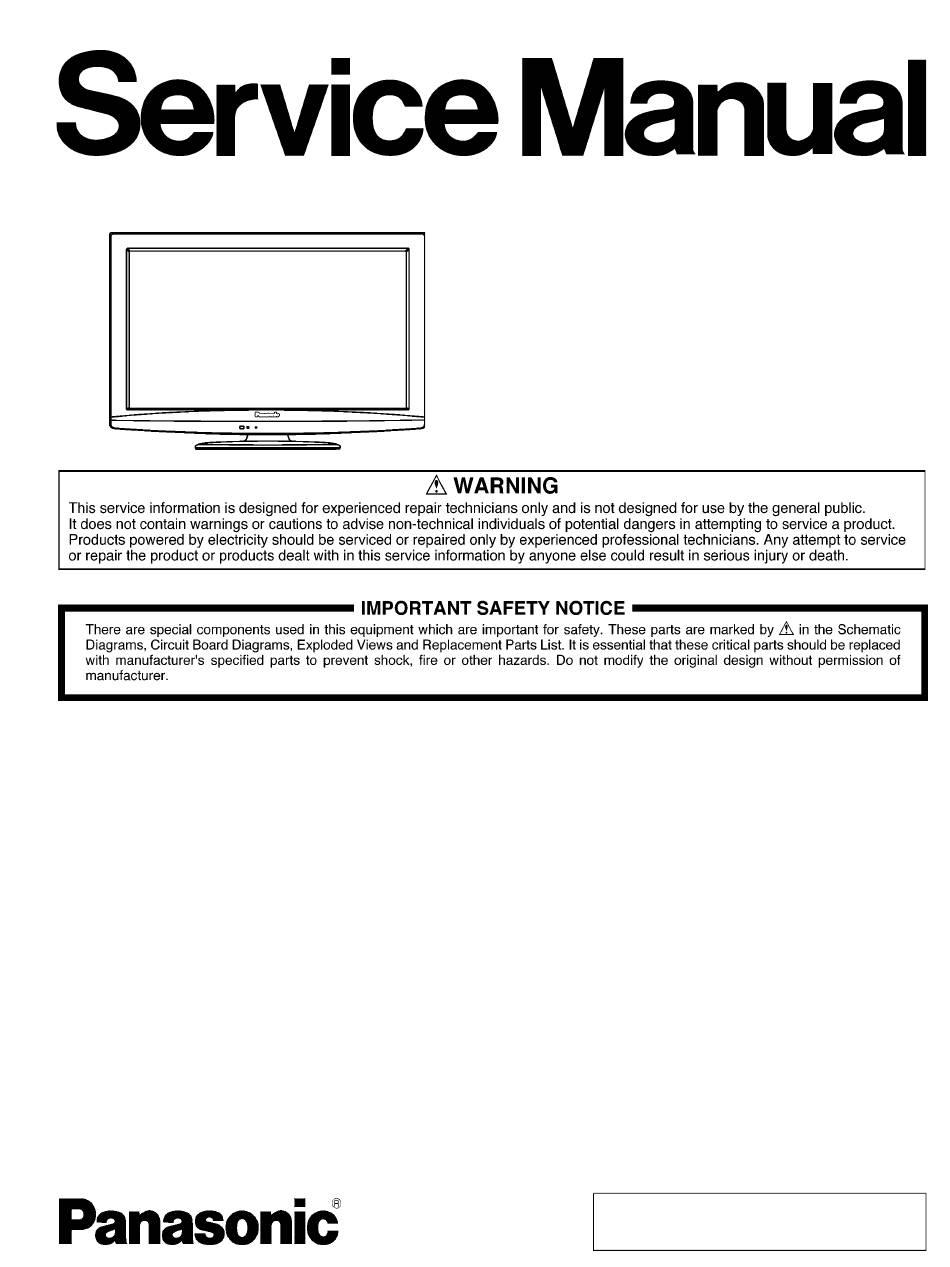

  • Page 1 ORDER NO.MTNC100208CE B01 Canada: B61 37 inch Class 720p LCD HDTV TC-L37C22 Model No. LA03 Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.11. A-Board (8/13) Schematic Diagram----------------- 43 1.1. General Guidelines ----------------------------------------3 11.12. A-Board (9/13) Schematic Diagram----------------- 44 2 Warning --------------------------------------------------------------4 11.13. A-Board (10/13) Schematic Diagram --------------- 45 2.1. Prevention of Electrostatic Discharge (ESD) 11.14.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function A-Board Speaker out, AV Terminal, HDMI in, SD Card, PC in, Digital Signal Processor, Nile-Tcon, Tuner V-Board Remote Receiver, LED P-Board Power (AC/DC), DC-DC Control Panel Assy Control Button, Power switch Non serviceable Control Panel Assy should be exchanged for service.

  • Page 7: Specifications

    4 Specifications Power Source AC 110-127 V, 60 Hz Power Consumption Maximum 149 W Standby Condition 0.3 W Display panel Aspect Ratio 16:9 Visible screen size 37 inch class (37.0 inches measured diagonally) (W × H × Diagonal) 32.2 inch × 18.1 inch × 37.0 inch (819 mm × 460 mm × 940 mm) 1,049,088 (1,366 (W) ×...

  • Page 8: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 9 Contents of adjustment mode 5.1.2. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 10: Srv-Tool

    5.2. SRV-TOOL 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship- ment setting].

  • Page 11: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode off/on In order to display the Hotel mode setup menu, please Input Select input signal modes. enter the following command (within 2 second).

  • Page 12: Data Copy By Sd Card

    5.4. Data Copy by SD Card 5.4.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 13 5.4.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 14 5.4.4. Data copy from to SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 15: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 16: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 17: No Power

    6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

  • Page 18: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Pedestal 7.3. AC cord 1. Lay down the unit so that the rear cover faces upward. 1. Remove the screw and Remove the AC cord bracket. 2. Remove the 4 screws. 2. Remove the bushing of the AC cord from the AC cord 3.

  • Page 19: Side Av Bracket

    7.5. Side AV bracket 7.7. Control panel 1. Remove the 1 screw (D). 1. Disconnect the connector (K1). 2. Remove the 1 screw (E). 2. Remove the 2 screws. 3. Remove the side AV bracket. 3. Remove the control panel. 7.6.

  • Page 20: Metal Bracket A-Board

    7.9. Metal bracket A-Board 3. Remove the Metal bracket P-Board-S. 4. Remove the clampers. 1. Remove the 4 screws. 2. Remove the Metal bracket A-Board L/S. 7.10. Bracket IP 1. Remove the 3 screws. 2. Remove the Bracket IP. 7.11. VESA metal 1.

  • Page 21: Metal Support

    7.12. Metal support 7.14. LCD Panel 1. Remove the 6 screws. 1. Remove the 4 screws and remove the Metal bracket LCD 2. Remove the Metal supports (L, R). side. 2. Remove the LCD panel. 7.13. Metal bracket 1. Remove the 4 screws (F). 2.

  • Page 22: Emi Processing

    7.16. EMI processing...

  • Page 26: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Voltage chart of P-board VOLTAGE TEST POINT SPECIFICATION (Reception state) TP7952, TP7953 18 ± 2 V DTV12V TP7954, TP7955 12.2 ± 0.6 V TUNER6V TP7956 6.1 ± 0.3 V 8.2. Voltage chart of A-board VOLTAGE TEST POINT SPECIFICATION (Reception state)

  • Page 27: Block Diagram

    9 Block Diagram 9.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR TMDS DATA HDMI1 TMDS DATA HDMI I/F HDMI2 RECEIVER SD CARD DATA SD CARD SD CARD DATA SLOT IFD_OUT FRONT END Nile-TCON SIF_OUT PROCESSOR DDR2 TUNER EEPROM STB5V STB3.3V SUB5V ANALOG-ASIC SUB5V DET (LED:5TIMES)

  • Page 28: Block (1/2) Diagram

    9.2. Block (1/2) Diagram DIGITAL SIGNAL PROCESSOR POWER LED REMOTE RECEIVER C.A.T.S. SENSOR D2500 SN2501 POWER LED C.A.T.S. R_LED_ON POWER LED(R) SENSOR C.A.T.S. C.A.T.S. RM2501 REMOTE IN REMOTE IN SUB5V REMOTE RECEIVER SUB+5V STB3.3V STB+3.3V SOUND15V KEYSCAN1 KEYSCAN1 CONTROL PANEL ASSY KEYSCAN3 KEYSCAN3 POWER SUPPLY...

  • Page 29: Block (2/2) Diagram

    9.3. Block (2/2) Diagram JK2102B SPEAKER_L SPEAKER_R D2142 JK2101A JK2108A OPTICAL VIDEO2 JK8502 JK4502 JK4501 AUDIO TU8302 (SIDE) COMP1 VIDEO1 SD CARD ANT IN HDMI IN 1 HDMI IN 2 TUNER SUB3.3V_SD IIC0_TU IC5613 3.3V IIC0_TU FACTORY IIC1 SUB5V IIC2 FACTORY IC2106 TUNER...

  • Page 31: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring...

  • Page 33: Schematic Diagram

    11 Schematic Diagram 11.1. Schematic Diagram Notes...

  • Page 34: P-Board (1/2) Schematic Diagram

    11.2. P-Board (1/2) Schematic Diagram COLD RL7101 K6B1AYY00060 C7004 250V 470p D7040 B0ACCJ000048 RL7102 K6B1AYY00060 TP7001 TP7002 TP7003 Q7032 LF7001 LF7002 LF7003 G0B103H00009 G0B103H00009 G0B103H00009 B1ABGF000019 R7031 F7001 K5D502BNA005 RL7103 K6B1AYY00061 C7003 D7001 C7001 R7001 FILTER 0.22u D4EAC6210002 0.22u R7030 C7032 CF7101 AC CORD...

  • Page 35: P-Board (2/2) Schematic Diagram

    11.3. P-Board (2/2) Schematic Diagram INV390V TP7803 TP7804 F7801 TP7801 TP7802 L7804 K5D502BNA005 EXCELDR35V IC7801 C0DBZYY00321 INV VOLTAGE SUPPLY/FET DRIVER COLD COLD INV16V D7801 TP7808 TP7809 B0JCKG000002 C7807 Q7801 R7801 R7802 220p TP7805 INVERTER B1CERQ000056 LDRV1 R7813 OUT1 L7805 4.7k L7801 C7809 EXCELDR35V...

  • Page 36: A-Board (1/13) Schematic Diagram

    11.4. A-Board (1/13) Schematic Diagram A-BOARD TXN/A10QYLS (1/13) Nile-TCON IC8001 C1AB00003249 Nile-TCON GPIO/IRQ_MCU VCC Sheet005 DVSS/AVSS SUB1.2V R8050 IC8001 IC8001 AC19 IC8001 P76_CEC_IN DDR_VCC_POST STB1.2V IC8001 IC8001 IC8001 P75_AVLINK1IN SUB1.2V R8051 IC8001 IC8001 AD18 IC8001 AC10 VDD18DDR IC8001 VDD12MCU C8030 C8082 C8127 IC8001...

  • Page 37: A-Board (2/13) Schematic Diagram

    11.5. A-Board (2/13) Schematic Diagram A-BOARD TXN/A10QYLS (2/13) DDR2 IC8001 C1AB00003249 Nile-TCON DDR2IF 84FBGA DDR2 800Mz x 16bit SUB1.8V DDR_VCC_POST L8000 J0JHC0000045 CH0DM0 10u 10V C8097 DDRDM0 AD10 IC8001 IC8002 CH0DM1 DDRDM1 AD13 IC8001 IC8002 IC8002 CH0DQS0_N IC8002 VDDQ DDRDQSN0 IC8001 IC8002 UDQS...

  • Page 38: A-Board (3/13) Schematic Diagram

    11.6. A-Board (3/13) Schematic Diagram A-BOARD TXN/A10QYLS (3/13) DIGITAL,SD,PDP/LCD COMMON R8515 EXB2HV680JV AA_ED0 EBDAT0 AA_ED1 EBDAT1 AA_ED2 EBDAT2 AA_ED3 EBDAT3 R8531 AA_ED4 AA_XECS0 EBDAT4 XECS0 TO 1/13 AA_ED5 EBDAT5 AA_ED6 R8532 EBDAT6 AA_XERE AA_ED7 XERE EBDAT7 AA_XEWE0 TO 1/13 XEWE0 R8533 R8516 STB3.3V...

  • Page 39: A-Board (4/13) Schematic Diagram

    11.7. A-Board (4/13) Schematic Diagram A-BOARD TXN/A10QYLS (4/13) SUB3.3V SUB1.2V IC5606 C0DBAYY00755 SUB5V SUB3.3V F15V L5613 SUB1.2V D5670 R5705 J0JHC0000075 C5695 B0ACCJ000048 0.01u BOOT C5734 C5733 C5730 C5731 C5692 C5694 VOUT "H": ON C5701 C5700 0.1u "L": OFF 6.3V 6.3V 4.7u 4.7u SUB1.2V...

  • Page 40: A-Board (5/13) Schematic Diagram

    11.8. A-Board (5/13) Schematic Diagram C2103 A-BOARD TXN/A10QYLS (5/13) L2123 6.3V J0JCC0000287 R2307 RF_V TO 9/13 RF_V VCVS1IN U_TU_V/A_TU_V TO 1/13 US AV1_S C2304 6.3V AS AV2_S R2336 VY1IN U_AV1_S_Y/A_AV2_S_Y TO 1/13 C2303 R2337 0.1u VC1IN U_AV1_S_C/A_AV2_S_C C2214 US AV1 L2125 6.3V J0JCC0000287...

  • Page 41: A-Board (6/13) Schematic Diagram

    11.9. A-Board (6/13) Schematic Diagram A-BOARD TXN/A10QYLS (6/13) I2C/I2S/RESET OPERATE RESET AUDIO_XRST TO 1/13 AUDIO_XRST 24KEC_I2CDATA1_AMP 24KEC_I2CDATA1_AMP TO 13/13 24KEC_I2CCLK1_AMP 24KEC_I2CCLK1_AMP 48KHz R2300 150 R2342 J0JBC0000116 LRCLK_POST LRCLK R2303 150 R2343 J0JBC0000116 12.288MHz MCLK_POST MCLK OPERATE TO 1/13 R2309 150 R2344 J0JBC0000116 3.072MHz...

  • Page 42: A-Board (7/13) Schematic Diagram

    11.10. A-Board (7/13) Schematic Diagram A-BOARD TXN/A10QYLS (7/13) STB3.3V STB3.3V STB3.3V SUB1.2V SUB1.8V R4809 SUB5V R4821 R4748 IC4700 RSV :3.2V_SUB1.2V SOS8:0.7V_SUB1.8V R4831 R4830 SOS7:1.4V_POWER(SUB6V/SUB15V) C1ZBZ0004161 100k 100k R4753 SOS6:1.9V_SUB5V SOS4:2.6V_FAN Q4702 ANALOG-ASIC Q4703 Q4704 DSC2001S0L R4752 DSC2001S0L DSC2001S0L SC_OHZ STB3.3V SUB5V STB1.2V P3.3V...

  • Page 43: A-Board (8/13) Schematic Diagram

    11.11. A-Board (8/13) Schematic Diagram A-BOARD TXN/A10QYLS (8/13) R4515 HPLUG_C R4506 *R4519 R4567 HPLUG_B DDC5V_C HPLUG_B C4539 6.3V *R4566 *R4504 DDC5V_B DDC5V_B *R4565 *R4507 R4527 R4503 DDC5V_A *C4540 L4506 4.7k TO 1/13 DDC5V_A 6.3V J0JYC0000068 SDA_DDC_C L4507 J0JYC0000068 SCL_DDC_C *R4526 *R4502 TO 1/13 TO 1/13...

  • Page 44: A-Board (9/13) Schematic Diagram

    11.12. A-Board (9/13) Schematic Diagram A-BOARD TXN/A10QYLS (9/13) SUB5V SUB5V L8306 R8307 J0JHC0000045 AG_RF_AFT TO 1/13 RF_AFT R8335 C8370 R8341 0.1u TP8302 R8339 RF_V R8330 Q8308 RF_V TO 5/13 R8337 2.2k R8334 C8315 DSA2001S0L Q8305 1000p TU_SIF SIFIN TO 1/13 B1ADCE000022 R8302 C8312...

  • Page 45: A-Board (10/13) Schematic Diagram

    11.13. A-Board (10/13) Schematic Diagram A-BOARD TXN/A10QYLS (10/13) SPDIF *D2142 K7AAAY000006 JK2101B SUB3.3V K1U916A00001 *R2388 AV TERMINAL OPTICAL TO 1,8/13 SPDIF AUDIO *C2283 LCD_A_AV2_V__TERMINAL 0.1u LCD_A_AV2_L__TERMINAL TO 5/13 LCD_A_AV2_R__TERMINAL U_AV1_V/A_AV2_V__TERMINAL U_AV1_L/A_AV2_L__TERMINAL TO 5/13 PC MODEL U_AV1_R/A_AV2_R__TERMINAL Y-SW U_NONUSE_A_AV1_YSW__TERMINAL PDP_U_YPBPR2_Y/LCD_U_YPBPR1_Y/A_AV1_Y__TERMINAL TO 5/13 TP3106 PDP_U_YPBPR2_PB/LCD_U_YPBPR1_PB/A_AV1_PB__TERMINAL PDP_U_YPBPR2_PR/LCD_U_YPBPR1_PR/A_AV1_PR__TERMINAL...

  • Page 46: A-Board (11/13) Schematic Diagram

    11.14. A-Board (11/13) Schematic Diagram A-BOARD TXN/A10QYLS (11/13) *TP7006 *TP7005 *R7094 *TP4252 VCOM AVDD13.7V VCOM *R7095 TP7019 R8851 AVDD IC8850 C4262 2.2k AVDD C0DBGYY00203 AVDD LVDS3.3V ON/OFF VADJ R8852 AVDD VOUT *TP4250 *R7096 SUB5V R8853 LVDS3.3 TP8850 VRF1 F15V TCON12V *TP4249 *R7097 VRF2...

  • Page 47: A-Board (12/13) And V-Board Schematic Diagram

    11.15. A-Board (12/13) and V-Board Schematic Diagram A-BOARD TXN/A10QYLS (12/13) CONNECTER for LCD LCD model A-P CONNECTOR to INV SUB5V INV LED Q2761 R2767 B1ABCF000231 R2769 R2770 P-BOARD R2765 TO 1,11/13 Q2760 SUB5V (P2) PANEL_STBY_ON/PANEL_VCC_ON B1ABCF000231 R2766 TP2786 R2757 TO 1/13 *R2780 TP2758 1.8k...

  • Page 48: A-Board (13/13) Schematic Diagram

    11.16. A-Board (13/13) Schematic Diagram A-BOARD TXN/A10QYLS (13/13) FACTORY USE FACTORY TP4732 SUB5V FACTORY STB5V SBO0 STB5V STB3.3V STB5V FACTORY SBI0 TP4726 TP4723 STB3.3V R4802 STB5V IIC_CONT EXB2HV220JV TP4734 UATXD1 TO 1/13 SRQ1 UARXD1 R4762 EXB2HV220JV UARXD0 TO 1/13 TP4702 UATXD0 MCU_I2CCLK MPU_EEP &...

  • Page 49: Printed Circuit Board

    12 Printed Circuit Board 12.1. P-Board P-BOARD (FOIL SIDE) TXN/P10QNM R L 7 1 0 3 R L 7 1 0 2 R 7 0 3 0 Q 7 0 3 2 R L 7 1 0 1 D 7 0 4 0 C 7 9 5 0 C 7 9 5 1 D 7 0 4 1...
  • Page 50 P-BOARD (COMPONENT SIDE) TXN/P10QNM R L 7 1 0 1 R L 7 1 0 2 R L 7 1 0 3 Z A 7 0 0 2 R 7 5 0 2 J 2 1 7 J 3 0 4 Z A 7 0 0 1 Z A 7 0 0 0 C 7 5 1 4...

  • Page 51: A-Board

    12.2. A-Board A-BOARD (FOIL SIDE) TXN/A10QYLS Q 4 8 0 4 Q 4 8 0 5 R4889 Q 4 6 2 0 R4891 D4801 TP4603 R4887 R4003 R4892 Q4805 R7116 IC7000 C4810 C4863 TP4602 R7115 Q4620 R7114 C4265 C4266 ZA5415 ZA5409 D4820 I C 7 0 0 0...
  • Page 52 A-BOARD (COMPONENT SIDE) TXN/A10QYLS JS1000 JS1001 JS1002 R4621 JS1003 JS1004 JS1005 A 1 3 JS1006 JS1007JS1008 G ( G A ) H ( H A ) J ( J A ) JS1010 JS1013 JS1022 JS1025 JS1011 JS1014 JS1023 JS1026 L8501 K ( K A ) L ( L A ) M ( M A )

  • Page 53: V-Board

    12.3. V-Board V-BOARD (FOIL SIDE) TXN/V10QYMM T P 5 0 7 T P 5 0 2 T P 5 0 4 T P 5 0 1 P b F TNPA4834 1 S E E R E V E R S E F O R S U F F I X .

  • Page 55: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View...
  • Page 56 13.1.2. Accessories...
  • Page 57 13.1.3. Mechanical Replacement Parts List...
  • Page 58 Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0047500 BATTERY COVER 1 PAVCA EAS16S789A SP UNIT K0RB00700018 CONTROL PANEL COMP 1 CIRCUIT BOARD & PANEL PAVCA K2CB2YY00016 AC CORD 1 PAVCA L5EDD9Q00010 LCD PANEL 1 PAVCA N2QAYB000485 REMOTE CONTROLLER 1 PAVCA TBL2AX029SER PEDESTAL ASSY...

  • Page 59: Electrical Replacement Parts List

    13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 60 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2502 F1G1C103A116 C 0.010UF, K, Description C2505 F1G1A104A053 C 0.01UF, K, 10V TXN/A10QYLS CIRCUIT BOARD A (RTL) C2506 F1J1A106A087 C 0.010UF, K,...
  • Page 61 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4854 F1J1A106A087 C 0.010UF, K, C7505,06 F2A1E681A100 E 680UF 25V C7510 F1J1H103A834 C 0.01UF, K, 50V C4855-59 F1G1C104A077 C 0.10UF, K, 16V C7514 F2A1E681A100 E 680UF 25V C4863,64...
  • Page 62 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8046 F1J0G2260001 C 0.001UF, 6.3V C8342,43 F1G1C104A077 C 0.10UF, K, 16V C8047 F1G1C104A077 C 0.10UF, K, 16V C8349 F1G1H1020008 C 1000UF, 50V C8048 F1G1H1020008 C 1000UF, 50V...
  • Page 63 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D7408 B0EAKT000017 DIODE IC8502 TVRR300AGS PAVCA D7503 B0HESM000001 DIODE IC8503 TVRR302S PAVCA D7504 B0BA01400009 ZENER DIODE IC8850 C0DBGYY00203 IC PAVCA D7552 B0JBSL000031 DIODE...
  • Page 64 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q4803 B1ABCF000231 TRANSISTOR R2314 D0GA303JA015 M 30K OHM J PAVCA 0.063W Q4804,05 B1ADCE000022 TRANSISTOR R2316 D0GA303JA015 M 30K OHM J PAVCA Q4806 DSA2001S0L...
  • Page 65 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4253 D0GA100JA015 M 10 OHM, R4822 D0GA472JA015 M 4.7KOHM, J,0.063W J,0.063W R4502,03 D0GA473JA015 M 47 OHM, R4830,31 ERJ2GEJ104 M 100KOHM, J,0.063W J,0.063W...
  • Page 66 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4995 ERJ2GEJ103 M 10KOHM, R7031 D0GD821JA036 M 820 OHM,J PAVCA J,0.063W 0.25W R5605 D0GA223JA015 M 22K OHM J R7084 D0GAR00Z0001 C 0 OHM, 0.063W 0.063W...
  • Page 67 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R7602 D0GD151JA036 M 150 R8000,01 ERJ2GEJ102X M 1K OHM J 1/4W OHM,J,0.25W R8003 D1BA3010A014 M103 OHM, 1/10W PAVCA R7603 D0GDR00Z0002 M 0 OHM, 1/10W R8004...
  • Page 68 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8318 D0GA223JA015 M 22K OHM J R9919 D0GA272JA015 M 2.7KOHM, 0.063W J,0.063W R8319 D0GA393JA015 M R9922 D0GA100JA015 M 10 OHM, 39KOHM,J,0.063W J,0.063W R8320...
