Page 1: Equipment Overview

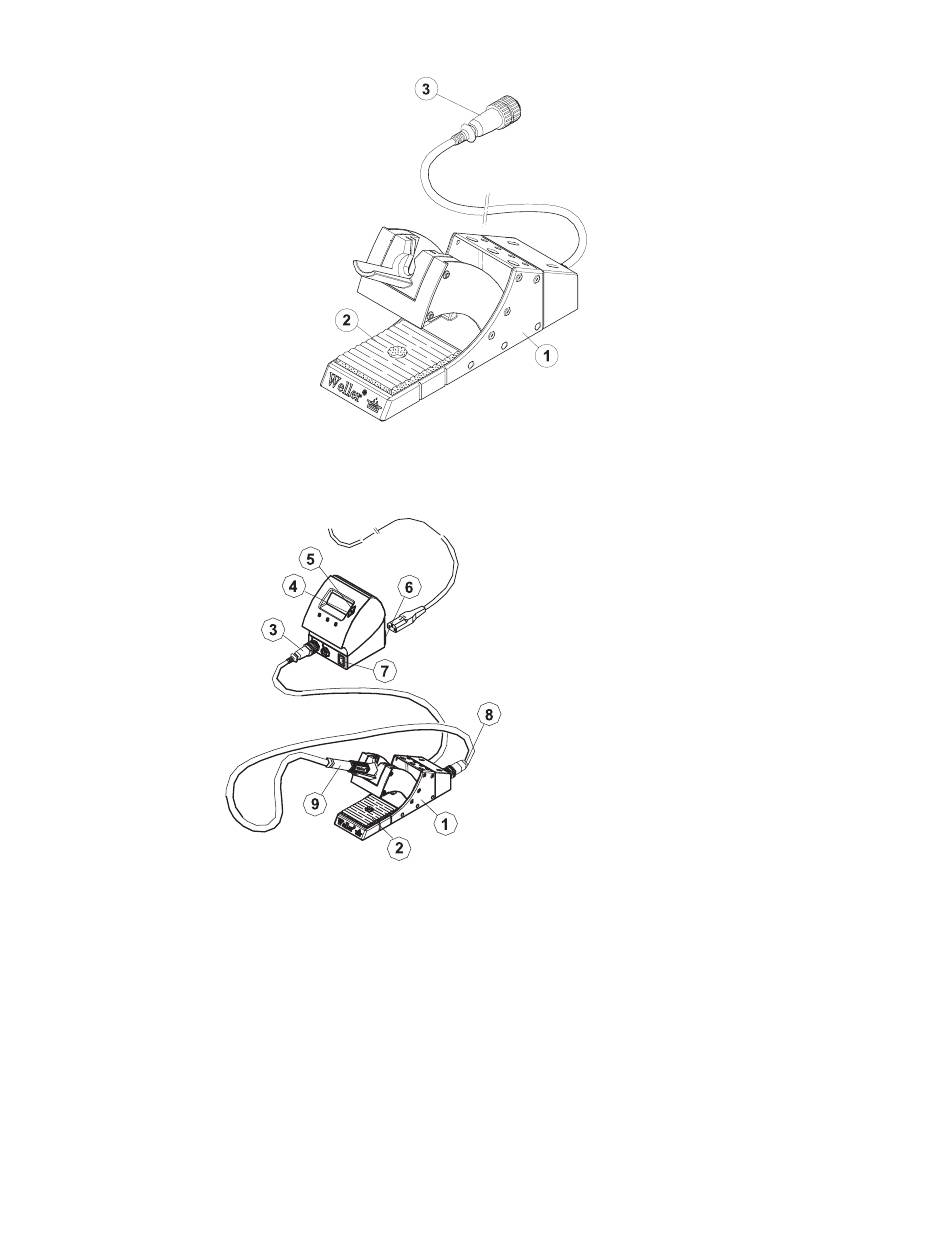

WDH 10T / WDH 20T Operating Instructions Equipment Overview Connection Instructions: Switching Tool Stand Sponge Switching Tool Stand Plug Down Scroll Key Up Scroll Key Receptacle 120 VAC Power Switch Soldering Iron Plug Soldering iron... -
Page 2: Additional Documents
Always wear eye protection when working with soldering and desoldering applications. The Weller WDH 10T / WDH 20T Switching Tool Stand corresponds to the EC Declaration of Conformity in accordance with the basic safety requirements of Directives 89/336/EEC and 73/23EEC. - Page 3 2 Description The Weller WDH 10T / WDH 20T Switching Tool Stand, as opposed to a standard Tool Stand, provides a switching function that is activated by the soldering station. A microswitch integrated in the Switching Tool Stand is actuated when the soldering tool is placed in the holder or removed.
-
Page 4: Operating Guidelines
WDH 10T / WDH 20T 4. Place the soldering iron (9) in the Switching Tool Stand (1) and insert the soldering iron 7-pin plug (8) into the Switching Tool Stand receptacle and lock it by turning clockwise slightly. 5. Switch on the soldering station (7). - Page 5 Note Observe the Operating Instructions of your control unit when setting the valve control function. 5 WDH 10T / WDH 20T: maintenance and care The sponge should be cleaned regularly to remove solder residue using distilled water only.
-
Page 6: Packing List
Spiral wool, 0051382599 8 Packing List WDH 10T − 0051516199 Switching Tool Stand WDH 10T − Operating Instructions WDH 10T / WDH 20T WDH 20T − 0051516299 Switching Tool Stand WDH 20T − Operating Instructions WDH 10T / WDH 20T... - Page 7 This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state. www.Cooperhandtools.com Weller is a registered Trademark and registered Design of Cooper Industries, Inc. U.S Mailing Address: Cooper Hand Tools P.O.
