Indel GIN-SAM3 Quick Start Manual

StandAlone Master

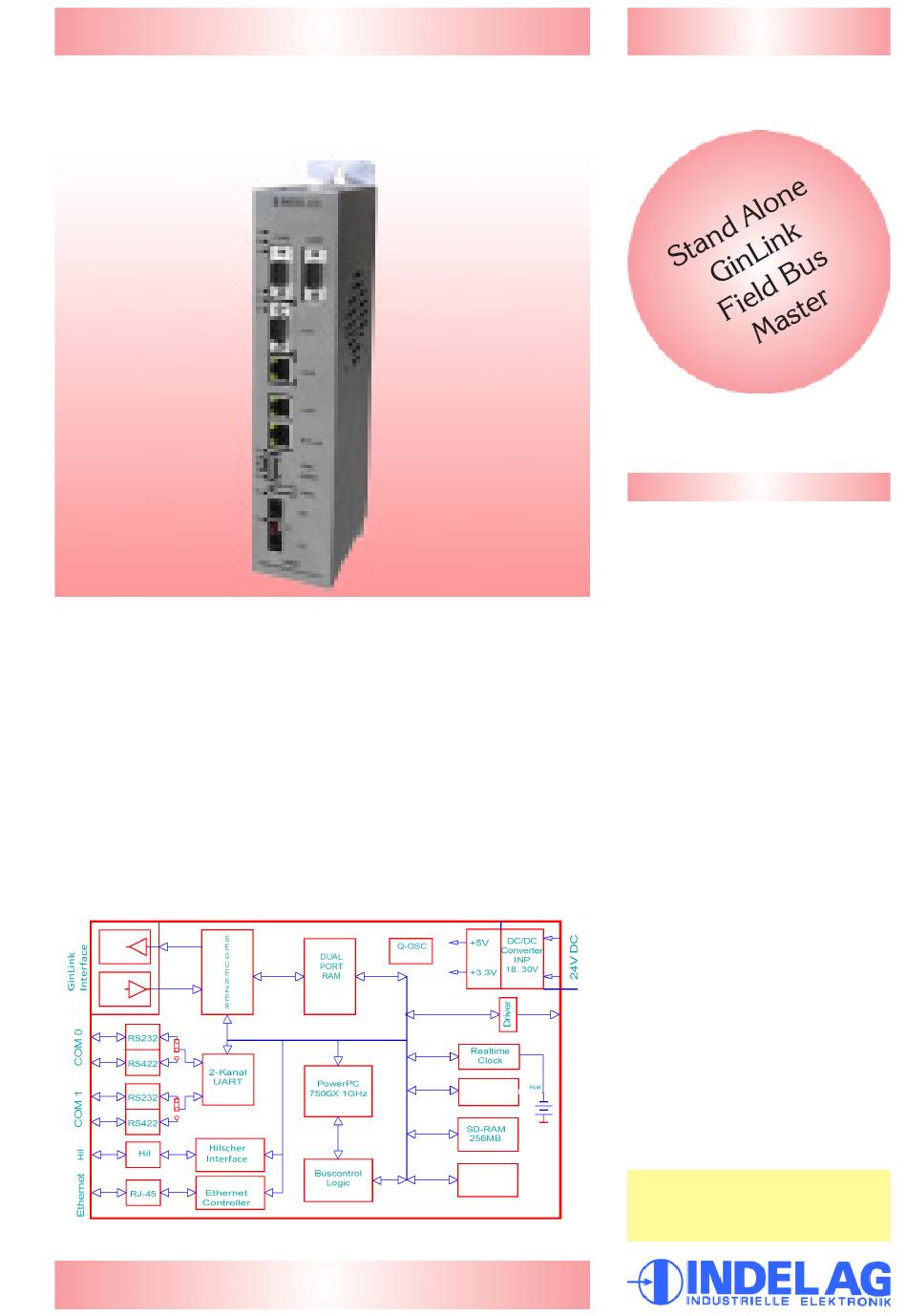

The GINLink Stand Alone Master
board 3 (SAM3) is a GinLink fieldbus
master. The board operates entirely
autonomously and does not need any
higher-ranking computer for opera-
tion. For visualization and software
updates, a 1GBit Ethernet port and
two RS232 interfaces are available.
The real-time multitasking operating
system of the master performs the
1Gb
Tel. +41 44/956 20 00
Fax +41 44/956 20 09
entire control of the machine or plant.
Standard firmware enables the master
to control up to 64 axes in addition to
the entire machine/plant.
The master is programmed via the inte-
grated C++ development environment
or the PLC-like ISM language, which
also has real-time and multitasking
capabilities. Up to 250 GIN-Modules can
be connected to the GIN-SAM Master.
125MHz
MRAM
0.5MB
Flash
16MB
CH-8332 Russikon
1
Tüfiwis 26

Technical Data

Operating system
- Real-time clock
- Multitasking operating system
- Real-time capabilities
32-Bit RISC Prozessor
- PowerPC 750GX , 800MHz or-
1GHz Clockrate
- 125 MHz 64-Bit Bus
Memory
- 0.5MByte MRAM (magnetoresisti-
ve)
- 16MByte Flash
- 256MByte SDRAM
GINLink
- 1GBit Ethernet Fieldbus
- Deterministic, realtime
INFO-Link
- Glass fiber medium
- Ring topology with deterministic
access time
- 11MBit/s transmission rate
Interfaces
- 1 GBit Ethernet
- 2 independent S-I/O interfaces,
RS232 or RS422/RS485
- Hilscher Interface
GIN-SAM3 610736800 800-256
GIN-SAM3 610736801 1G-256
GIN-SAM3 610736804 1G-256-Hil
Rev. 1108
SAM3
