Summary of Contents for VITRA Eames Radio
-
Page 2: Technical Support
No part of this publication may be copied, distributed, transmitted or transcribed without the permission of Vitra GmbH. Alternatively, email support@revo.co.uk VITRA and The Eames Radio are trademarks or registered trademarks of Vitra GmbH. For all the other inquiries please contact service@vitra.com or visit www.vitra.com/contact/contact-product-service... -
Page 3: Table Of Contents

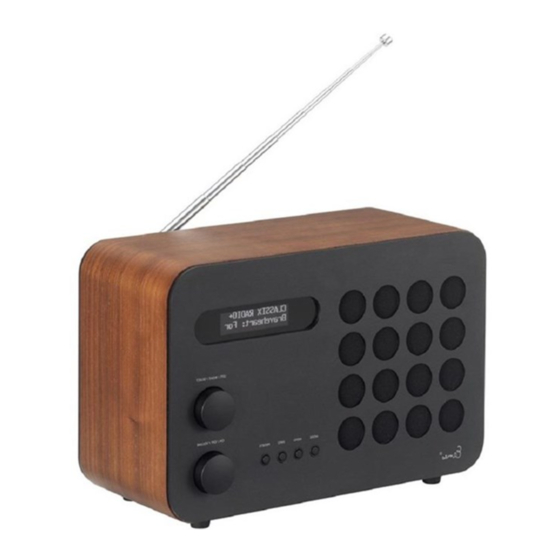

UNPACKING YOUR RADIO FCC STATEMENTS The Eames Radio box should include the following items: This device complies with part 15 of the FCC Rules. Operation is ・ The Eames Radio subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any ・... - Page 4 ANATOMY OF THE EAMES RADIO LEFT / RIGHT / SELECT LEFT / RIGHT / SELECT CONTROL DIAL CONTROL DIAL ON / OFF / VOLUME MODE MENU INFO PRESETS ON / OFF / VOLUME MODE MENU INFO PRESETS POWER / VOLUME DIAL...
-
Page 5: Power Supply
The Eames Radio will now automatically perform a scan to see what DAB stations are being broadcast in your area. -
Page 6: Dab Radio Mode
GETTING READY FOR DAB OPERATION Please ensure that the radio’s antenna is extended before operation in DAB Mode. When you switch on the Eames Radio for the first time, it will automatically perform a scan Scanning... 52 to see what stations are being braodcast in your area, before storing them alphabetically in the radio’s memory. - Page 7 FAVOURITE STATION PRESETS The Eames Radio allows you to store your 10 favourite stations as presets, accessible via the PRESETS button on the front of the radio. To save the station you are currently listening to as a preset, simply press the PRESETS Preset Recall button then use the CONTROL dial to find an unused (empty) location.
-
Page 8: Dab Mode Menu Options
DAB MODE MENU OPTIONS STATION INFO In DAB MODE, the Eames Radio is capable of displaying various pieces of information on its screen. By pressing the INFO button, you can sequentially cycle through the following types of information. BBC R6M... - Page 9 DAB MODE MENU OPTIONS DYNAMIC RANGE COMPRESSION (DRC) If you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking), you may wish to compress the audio’s dynamic range. <DRC > This has the effect of making quiet sounds louder, and loud sounds quieter.
-
Page 10: Fm Radio Mode / Aux In Mode
FAVOURITE STATION PRESETS The Eames Radio allows you to store your 10 favourite stations as presets, accessible via the PRESETS button on the front of the radio. - Page 11 To do so, connect your external audio source to the 3.5mm AUX IN connector on the rear of the Eames Radio. Turn the volume down on both the Eames Radio and, if adjustable, the external device. Auxiliary Input Now press MODE until the AUXILIARY INPUT MODE intro screen is displayed.
-
Page 12: Bluetooth Mode
This connection is stored in the memory of both devices, meaning that once you ‘pair’ a particular device with the Eames Radio, you won’t have to repeat the pairing process again. HOW TO PAIR A BLUETOOTH DEVICE WITH THE EAMES RADIO... - Page 13 The Eames Radio will remember up to 8 individual Bluetooth devices. When you reach the point of having a 9th device that you wish to pair, the Eames Radio will pair with the 9th device and automatically erase the oldest-paired device from its memory.
-
Page 14: Alarm Clock
When an alarm is sounding, pressing the CONTROL dial will STOP the alarm. Alarm Off PLEASE NOTE : To wake you gently, the EAMES Radio will slowly increase the volume of the alarm from silent to your preset volume level over a 30 second period. - Page 15 At this point simply press the CONTROL dial and turn the dial through a range of 15 minutes pre-set SNOOZE durations, either 5, 10, 15 or 30 minutes, then press the dial to select. When SNOOZE is activated, the Eames radio will return to standby for the selected period of time. SLEEP FUNCTION By using the SLEEP function, you can set your radio to automatically switch itself into STANDBY mode.
-
Page 16: Miscellanous Settings
MISCELLANEOUS SETTINGS EQUALISER The Eames Radio provides you with a significant degree of control over its standard (factory default) audio settings. This includes control over BASS and TREBLE and the ability to use one of five preset EQ settings. It is also possible to create your own personalised EQ setting - known as “My EQ”. - Page 17 The TIMEOUT setting enables control of the length of time it takes for the Eames Radio to transition from its ON brightness level, to the brightness level when the radio is in STANDBY.
- Page 18 MISCELLANEOUS SETTINGS FACTORY RESET By selecting FACTORY RESET from the menu, you can reset your radio to its default factory values, erasing any personal settings that may have been configured (time/date and presets will be erased). Factory Reset? To perform a factory reset, press MENU then select FACTORY RESET. Now answer YES. <No>...
-
Page 19: Troubleshooting
Bluetooth Mode: Poor audio quality Your Bluetooth device may be Move your Bluetooth device closer to out of range. your Eames Radio. Electromagnetic interference. Move your Bluetooth device away from other sources of interference such as other Bluetooth devices, wireless... - Page 20 TECHNICAL SUPPORT TEL + 44 (0) 1555 666 161 EMAIL support@revo.co.uk WEB www.revo.co.uk/support Eames Radio User Guide Version 1.0...
