Summary of Contents for ChiQ H6 Series

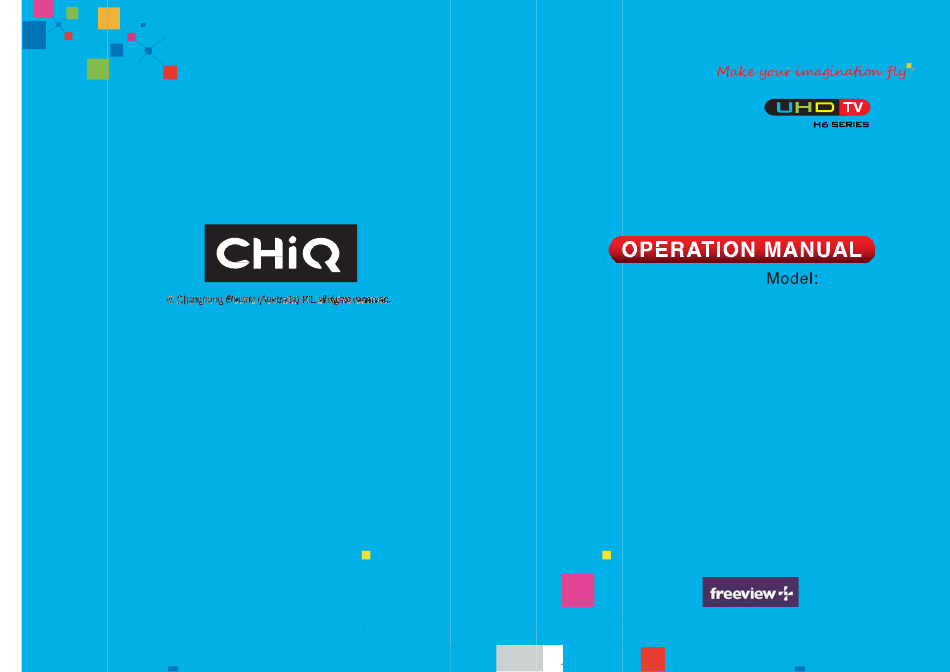

- Page 1 U43H6...
-
Page 2: Dear Customer
Warnings DEAR CUSTOMER: Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference. Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN... -
Page 3: Important Warnings And Cautions
Warnings IMPORTANT WARNINGS AND CAUTIONS! Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. - Page 4 Warnings 11. Wall mounting---When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature. 12. Stand--- Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
- Page 5 Warnings IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using cabinets or stands recommended by the manufacturer of the television. Only using furniture that can safely support the television.
-
Page 6: Important Safety Instructions
Safety Instructions IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 7. Do not block any ventilation openings. 2. Keep these instructions. Ventilation should not be impeded by 3. Heed all warnings. covering the ventilation openings with 4. Follow all instructions. items such as newspapers, table-cloths, curtains etc. - Page 7 Safety Instructions 10. Protect the power cord from being 13. For added protection for this product walked on or pinched particularly at during a lightning storm, or when it is left plugs, convenience receptacles, and the unattended and unused for long periods point where they exit from the apparatus.
-
Page 8: Front Panel
Main n Unit Con ntrols Front Panel Remo ote sensor Powe er Indicator OWER/MENU U Button : Long Press fo r power off. Short Press fo or power on / h home page. CHANNEL but tons: ▲/▼ CURSOR butt tons: in m menu mode) - Page 9 Main n Unit Con ntrols Back v view controls s and sockets DIGITAL AUDIO PC AUDIO HDMI3 HDMI2 HDMI1(ARC) Name Description Local area ne etwork (LAN) p port. Connect a a LAN cable to this p port to connect t to the Netwo ork.
-
Page 10: Cable Installation
Getti ing Starte Cable Installation Before e the installatio on and use, ple ease read car efully the relev vant content in n “Warning and Sa afety instructio ons”. Take o out the TV from m the wrapping g package and d put it in a dra rafty and flat p lace. - Page 11 Getti ing Starte Using the Remote C Control When using the rem mote control, a im it at remote e sensor on th he television. I If there is an object between the r remote contro ol and the remo ote sensor on the unit, the u unit may not...
-
Page 12: Remote Control
Remote Control The buttons of the original remote control are as following: : Power, Press to enter or exit the standby mode. : Press to mute or restore sound. II: Pause (in Media/PVR mode). Press to start time shift function (in DTV mode). - Page 13 Remote Control 16. MENU ( ): Press to enter the menu screen for various optional adjustable settings. 17. EXIT ( ): Quit the current interface. ▲/▼/◄/►: Press the direction buttons to select menu options or settings. 19. OK: Select the current item or enter into the AUDIO function of the menu of the next level.
- Page 14 ic Operat tion ...
-
Page 15: Basic Operation
Basic Operation Turning on and off the TV • Turn on the TV Plug the power cord into a suitable power point, then press the POWER ( ) button, on the lower side of the back panel (or on the remote control, making sure to aim it at the sensor at the front of the TV);... -
Page 16: Programme Selection
Basic Operation • Select the antenna type Press the ▲/▼ buttons to select the tuning modes and then press the OK button. (For more detailed information, please refer to Channel menu → Auto Tuning). Press the ► button to go to the next step. Press the ◄ button to go to previous step. •... -
Page 17: Menu Operation
Menu Operation How to Navigate Menus Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu. Setting 1. -
Page 18: Configuring The Channel Menu
Menu Operation Configuring the Channel Menu • Auto tuning: Press the OK button to enter sub-menu. – Tune Type: Press the ▲/▼ button to select tune type: Channel DTV+ATV, DTV, ATV. Setting / – Country: Press the ▲/▼ button to select country. Auto Tuning –... - Page 19 Menu Operation Skip: Press the BLUE button to skip the channel. (Your TV set will skip the channel to view the channels.) automatically when using • Signal Information (In DTV mode): Display the current Signal Information. Configuring the Picture Menu •...
- Page 20 Menu Operation Configuring the Sound Menu • Sound Mode: You can select a sound mode to suit your personal preferences. Seven-stage equalization sound can be adjusted when the sound mode is set to User. - Surround Sound: Press ▲/▼ buttons to select Surround Sound, you can select Off, Low, Sound Middle, and High.
- Page 21 Menu Operation Network Function Operation Instruction You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. Connecting to a Wired Network • You can attach your TV to your LAN using cable in three ways: You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable.
- Page 22 Menu Operation Wired Network Setup – How to set up automatically (Wired) Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. 1. Connect your TV to your LAN as described in the previous section. 2.
-
Page 23: Wireless Network Configuration
Menu Operation Connecting to a Wireless Network You can connect your TV to your LAN through a standard wireless router or modem. WirelessIPsharer The Modem Port on the Wall (AP having DHCP server) LAN Cable Wireless Network Configuration Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key. - Page 24 Menu Operation If Your TV Fails to Connect to the Internet： • Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access.
- Page 25 Menu Operation • HDMI EDID (In HDMI mode): Switch EDID Version, Select Enhanced when source signal is transferred by HDMI2.0 specification (for 4K content, such as 4K media player, 4K DVD player) and Select Standard when source signal is transferred by HDMI1.4 specification (for HD FHD content).
- Page 26 Menu Operation There are two types of recording: Instant Recording and Schedule Recording. ...
- Page 27 Menu Operation Instant Recording can record the current TV programmes, while Schedule Recording can start at a specified time and record the TV programmes automatically on the day, time and duration you choose. – Instant Recording Select the channel you want, then press (RECORD) button on the remote control to start recording.
- Page 28 Menu Operation Press the ▲/▼ buttons to select the Record list. Use the ▲/▼ buttons to select a recorded file and press OK to start playback in full screen mode. Press the RED button to delete the file you no longer require. ...
- Page 29 Menu Operation For large file sizes and large capacity storage devices, the loading speed may be longer. The recognition speed of a USB storage device may vary depending on the device. When connecting or disconnecting the USB storage device, ensure the TV is not in USB mode, otherwise the USB device or the files stored in it may be damaged.
-
Page 30: Configuring The Timer Menu
Menu Operation Configuring the Timer Menu • Auto Sync.: If set it to ON, the TV will sync the local clock according to the DTV broadcasting time Timer automatically. Setting / • Time Zone: Display your time zone Auto Sync. •... - Page 31 Menu Operation PROGRAMME GUIDE (In DTV mode) Press EPG button to display the Programme Guide menu. This function let you know the detailed information of the channel, indicating the time of the program playing. From the PROGRAMME GUIDE it is possible to check the program information for the next eight days (If the information is available from the broadcaster).
- Page 32 Menu Operation Q.MENU Press Q.MENU button on the remote control to display the quick menu. Press ▲/▼ to select the items, and press the OK/► button; then press ▲/▼ buttons to adjust. (Options: Picture Mode, Sound Mode, Sleep Timer, Aspect Ratio, Sports Mode, Subtitle Languages, etc…) Press Q.MENU button to exit.
- Page 33 Home Page Smart Home Operation Introduction Home is an entry interface for all the other functions, which could enter from this interface layer by layer. Via using home menu function, different needs of users could be met, making them fully enjoy video and audio effects brought by the machine.
- Page 34 Home Page Main Operating Interface Media /USB 1/ Video Photo Music System Volume 5327 5502 5505 6308 Up Folder Files 6369 Android externaldisk MUSIC PHOTO Video Exit Tek.png 86-016.png 86-017.png 86-018.png 86-019.png 86-020.png ■ Basic operation 1. Press ▲/▼ buttons to cyclically select Files, Music, Photo and Video in the USB main menu.
- Page 35 Home Page • Music Play Console Press the up key to enter the music player console, press the up / down key to select the control button repeatedly, and press the OK key to perform the functions of the selected key.
- Page 36 Home Page ■ Video Files When entering “Media”→“Video”, follow the above operation modes to start playing video files. 1. During the normal play process, press and hold the left / right key for rewind / fast forward play. 2. Press the up key to recall the video play console. 3.
- Page 37 Home Page Applications Press SOURCE ( ) button on the remote to display the home main interface. Then use the Arrow buttons to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the desired APP directly. ■...
- Page 38 Teletext Using the teletext feature • Display teletext 1. Select a TV station with a teletext signal. 2. Press the button to enter teletext mode. 3. Press the button to enter Mix mode, this function enables you to superimpose the teletext page over the TV program.
-
Page 39: Troubleshooting Guide
Troubleshooting Guide Troubleshooting Before contact the service technician, perform the following simple checks. If any program still persists, unplug the TV and calling for serving. PROBLEM POSSIBLE SOLUTION - Check whether the main plug has been connected to a wall let. No sound and picture - Check the picture contrast and brightness settings. -
Page 40: Maintenance
Troubleshooting Guide Maintenance Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the screen 1.
