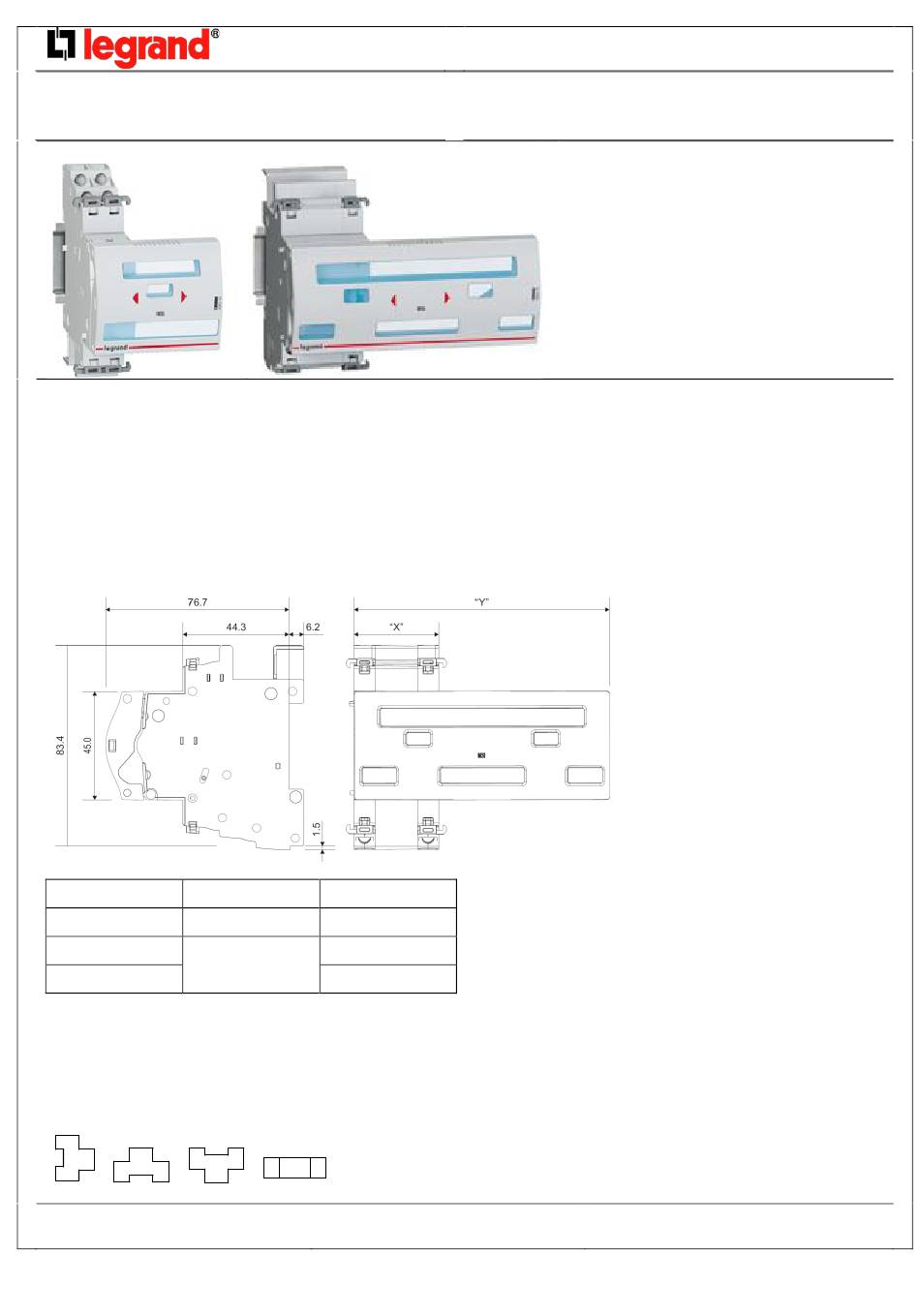

LEGRAND DX3 Series Technical Data Sheet

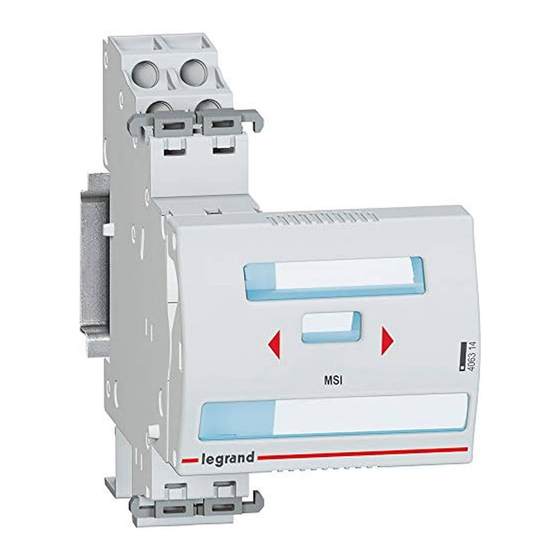

DX Manual Supply Invertor
3

1. DESCRIPTION - USE:

For a pre-defined circuit the Manual Supply Invertor (MSI), allows the end user to manually switch to another power source (ex. a generator) when
the mains supply is not available

2. RANGE

Cat. Nos:
. 4 063 14 : for devices 2 poles/2 modules.
.4 063 15 : for devices 3 poles/3 modules.
. 4 063 16 : for devices 4 poles/4 modules.

3. OVERALL DIMENSIONS:

Cat. Nos
4 063 14
4 063 15
4 063 16
4. PREPARATION –CONNECTION
Fixing:
. On symmetric rail EN/IEC 60715 or DIN 35 rail, by the device which is associated.
Operating positions:
. Vertical, horizontal, upside down, on the side
Technical data sheet: F01931EN/00
"X" (mm) "Y" (mm)
17.8 mm 53.1 mm
89.0 mm
35.6 mm
106.8 mm
87045 LIMOGES Cedex
Telephone: +33 5 55 06 87 87 – Fax: +33 5 55 06 88 88
Cat. Nos: 4 063 14/15/16
Updated: -
CONTENTS
1. Description - Use ................................ 1
2. Range ................................................. 1
3. Overall dimensions ............................. 1
4. Preparation - Connection .................... 1
5. General Characteristics ....................... 3
6. Compliance and approvals .................. 3
Created: 15/04/2014
PAGE
1/3
