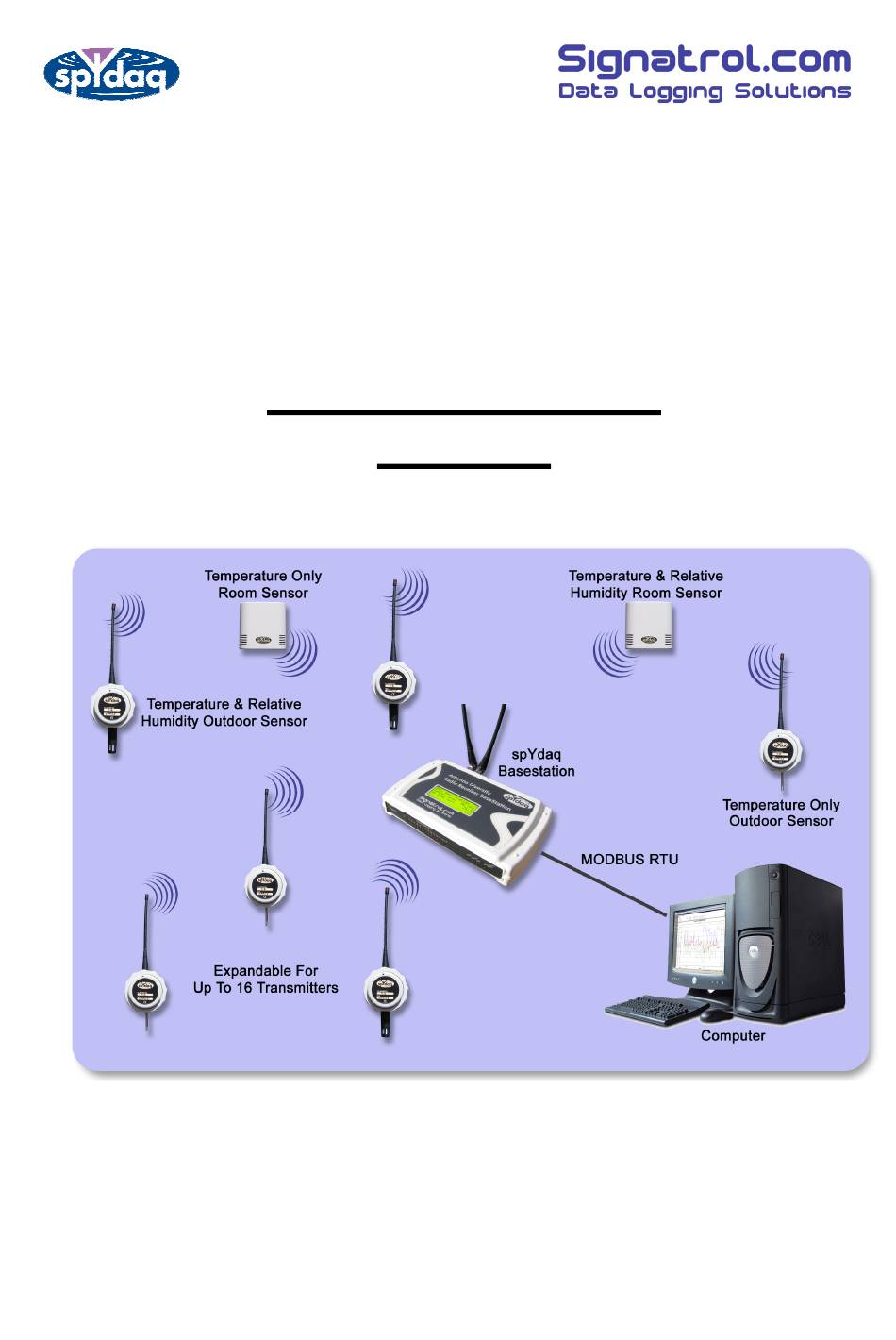

- Page 1 Hardware Manual. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 1 of 36...
-
Page 2: Table Of Contents
Connecting the Base-station................12 Optional Auxiliary Power Supply............... 13 Wiring the Alarm Connector................14 Configuration the Base-station................15 First Use ............................16 Find Base-station .......................... 17 Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 2 of 36... - Page 3 Base-Station Runtime Screens ................26 Basic Menu............................ 26 MODBUS RTU Registers ................. 28 Trouble Shooting ..................... 29 Specifications ....................31 10.1 spYdaq Radio Transmitters ................31 General............................31 10.2 Basestation...................... 32 General............................32 Signal Strength..................... 33 Glossary of Terms ..................34 System Notes....................
-
Page 4: Document History
Add 4 channel information • Swap switch tables around to LSB first. • SIG-1227-01-06 Added section 11 (Signal Strength) SIG-1227-01-07 Release 07/06/2017 Changed made for Mk2 Transmitter Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 4 of 36... -
Page 5: Introduction
It is necessary to connect the cables and pre-configure the base-station to enable it to work with the transmitters Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 5 of 36... -
Page 6: Flow Chart
ON/OFF Switch Connect USB cable to Ensure spYmonitor transmitter and check Collector is running, configuration using and autostarts when spYconfig PC is rebooted. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 6 of 36... -
Page 7: Transmitter Set-Up
Transmitters must be enabled in the Basestation using the spYconfig software. Signals arriving at the Basestation which have not been enabled within the Base-station configuration will be ignored. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 7 of 36... -
Page 8: Setting The Channel Frequency
Note: whatever frequency is selected for transmission, ALL TRANSMITTERS MUST BE SET TO THE SAME FREQUENCY and THIS MUST MATCH THE FREQUENCY SELECTED IN THE BASE-STATION. If the user is using a SPYDAQ HPR (High Power Repeater) the transmitter frequency channel may differ to the Base-Station channel due to the repeaters operation. -
Page 9: Setting The Transmission Rate
(See Mismatch error). Please note that many of the sensors supplied have been pre-configured and need no further attention. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 9 of 36... -
Page 10: Connecting The Sensor
4 to 20mA input has an internal impedance of approx 120ohms. The impedance stated includes the resistance of a series current limiting PTC. The maximum voltage drop across the spYdaq input is 3V @ 25mA. Reference : SIG-1227-01-07 Change Note : CN0112... -
Page 11: Positioning The Transmitters
5.1 General For Hardware configuration: spY-config must be installed on a PC used to setup the spYdaq base-station via USB. The configuration internal to the base-station must match the transmitter switch configuration. The user can also setup alarm for each transmitter which will activate the internal relay and beeper. -
Page 12: The Base-Station
Connect the power supply cable and plug the power supply into a suitable mains outlet. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 12 of 36... -
Page 13: Optional Auxiliary Power Supply
(for a fully populated system). For more details contact the sales office. Image of SPYPOWER-APS Image showing SPYPOWER-APS installed below base-station. Image showing SPYPOWER-APS Installed below base-station with power connection linked. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 13 of 36... -
Page 14: Wiring The Alarm Connector
Power Off As can be seen from the table, the effect of a power failure is the same as when the system encounters an alarm condition. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 14 of 36... -
Page 15: Configuration The Base-Station
Make sure that the Base-station is powered and the USB port connected, via the cable provided to the PC where spY-Config is installed. Run spY-Config. The following screen will appear: Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 15 of 36... -
Page 16: First Use
The PASSWORD will be required if you want to enable the security features later. After successful entering of the password, the following screen will be presented: Then click on Base-station Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 16 of 36... -
Page 17: Find Base-Station
Selecting this tab takes you to a ‘Synchronise Clock’ window where the time, date and time zone etc held within the Base-station can be synchronised to the Time and Date etc used on the PC. Now close this screen. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 17 of 36... -
Page 18: Configure
Health Parameters. It is strongly recommended that this interval remains at its default of 12 months to ensure accurate readings. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 18 of 36... -
Page 19: Frequency Channel
Handle late as When there is a late reading as defined above the system can interpret this as either a Warning or Alarm. The recommended mode is Alarm. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 19 of 36... -
Page 20: Handle Low Bat As
GPRS version of the base-station must set the format to = “ABCD (MODEM)”. After selecting the various parameters CLICK WRITE and close the screen. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 20 of 36... -
Page 21: Security
Tick the menus where you want to restrict access and click Save. The password will now be required to access the selected screens as shown below. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 21 of 36... -
Page 22: Diagnostics
Signal < -100dBm Advanced It shows a chart of field strength for each transmitter on the system. For reliable operation signals should be in excess of -80 dBm. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 22 of 36... - Page 23 Clicking on the + against a transmitter opens up a window that shoes various transmitter performance characteristics. For more information on signal strength see section 11. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 23 of 36...
-
Page 24: Transmitter Configuration
(Normally 10 Minutes). Move to next tab or save. Internal Temperature Each transmitter has an on-board temperature sensor that can have a low and a high alarm set. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 24 of 36... -
Page 25: Humidity
The Base-Station is supplied with two small standard aerials and for the majority of installations this is entirely adequate. Antennas with gain, antennas with long cables and directional antennas are available from Signatrol which may be able to provide enhanced performance in difficult areas. Please contact the Sales Office for further information 7.5 Base-Station Controls... -
Page 26: Base-Station Runtime Screens
0 to F. Eeprom Installed memory circuits • Information Total Log Memory size • Remaining free Log Memory • Factory Base-station serial number • Page Firmware version. • Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 26 of 36... - Page 27 The radio receiver will not function until the clock is correctly set. Below are a few example screens. Factory: Real Time Clock Last Received Transmitter Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 27 of 36...
-
Page 28: Modbus Rtu Registers
MODBUS RTU Registers The spYdaq Base-station can have a MODBUS output which is compatible with many industrial standard MODBUS packages. MODBUS works by using a series or registers that you can either write to or read from. Specification SIG1223-01-XX defines all the registers and their functions a copy of which can be found on this CD. -
Page 29: Trouble Shooting
Modbus master and Base-station must be set to the same stop bit setting. Check using spY-Config. Modbus master and Base-station must be set to the same parity setting. Check using spY- Config. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 29 of 36... - Page 30 Double click the device and install the driver provided on the spY-Config CD. The filename is Basestation.inf. Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 30 of 36...
-
Page 31: Specifications
Specifications 10.1 spYdaq Radio Transmitters General Function Specification Power Supply 1 AA Size Lithium Thionyl Chloride 2.2 Ah, 3.6VDC Signatrol Part: SPYDAQ-ACC-01 Typical Battery Life (Using Signatrol supplied batteries). Sample Rate (Seconds) Years 1800 >8 Ambient @ 25°C Centre Frequency 434MHz Version A) 433.55 MHz... -
Page 32: Basestation
10.2 Basestation spYdaq Base-station, accepts up to 16 transmitters with LED and LCD indication, audio annunciation, alarm relay, USB configuration port, RS232 Modbus (on some models), RTU serial port, 2 antennas, serial lead and mains power supply. General Function Specification... -
Page 33: Signal Strength
Raise the Transmitter antenna if close to the ground. Move the transmitter antenna away from solid walls. Use an optional spYdaq signal repeater (SPYDAQ-1000-HPR). The Base-Station will receive signals down to -100dBm, but signals below -80dBm are more prone to errors. -
Page 34: Glossary Of Terms
PC software to configure the basestation Type Mismatch Error caused when transmitter and Basestation configurations do not match. Warning A problem or potential problem with the system requiring operator intervention Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 34 of 36... -
Page 35: System Notes
System Notes. Project :……………………………….. Date:………………………………… Reference : SIG-1227-01-07 Change Note : CN0112 spYdaq Hardware Manual Page 35 of 36... -
Page 36: Channel Mapping Template
Channel Mapping Template. Project :……………………………….. Date:………………………………… Frequency A/B/C/D* Location Temperature (a) RH (b) Universal(c) Description Description Type Description SIG-1227-01-07 spYdaq Hardware Page Manual__CN0112.doc...
