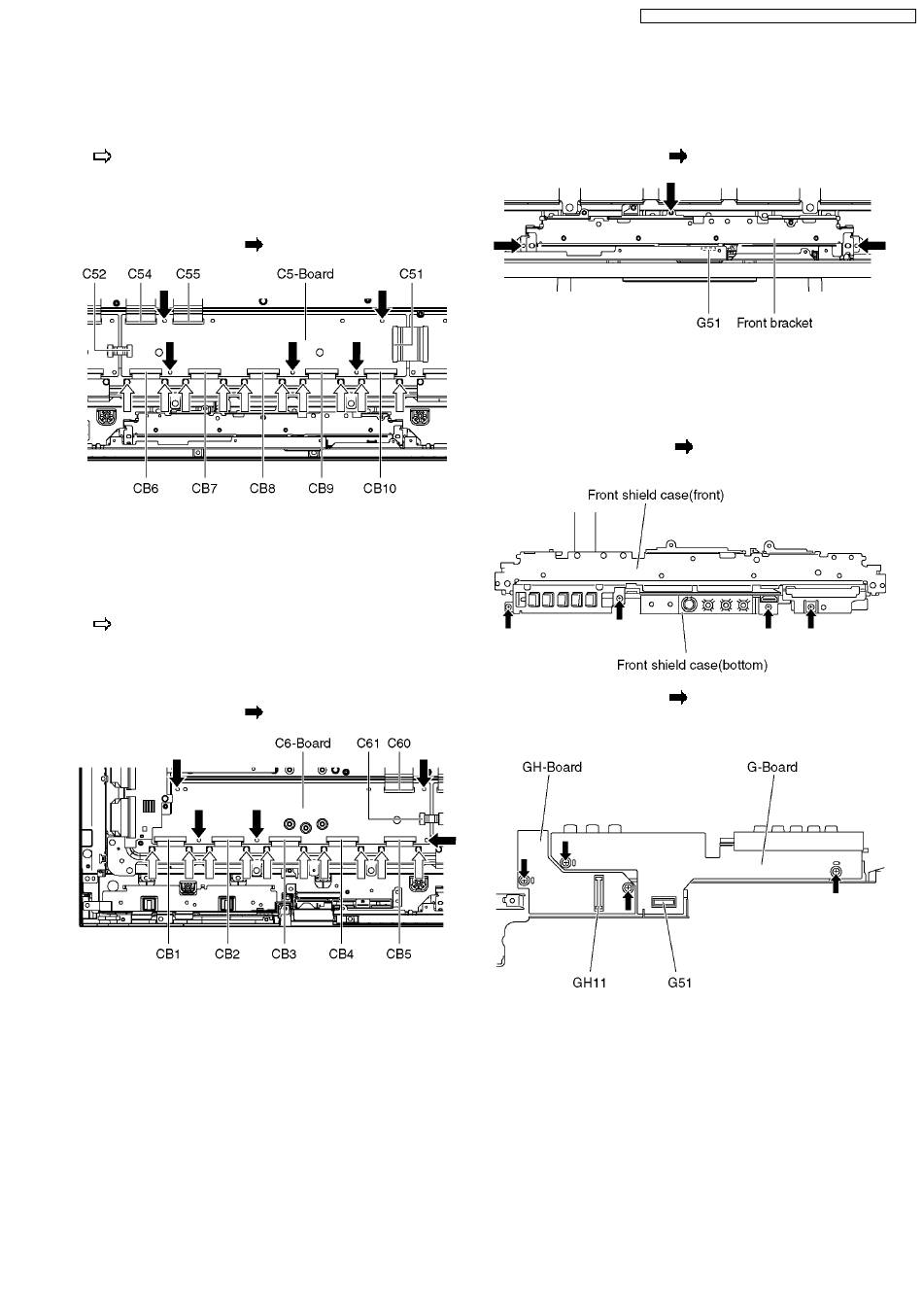

6.22. Remove the C5-Board

1. Remove the tuner unit. (See section 6.5.)
2. Remove the flexible cables holder fastening screws (×10
).
3. Disconnect the flexible cables (CB6, CB7, CB8, CB9 and
CB10).
4. Disconnect the flexible cables (C51, C52, C54 and C55).
5. Remove the screws (×5

6.23. Remove the C6-Board

1. Remove the speaker box assy right. (See section 6.9.)
2. Remove the stand bracket right. (See section 6.17.)
3. Remove the flexible cables holder fastening screws (×10
).
4. Disconnect the flexible cables (CB1, CB2, CB3, CB4 and
CB5).
5. Disconnect the flexible cables (C60 and C61).
6. Remove the screws (×5
) and remove the C5-Board.
) and remove the C6-Board.
TH-50PZ700B / TH-50PZ700E / TH-50PY700F / TH-50PY700P

6.24. Remove the front bracket

1. Unlock the cable clampers to free the cable.
2. Disconnect the connector (G51).
3. Remove the screws (×3
6.25. Remove the G-Board and GH-
Board
1. Remove the front bracket. (See section 6.24.)
2. Remove the screws (×4
case (front).
3. Remove the screws (×4
(G51 and GH11).

4. Remove the G-Board and GH-Board.

17
) and remove the front bracket.
) and remove the front shield
) and disconnect the connector
