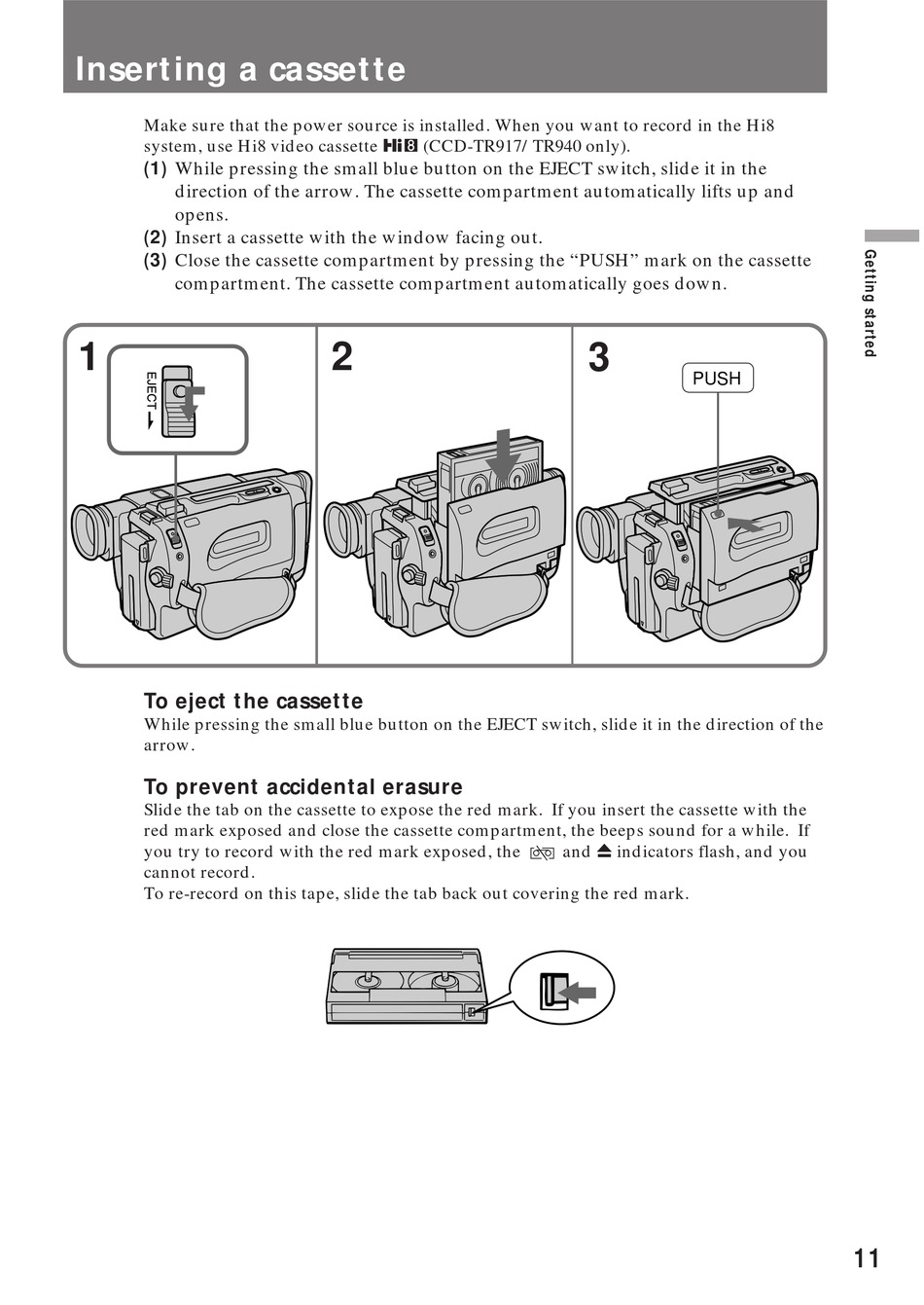

Inserting a cassette

Make sure that the power source is installed. When you want to record in the Hi8
system, use Hi8 video cassette H (CCD-TR917/TR940 only).
(1) While pressing the small blue button on the EJECT switch, slide it in the
direction of the arrow. The cassette compartment automatically lifts up and
opens.
(2) Insert a cassette with the window facing out.
(3) Close the cassette compartment by pressing the "PUSH" mark on the cassette
compartment. The cassette compartment automatically goes down.
1
To eject the cassette
While pressing the small blue button on the EJECT switch, slide it in the direction of the
arrow.
To prevent accidental erasure
Slide the tab on the cassette to expose the red mark. If you insert the cassette with the
red mark exposed and close the cassette compartment, the beeps sound for a while. If
you try to record with the red mark exposed, the
cannot record.
To re-record on this tape, slide the tab back out covering the red mark.
2
3
PUSH
and 6 indicators flash, and you
11
