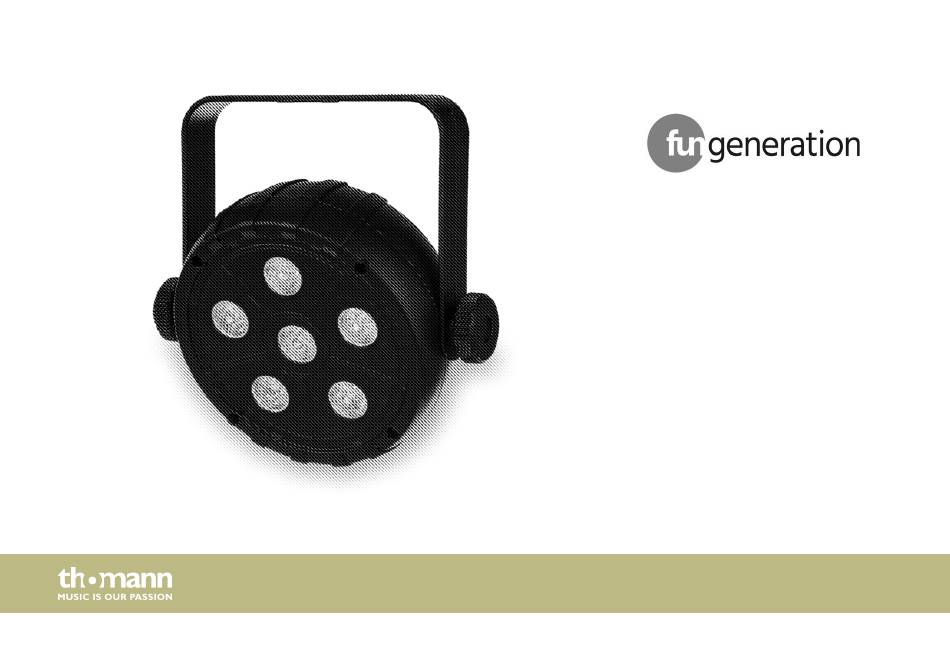

- Page 1 USB PartyPar 6 RGB LED PAR user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 12.02.2019, ID: 448953 (V2)
-
Page 3: Table Of Contents
1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 14 Installation..............................15 Starting up..............................18 Connections and controls........................19 Operating..............................21 Technical specifications........................22 Cleaning............................... 24 Protecting the environment......................25 USB PartyPar 6 RGB... -
Page 4: General Information
General information General information This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. -
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. USB PartyPar 6 RGB... -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. USB PartyPar 6 RGB...
- Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED PAR...
-
Page 9: Safety Instructions
Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. USB PartyPar 6 RGB... - Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 11 Eye damage caused by high light intensity Never look directly into the light source. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. USB PartyPar 6 RGB...
- Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 13 Failure to do so could result in damage to the device and pos‐ sibly the user. Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. USB PartyPar 6 RGB...
-
Page 14: Features
Features Features Special features of the device: Decoration LED spotlight with RGB colour mixing (6 × 3 W RGB LED) Three operating modes: Sound control, fade programme or automatic programme sequence Micro-USB port for power supply, can be operated with a power bank or the supplied power adapter Compact dimensions and low weight Ideally suitable for use in party rooms... -
Page 15: Installation
Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. USB PartyPar 6 RGB... - Page 16 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 17 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the bracket. Please note that this device must not be connected to a dimmer. USB PartyPar 6 RGB...
-
Page 18: Starting Up
Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 19: Connections And Controls
Connections and controls Connections and controls Rear panel USB PartyPar 6 RGB... - Page 20 Connections and controls 1 Bracket 2 Locking screw for the bracket. 3 Button to set the three operating modes [SOUND] (sound control), [FADE] (fade programme) or [AUTO] (automatic programme sequence) 4 Micro-USB connection socket for the power supply (power bank or power adapter) LED PAR...
-
Page 21: Operating
Automatic programme sequence: 25 seconds colour change, 15 seconds fade colour change. Operating mode [SOUND] Sound control: Colour change on audio signal. If there is no audio signal for 3 seconds, the automatic programme sequence is activated. Operating mode [FADE] Fade programme: Colour change with fade effect. USB PartyPar 6 RGB... -
Page 22: Technical Specifications
Technical specifications Technical specifications Light source 6 × RGB ED, 3 W Control Switch on the rear side of the device Input connections Power supply Micro USB connection socket to connect a power bank or a power adapter Power consumption Power supply Power adapter (5 V / 1 A ) or via USB port... - Page 23 Technical specifications Further information Design Flat PAR Colour mixture LED type x-in-1 Base housing Fanless Remote control Not possible Wireless DMX Housing colour Black USB PartyPar 6 RGB...
-
Page 24: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 25: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. USB PartyPar 6 RGB... - Page 26 Notes LED PAR...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
