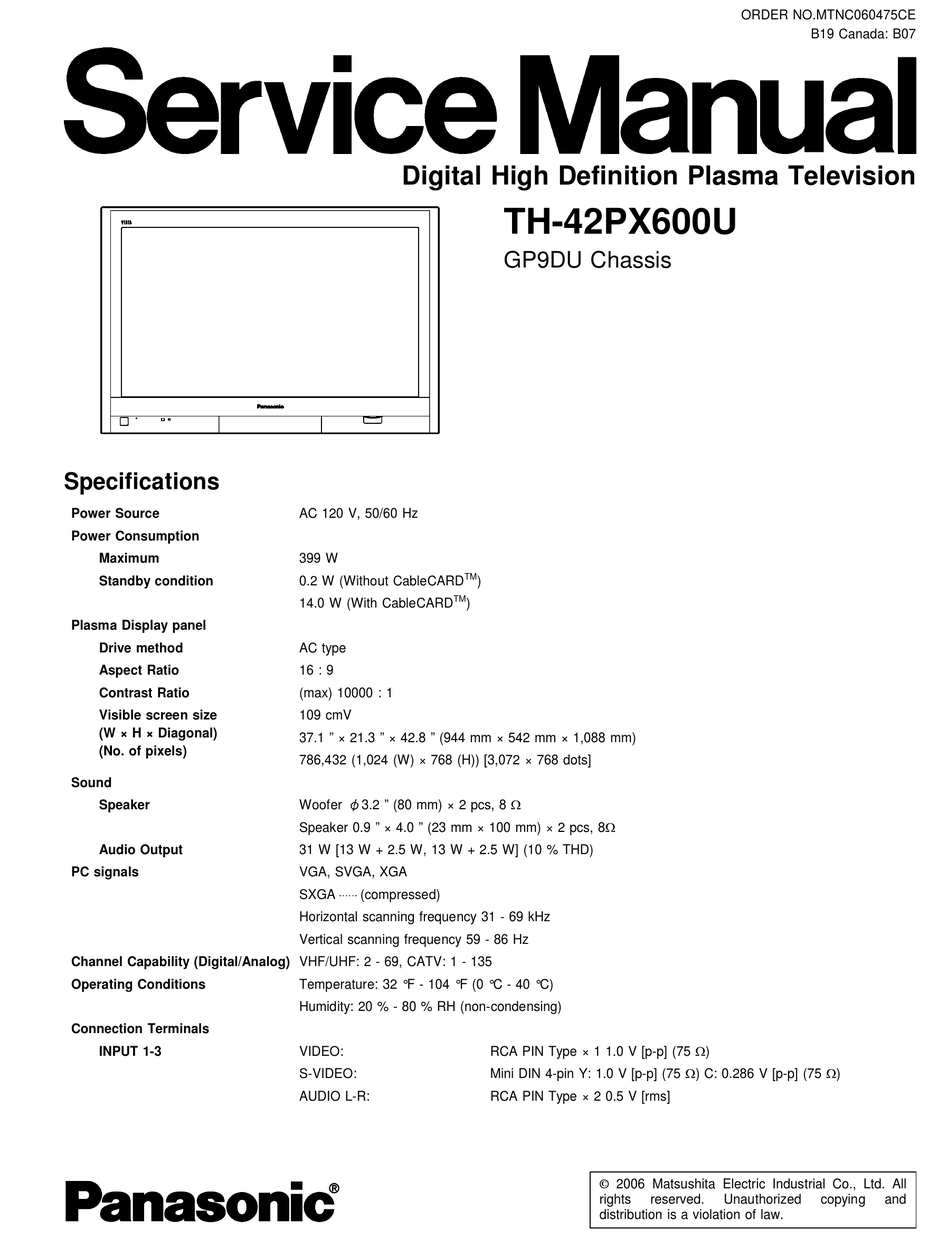

Panasonic TH-42PX600U Service Manual

Specifications
Power Source
Power Consumption
Maximum
Standby condition
Plasma Display panel
Drive method
Aspect Ratio
Contrast Ratio
Visible screen size
(W × H × Diagonal)
(No. of pixels)
Sound
Speaker
Audio Output
PC signals
Channel Capability (Digital/Analog) VHF/UHF: 2 - 69, CATV: 1 - 135
Operating Conditions
Connection Terminals
INPUT 1-3
Digital High Definition Plasma Television
AC 120 V, 50/60 Hz
399 W
TM
0.2 W (Without CableCARD )
TM
14.0 W (With CableCARD )
AC type
16 : 9
(max) 10000 : 1
109 cmV
37.1 " × 21.3 " × 42.8 " (944 mm × 542 mm × 1,088 mm)
786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]
3.2 " (80 mm) × 2 pcs, 8 W
Woofer
Speaker 0.9 " × 4.0 " (23 mm × 100 mm) × 2 pcs, 8W
31 W [13 W + 2.5 W, 13 W + 2.5 W] (10 % THD)
VGA, SVGA, XGA
SXGA (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Temperature: 32 °F - 104 °F (0 °C - 40 °C)
Humidity: 20 % - 80 % RH (non-condensing)
VIDEO:
S-VIDEO:
AUDIO L-R:
TH-42PX600U
GP9DU Chassis
RCA PIN Type × 1 1.0 V [p-p] (75 W)
Mini DIN 4-pin Y: 1.0 V [p-p] (75 W) C: 0.286 V [p-p] (75 W)
RCA PIN Type × 2 0.5 V [rms]
