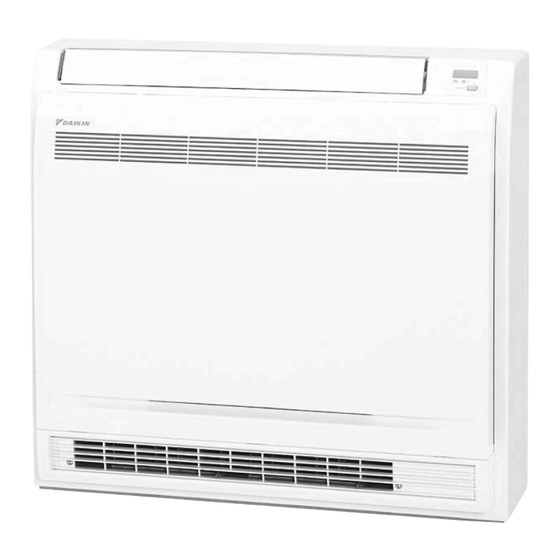

- Page 1 Si06-962 REMOVAL PROCEDURE S E R V I C E M A N U A L 6.0/7.1 kW Class Indoor Unit Inverter Floor Standing Type...
- Page 2 Service Manual Removal Procedure Indoor Unit Heat Pump FVXS60HVMA FVXS71HVMA...
-
Page 3: Table Of Contents
Si06-962 Table of Contents 1. Removal of Air Filter / Front Panel / Front Grille ........2 2. Removal of Horizontal Blade..............6 3. Removal of Electrical Box ...............7 4. Removal of PCBs..................11 5. Removal of Vertical Blades ..............17 6. Removal of Indoor Heat Exchanger ............21 7. -
Page 4: Removal Of Air Filter / Front Panel / Front Grille
Removal of Air Filter / Front Panel / Front Grille Si06-962 1. Removal of Air Filter / Front Panel / Front Grille Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points... - Page 5 Si06-962 Removal of Air Filter / Front Panel / Front Grille Step Procedure Points Open the front panel. (R9694) Press the 2 hooks of the top of the air filter downward and unfasten them. (R9695) Pull the air filter up and When installing the air filter, remove it.
- Page 6 Removal of Air Filter / Front Panel / Front Grille Si06-962 Step Procedure Points Release the strings from the hooks. String (R14977) Release the 3 hooks of When installing the front the bottom of the front panel, catch the 3 hooks of panel and remove the the front grille and hitch the front panel.
- Page 7 Si06-962 Removal of Air Filter / Front Panel / Front Grille Step Procedure Points Pull the front grille and The main unit has 3 hooks remove it. on the upper part. When unfastening the hooks on the front grille, hold the front panel as shown below.
-
Page 8: Removal Of Horizontal Blade
Removal of Horizontal Blade Si06-962 2. Removal of Horizontal Blade Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Open the horizontal blade. Release the center shaft. -
Page 9: Removal Of Electrical Box
Si06-962 Removal of Electrical Box 3. Removal of Electrical Box Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Disconnect the connector [S49] and release the harness from the 6 hooks. - Page 10 Removal of Electrical Box Si06-962 Step Procedure Points (R9708) When reassembling, make sure to fit the hook. (R9707) To detach the connection wires, remove the screw from the wiring fixture and remove the 4 screws from the terminal board. Terminal board Wiring fixture (R9709) Removal Procedure...
- Page 11 Si06-962 Removal of Electrical Box Step Procedure Points Pull the indoor heat Be careful not to lose the clip exchanger thermistor for the thermistor. out. Indoor heat exchanger thermistor (R14979) Remove the 3 screws and release the earth wires. Earth wire (R14980) Disconnect the [S1] : fan motor...
- Page 12 Removal of Electrical Box Si06-962 Step Procedure Points Remove the screw. (R9713) Pull the electrical box out. Electrical (R9714) Removal Procedure...
-
Page 13: Removal Of Pcbs
Si06-962 Removal of PCBs 4. Removal of PCBs Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. Remove of the shield plate. Pull out the earth wire from the terminal board. - Page 14 Removal of PCBs Si06-962 Step Procedure Points Detach the clamp. Clamp (R9718) 2. Remove the service PCB. Unfasten the left hook first. Lamp cover Unfasten the 2 hooks of the lamp cover. (R14981) Display PCB Service PCB (R14982) Removal Procedure...
- Page 15 Si06-962 Removal of PCBs Step Procedure Points Unfasten the 2 hooks of the service PCB. Hook Service PCB (R14983) Disconnect the connector [S27] and remove the service PCB. [S27] (R6793) 3. Remove the display PCB. Unfasten the 2 hooks of the display PCB. Hook (R14753) Disconnect the...
- Page 16 Removal of PCBs Si06-962 Step Procedure Points 4. Remove the control PCB. Pull all the terminals out from the terminal board. (R9723) Remove the 2 screws. Screw Screw (R6800) Remove the control PCB. (R6801) Removal Procedure...
- Page 17 Si06-962 Removal of PCBs Step Procedure Points Cut the clamp. (R9724) Disconnect the [S26]: service PCB connectors [S26] [S46] [S46]: display PCB [S48]. [S48]: sensor PCB [S48] [S26] [S46] (R9725) [S48] [S46] [S1] [S41] [S42] [S26] (R14984) Removal Procedure...
- Page 18 Removal of PCBs Si06-962 Step Procedure Points 5. Remove the sensor PCB. Unfasten the 2 hooks and remove the sensor PCB ASSY from the drip proof cover. Drip proof cover Sensor PCB ASSY (R9719) Lift up and remove the sensor PCB. Sensor PCB (R14985) Removal Procedure...
-
Page 19: Removal Of Vertical Blades
Si06-962 Removal of Vertical Blades 5. Removal of Vertical Blades Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. Remove the vertical blade (upper). Air outlet ASSY Remove the 2 screws and remove the air outlet ASSY. - Page 20 Removal of Vertical Blades Si06-962 Step Procedure Points 2. Remove the vertical blade Be careful not to wet the (lower). floor with drained water. Remove the drain hose Hook and release the harness of the lower air outlet motor from the hook. (R15004) Drain hose Release the harness...
- Page 21 Si06-962 Removal of Vertical Blades Step Procedure Points Remove the screw and remove the swing motor cover (1). Lower air outlet motor Motor cover (1) (R14987) Remove the 2 screws, and remove the lower air outlet motor with the motor cover (2). Motor cover (2) (R14988) Release the...
- Page 22 Removal of Vertical Blades Si06-962 Step Procedure Points Remove the lower air outlet motor and disconnect the connector. (R9736) Remove the damper. Damper (R9737) Remove the shaft. Shaft (R9738) 11 Unfasten the hooks 2 hooks at the front from the drain pan and 3 hooks at the back remove the vertical blades ASSY.
-
Page 23: Removal Of Indoor Heat Exchanger
Si06-962 Removal of Indoor Heat Exchanger 6. Removal of Indoor Heat Exchanger Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Make sure that the refrigerant gas is removed Caution after the pump down When removing or... - Page 24 Removal of Indoor Heat Exchanger Si06-962 Step Procedure Points Unfasten the 2 hooks on the right side and remove the indoor heat exchanger. Hook (R14990) Removal Procedure...
-
Page 25: Removal Of Fan Rotor / Fan Motor
Si06-962 Removal of Fan Rotor / Fan Motor 7. Removal of Fan Rotor / Fan Motor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. Remove the fan rotor. Release the wiring from the hook. - Page 26 Removal of Fan Rotor / Fan Motor Si06-962 Step Procedure Points 2. Remove the fan motor. Release the harness of the fan motor from the hook. (R9822) Unfasten the 2 hooks and remove the harness retainer. Harness retainer (R6824) Remove the screw to release the earth wire.
- Page 27 Revision History Month / Year Version Revised contents 02 / 2013 Si06-962 First edition...
