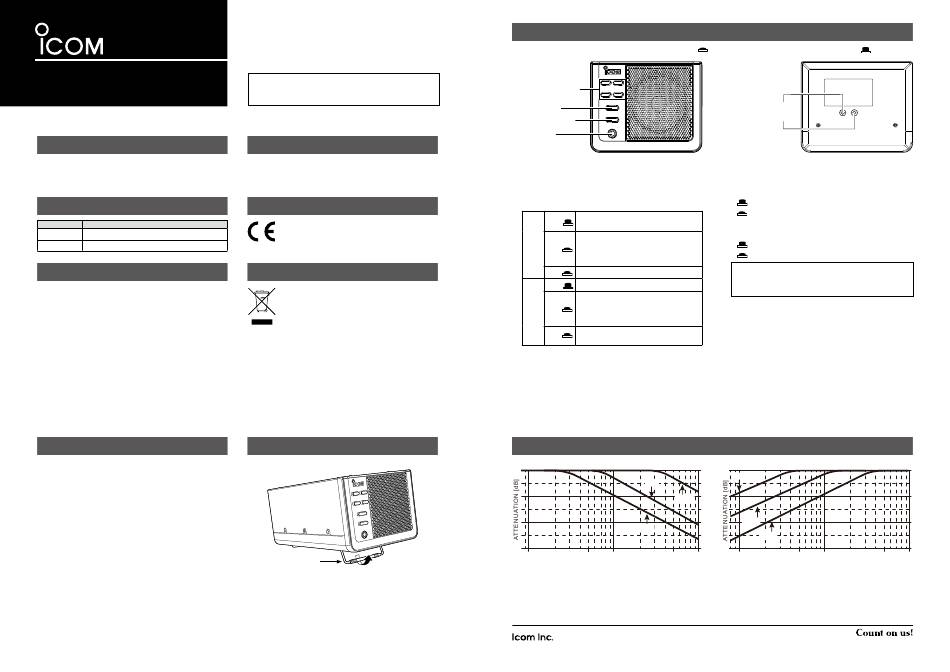

Icom SP-41 Instructions

INSTRUCTIONS
EXTERNAL SPEAKER
SP-41
FEATURES
・Best match for the IC-7610.
・Front panel HIGH/LOW (Audio tone) switches.
・Front panel mute switch, rear panel A and B input jacks.
EXPLICIT DEFINITIONS
WORD DEFINITION
R WARNING! Personal injury, fire hazard or electric shock may occur.
CAUTION Equipment damage may occur.
PRECAUTIONS
R WARNING! NEVER disassemble, modify or repair the SP-41.
This may result in an electrical shock, cause a fire or damage
the SP-41.
R WARNING! NEVER install the SP-41 in a wet place or outside.
This may result in an electrical shock, cause a fire or damage the
SP-41.
R WARNING! NEVER put the SP-41 in any unstable place
(such as on a slanted surface or vibrating place). This may cause
injury and/or damage to the SP-41.
CAUTION: DO NOT let metal, wire or other objects protrude
into the aperture of the speaker. This could damage the SP-41.
CAUTION: DO NOT place the SP-41 in excessively dusty
environments or in direct sunlight. This could damage the SP-41.
CAUTION: DO NOT use harsh solvents such as benzine or alcohol
to clean the SP-41, as they can damage the SP-41 surfaces. If the
SP-41 becomes dusty or dirty, wipe it clean with a dry, soft cloth.
SPECIFICATIONS
Impedance: 8 Ω
Rated Input Power: 5 W
Maximum Input Power: 7 W
Dimensions: 145 (W) × 118 (H) × 277 (D) mm,
(Projections not included) 5.7 (W) × 4.65 (H) × 10.9 (D) in.
Weight (without cables): Approximately 2.2 kg, 18.7 lb
All specifications are subjects to change without notice or
obligation.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries.
Thank you for choosing this Icom product. READ ALL
INSTRUCTIONS carefully and completely before using
this product.
SUPPLIED ACCESSORIES
Item Quantity
Mini plug cable (Approximately 1.5 m, 4.9 ft) ......................2
ABOUT CE
The SP-41 complies with the essential
requirements of the 2014/30/EU directive for
Electromagnetic Compatibility and the 2001/95/EC
directive for General Product Safety.
DISPOSAL
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you that
in the European Union, all electrical and electronic
products, batteries, and accumulators (rechargeable
batteries) must be taken to designated collection
locations at the end of their working life. Do not
dispose of these products as unsorted municipal waste.
Dispose of them according to the laws in your area.
FOR DESKTOP USE
Pull out the stand until it locks in place.
Stand
PANEL DESCRIPTION
Each switch is lockable, and is enabled when pressed in (

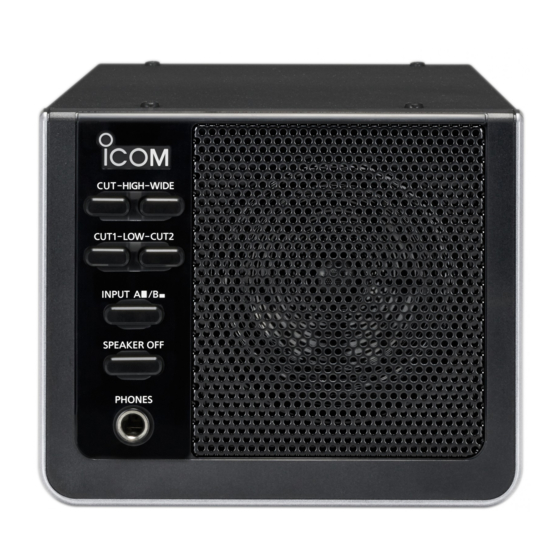

Front panel
q [HIGH-CUT/WIDE]
[LOW-CUT1/CUT2]
w [INPUT A/B]
e [SPEAKER OFF]
r [PHONES]
q TONE SELECT SWITCHES
[HIGH-CUT/WIDE], [LOW-CUT1/CUT2]
Set to your favorite audio tone with 4 switches.
 Refer to the following Frequency response characteristics.
Attenuates audio output frequencies of
OFF
approximately 800 Hz or higher (–3 dB/Oct).
Attenuates audio output frequencies of
approximately 400 Hz or higher (–3 dB/Oct).
HIGH
CUT
  W hen WIDE is pressed in, this switch is
disabled.
No effect on high audio output frequencies.
WIDE
No effect on low audio output frequencies.
OFF
Attenuates audio output frequencies of
approximately 900 Hz or lower (–3 dB/Oct).
CUT1
LOW  When CUT2 is pressed in, this switch is
disabled.
Attenuates audio output frequencies of
CUT2
approximately 2 kHz or lower (–3 dB/Oct).
FREQUENCY RESPONSE CHARACTERISTICS
HIGH Switch
OFF
WIDE
CUT
100 500 1k 5k 10k
FREQUENCY [Hz]
The graphs show the characteristics of the audio from the speaker.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
). Push again to unlock and release the switch ( ).
Rear panel
t [ SPEAKER INPUT A]
[SPEAKER INPUT B]
w AUDIO INPUT SELECTION SWITCH [INPUT A/B]
Push to select the [SPEAKER INPUT A] or [SPEAKER
INPUT B] jacks on the rear panel.
• : Selects the [SPEAKER INPUT A] jack.
: Selects the [SPEAKER INPUT B] jack.
•
e SPEAKER MUTE SWITCH [SPEAKER OFF]
Mutes the speaker or headphone audio output.
• : Outputs the audio.
• : Mutes the audio.
TIP : If no sound is heard from both the speaker and
headphones, confirm the [SPEAKER OFF] switch is
released.
r HEADPHONES JACK [PHONES] (6.35 mm: 1/4 in. (d))
Connect headphones (impedance: 4–32 Ω) to this
jack. The built-in speaker does not sound while the
[PHONES] jack is being used.
t AUDIO INPUT JACK (3.5 mm: 1/8 in. (d))
[SPEAKER INPUT A], [SPEAKER INPUT B]
Connect to a transceiver or a receiver's external speaker
jack using the supplied audio cable.
 The SP-41 can be connected to two transceivers or
receivers.
LOW Switch
OFF
CUT1
CUT2
100 500 1k 5k
FREQUENCY [Hz]
A7446D-1G Printed in Japan
© 2018 Icom Inc.
10k
